60W all-in-one solar street light with TUV for project
60W all-in-one solar street light with peak efficiency and diamond quality for square, farm, roadside. It is free maintenance that it doesn't need electricity and cables. We use high quality A grade monocrystalline solar panel, MPPT solar light controller, LED modules with heat sink and LiFePo4 battery
✓ 3600 LM max lamp lumen high brightness
✓ 100,000+ Hours long LED lifespan, with
professional heat dissipation design
✓ 25 Years long product lifespan
✓ 3,000+ Cycles life LiFePO4 batteries with inbuilt
Micro-BMS technologies
✓ 99.9% MPPT solar charge efficiency
✓ IP68 rated controller vs. IP66 rated electrical
compartment
✓ 5+ Days cloudy/rainy days autonomy
✓ IES Type 1~5 with professional optical designs
available to match different project requirements
✓ Flexible & Customized Working Modes with
timer and motion sensor by programming
SpeSpecification for 60W all-in-one solar street light

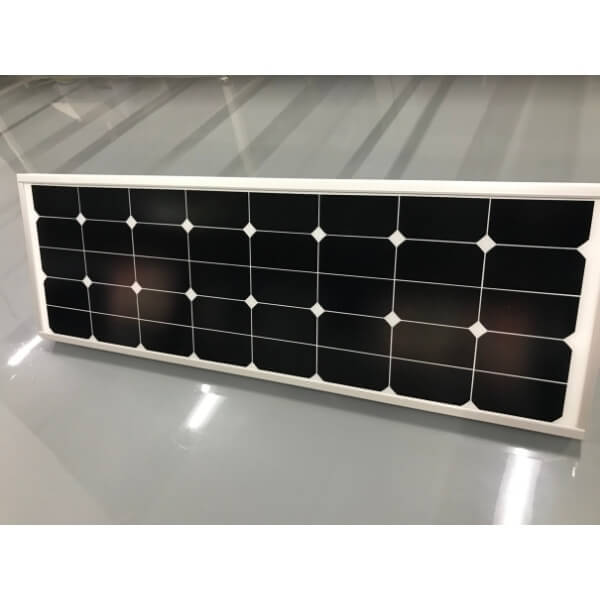

| Solar Panel | Power | 18V/80Wp （ High-Efficiency Monocrystalline） | ||
| Life-span | 25 years | |||
| Batteries | Capacity/Type | 12.8V/36AH (406.80WH) / LiFePO4 Lithium | ||
| Life-span | 8+ years (3,000 circles @ 60% DoD) | |||
| Controller | Type | MPPT / IP68/IoT Online Monitoring as Optional | ||
| Sensor | Microwave Radar (PIR & Timing as optional) | |||
| LED Light Source | Rated Power | 24V/ 60W (36LEDsx3 modules) | ||
| LED Brand | PHILIPS 3030 (LED Lumen: 195lm/W) | |||
| Lumens(LM) | 6000-7200lm | |||
| Life-span | 100,000 hours | |||
| Viewing Angle | 140° (Customized Angles & IES Types Available) | |||
| Full Charge Time | By Solar | 6 hours (STC: 1000W/㎡, 25℃ ) | ||
| Discharge Time | Dim Mode | >50 hours | ||
| Bright Mode | >10 hours | |||
| Working Temp. | -30℃~+80℃ | |||
| Color Temp. | Daylight White 5000K （ full-color temp. range 2700~6500K available) | |||
| Mounting Height/Brackets | 8~10m/ Available Brackets: Post Top/ Arm/ Arm Tube/ Pole Clamps | |||
| Space Between Lights | 30～35m | |||
| Materials | aluminum alloy | |||
| Certificate | CE / ROHS / IP66/ TÜV-SUD ISO9001/ ISO14001 | |||
| Warranty | 3 years OR 5 years | |||
| Packing & Weight | Light Body Size: | 1320*355*60mm | ||
| Net Weight | 26.0kg (Light: 22kg, bracket: 4kg) | |||
| Carton Type | Customary Carton/ OEM Acceptable | |||
| Carton size | Light: 1340*400*200mm / Brackets: 500*500*300 | |||
| Qty/ctn | 2 lights in 1 CTN/ 2 brackets in 1 CTN | |||
| GW. per Carton | 45.0kg+9.0kgs | |||
| PCS per Container | 20' GP | 300 | ||
| 40' HQ | 700 | |||
✓ Highway lighting
✓ Expressway lighting
✓ Main Street lighting
✓ Roadway lighting
✓ Public Areas lighting (squares, theme
parks, park lots….)
