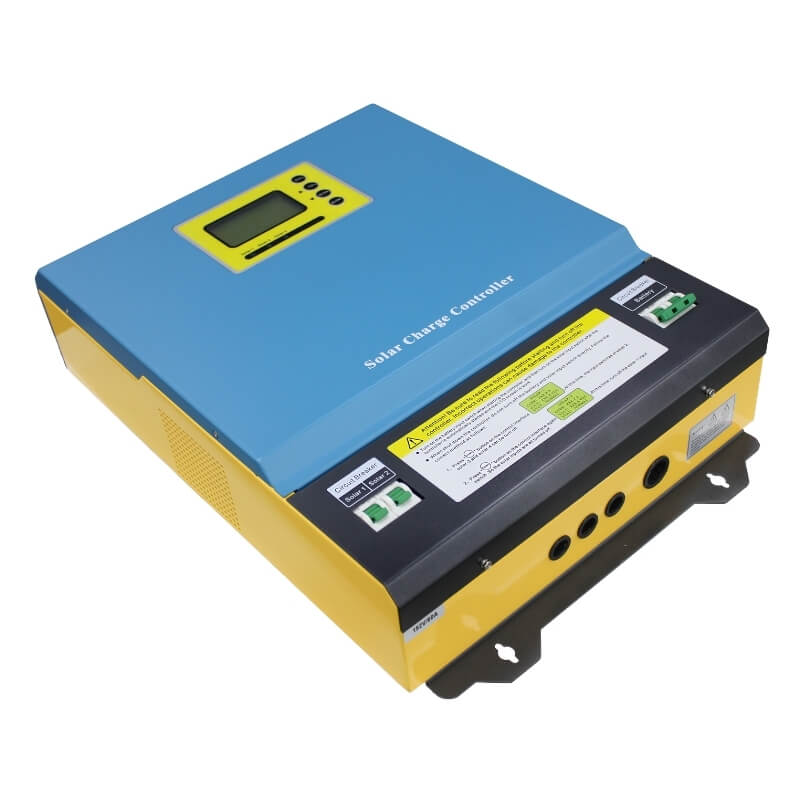

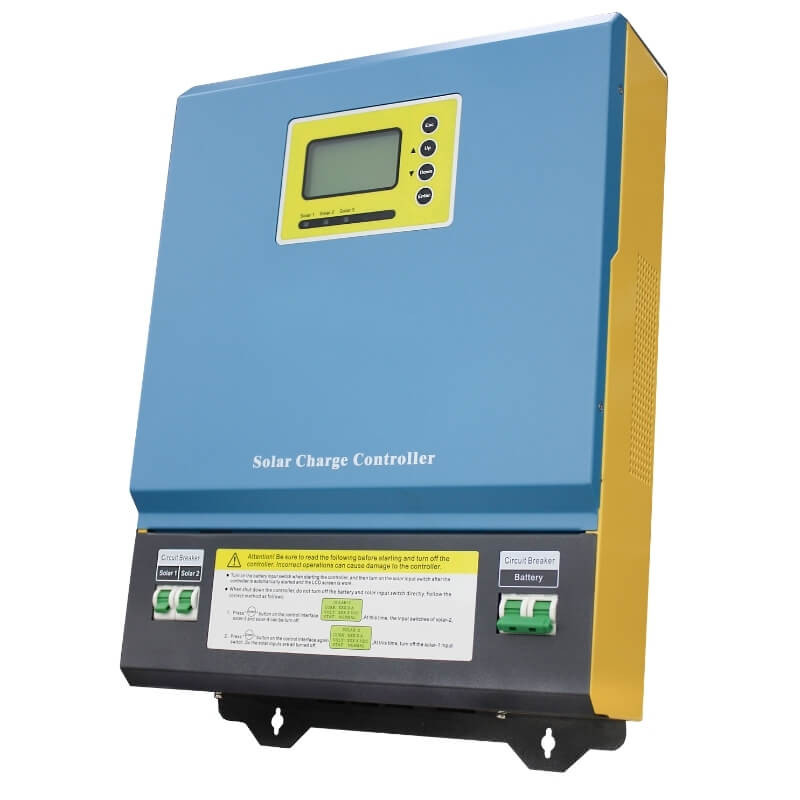

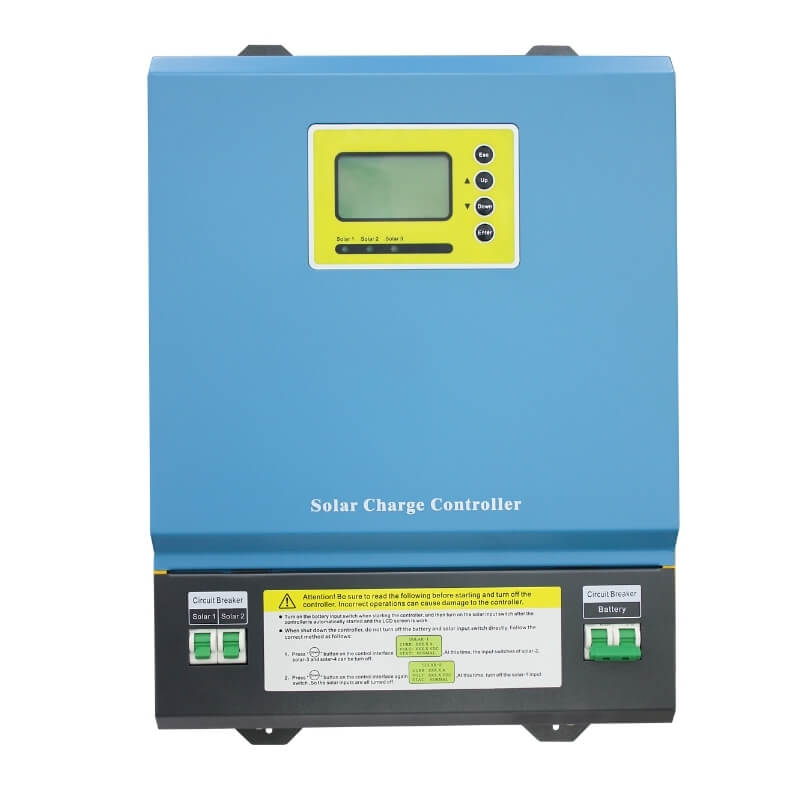

High voltage solar charge controller 96V 192V 384V 50A 60A 80A 100A

  • MCU intelligent control technology, high performance;
  • Optional for Chinese and  English menu, LCD+LED display mode, clearly to know the operation status;
  • Solar array and battery use the same positive system, multiple independent solar array input control;
  • Kinds of battery protect data sets;
  • Display battery voltage, battery charge current, internal chassis temperature, accumulate photovoltaic power generation function, accumulate battery power function, accumulate power consumption function, solar panel current for each string etc.
  • Complete protect: reverse battery protection, battery overcharge protection, internal chassis cooling control(more than 45℃ the fan will turn on), battery anti-reverse charge at night time function and alarm function;
  • Have history record and password protect function;
  • Have time display function;

 Technical Specification



Model: CP

192 (384) 50

192 (384) 75

192 (384) 100

Rated voltage

192V, X2/384V

Rated current

50

75

100



Input of the PV











Maximum power

10KWp, *2/384V

15KWp, *2/384V

20KWp, *2/384V

Maximum photovoltaic voltage

<350V, *2/384V

Number of inputs

2

3

4

Maximum current of each input

25A

Voltage of over-charge protection

222.4V, *2/384V (settable)

Voltage of over-charge recovery

219.2V, *2/384V (settable)



DC output









Rated output current

50A

Voltage of load over-voltage protection

248V, *2/384V DC (settable)

Voltage of load over-voltage recovery

240V, *2/384V DC

Voltage of load over-discharge recovery

203.2V, *2/384V DC (settable)

Voltage of load over-discharge protection

175V, *2/384V DC

Overall efficiency

>98%

Protection function

Charge over-current, over-voltage/DC output under-voltage, over-voltage, over-current

Starting temperature of the exhaust fan

>45°C

Ambient temperature for operation

0-40°C

Ambient temperature for storage

-15 to +50°C

Operation/storage conditions

0-90%(no condensation)

Wall-mounted type



Product dimensions L*W*H(mm)

389*320*98

417*360*118



Packing dimensions L*W*H(mm)

430*395*180

440*420*200



Net weight/gross weight(kg) 5.2/6.5 8.4/9.75
