HYBRID SOLAR INVERTERS

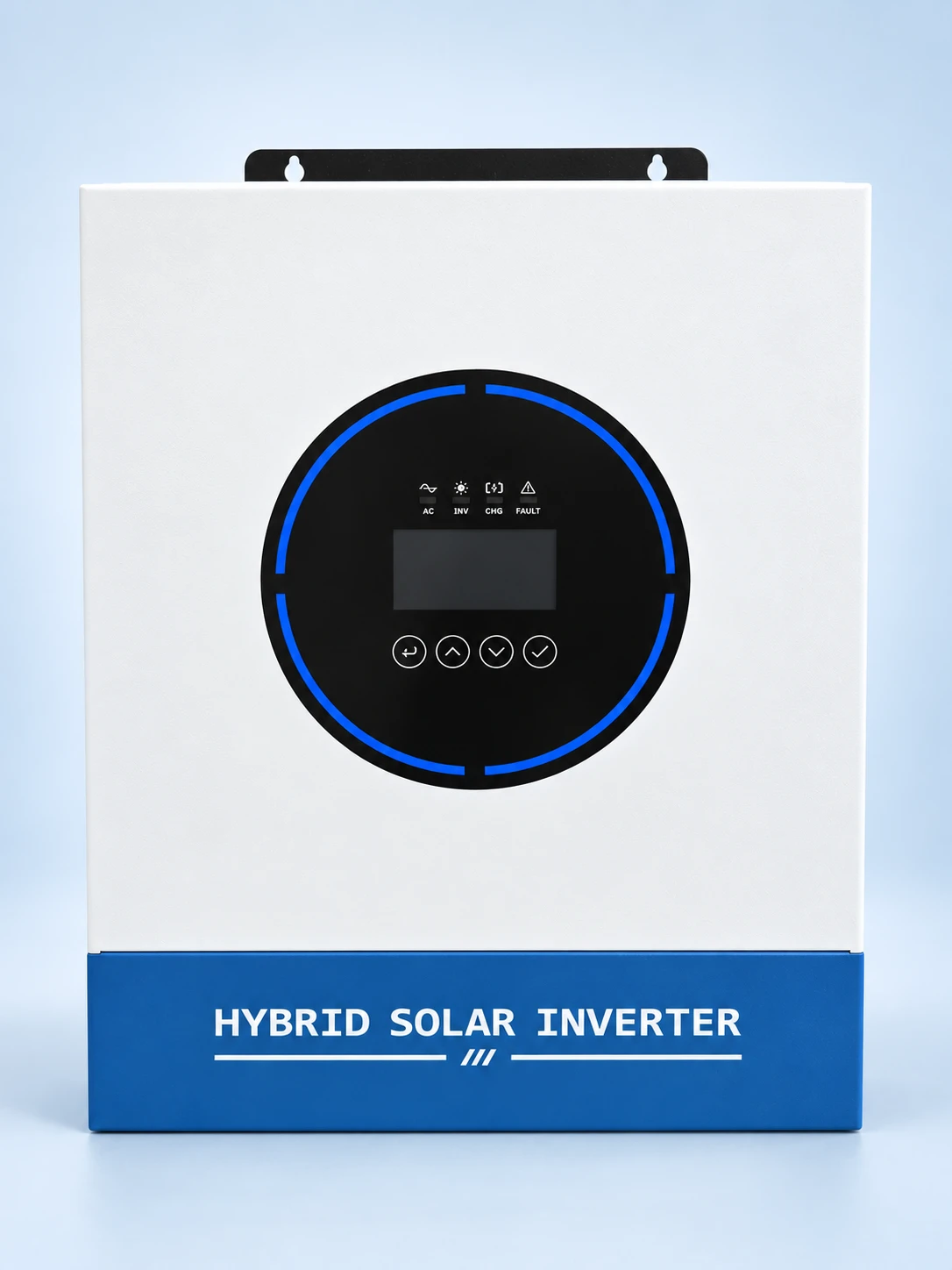

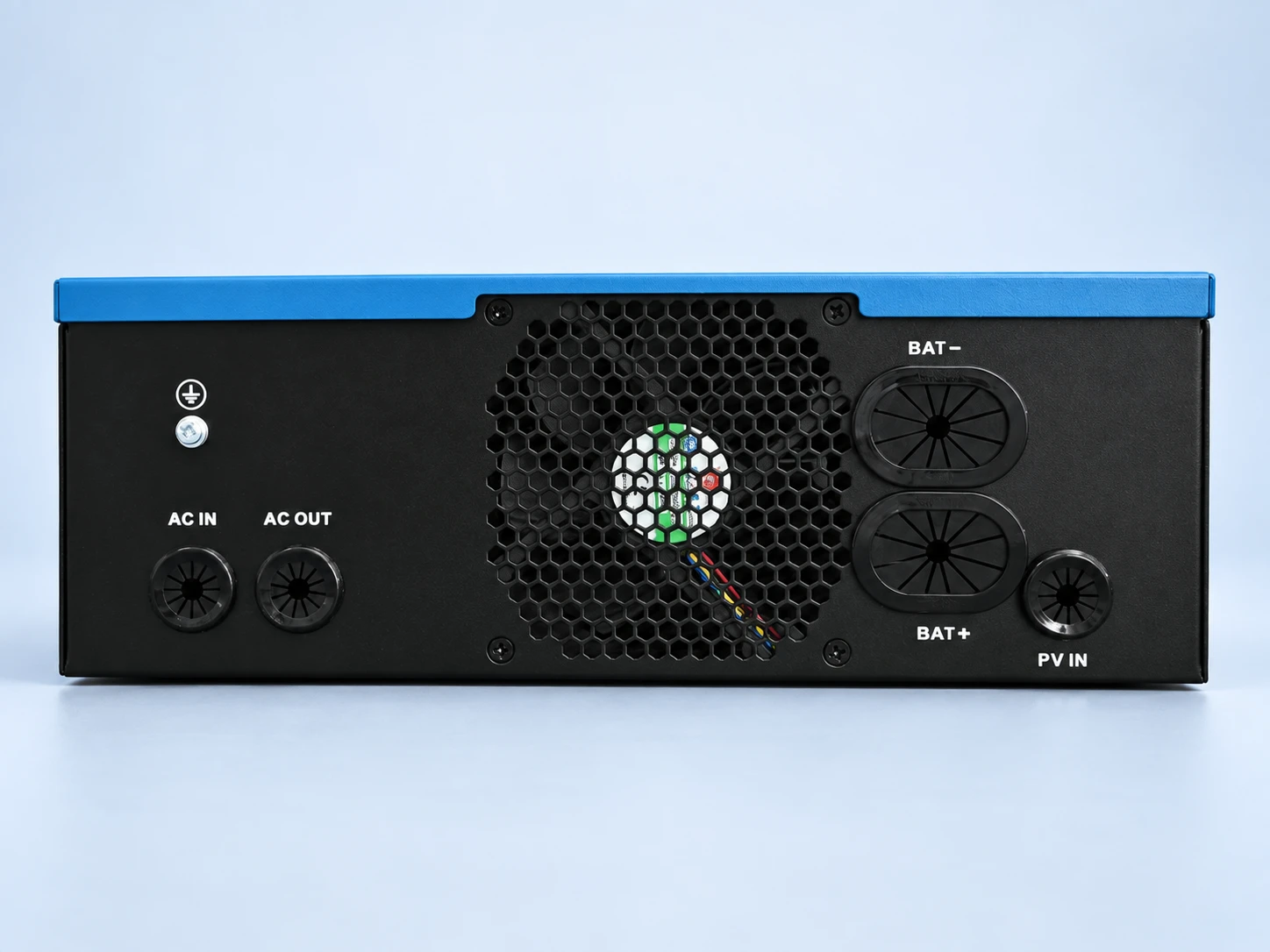

2.5kW 12V Hybrid Solar Inverter with 100A MPPT

Name: 2.5kW 12V Hybrid Solar Inverter with 100A MPPT
Brand: MILESOLAR

A compact 2.5kW hybrid solar inverter for small homes, cabins and backup-power systems. It combines a 30–400V MPPT input, 12V battery operation, pure sine wave output and flexible grid or generator support in one wall-mounted unit.

Key Benefits

100A Solar Charging

Built-in MPPT charging supports up to 100A solar charge current.

Wide PV Input Range

30–400VDC MPPT range enables flexible PV string design.

Dual AC Outputs

Separate outputs help prioritize critical and secondary loads.

Grid Feed-In Support

Supports surplus solar export to the utility grid where permitted.

Flexible Battery Support

Compatible with lithium and lead-acid batteries, with BMS communication support.

Lithium Battery Activation

Helps restart compatible lithium batteries after protection shutdown.

Detachable Dust Cover

Removable cover simplifies airflow cleaning and routine maintenance.

Optional WiFi Monitoring

Optional WiFi enables remote performance monitoring via app or web.

Available Models

Specification	12V-1.5KW	12V-2.5KW
DC Voltage	12V	12V
Rated Power	1.5KW	2.5KW

Technical Specifications

AC Input
Rated Input Voltage	208 / 220 / 230 / 240VAC; L + N + PE
Input Voltage Range	90–280VAC (APP / GEN mode); 170–264VAC (UPS mode)
Frequency	50 / 60Hz, auto adaptive
AC Output
Rated Output	2.5kVA / 2.5kW
Surge Power	4kVA
Output Voltage	208 / 220 / 230 / 240VAC
Power Factor	1.0
Output Frequency	50 / 60Hz
Transfer Time	10ms (APP / UPS); 20ms (GEN)
Waveform	Pure sine wave
Overload Capacity	Long-term operation at 102%–125% load; 10 seconds at 125%–250% load
Battery-Mode Efficiency	91% at 12VDC
Parallel Operation	Not available
PV & Charging
Solar Charger	MPPT
Max. PV Input Current / Power	18A / 3,000W
MPPT Operating Range	30–400VDC
Max. PV Open-Circuit Voltage	450VDC
Max. PV Charge Current	100A
Max. AC Charge Current	100A
Max. Combined Charge Current	100A
Battery
Rated Battery Voltage	12VDC
Max. Charging Current	100A
Max. Discharge Current	150A
Battery Type	Lithium / lead-acid
Interface & Monitoring
Display	LCD
Communication	RS485 / CAN / RS232; CT and meter optional
Monitoring	WiFi optional (built-in or external)
General
Ingress Protection	IP21
Operating Temperature	−10 to 60°C
Relative Humidity	5%–95%, non-condensing
Storage Temperature	−15 to 60°C
Net Weight	4.5kg
Dimensions (H × W × D)	375 × 290 × 100mm
Maximum Operating Altitude	Up to 4,000m; derating above 1,000m

How It Works

Applications

Home Solar & Backup

Stable solar and backup power for essential household loads.

Remote & Off-Grid Sites

Practical power for cabins, farms and locations with limited utility access.

Small Commercial Projects

Flexible power support for shops, offices and light commercial loads.

System Matching & Wholesale Support

MOQ: Model-specific

Sample and bulk-order quantities are confirmed according to the selected model and project requirements.

OEM / ODM: Available

Custom branding, product configuration, manuals and packaging support for B2B orders.

Lead Time: Order-specific

Delivery schedule is confirmed after model, quantity and customization review.

Warranty: Model-specific

Warranty coverage follows the selected model and approved quotation.

Documents: On Request

Datasheets and available certification documents are provided on request.

Technical Support: Included

Pre-sales model selection and after-sales technical assistance.

Related Models

FAQ

The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
