SOLAR PANELS

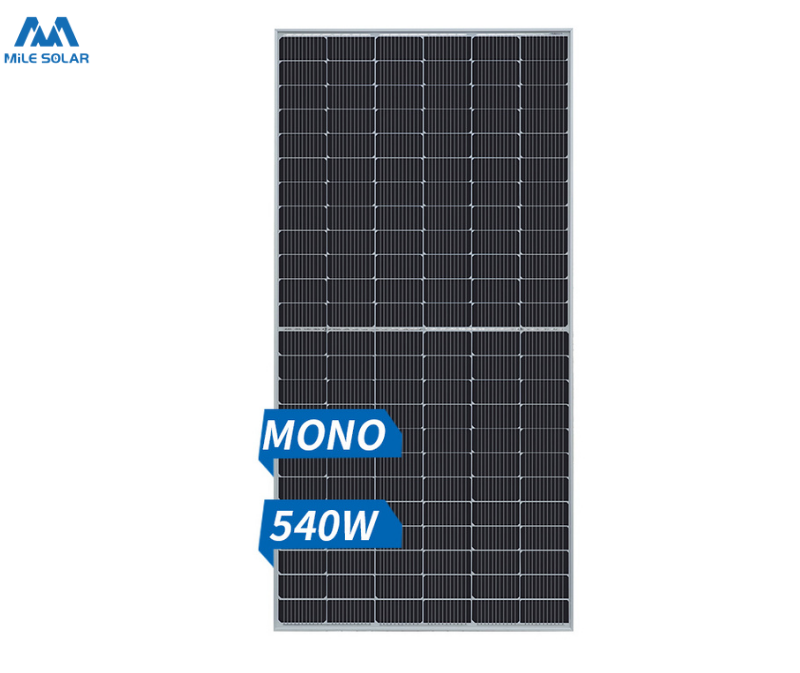

540W–550W Mono PERC Solar Panel
half cell mono PERC solar panel 540W with TUV certificate, A grade solar cell, higher efficiency, 10-year warranty for material and technology, 25-year linear power output warranty
Product Details
Video introduction for auto-production of half-Cut mono solar panels 400W to 550W from MILE SOLAR
| ELECTRICAL PARAMETERS AT STC | ||||||
| TYPE | JM-D525P-144M | JM-D530P-144M | JM-D535P-144M | JM-D540P-144M | JM-D545P-144M | JM-D550P-144M |
| Rated Maximum Power(Pmax) [W] | 525 | 530 | 535 | 540 | 545 | 550 |
| Open Circuit Voltage(Voc) [V] | 48.95 | 49.15 | 49.35 | 49.55 | 49.75 | 49.95 |
| Maximum Power Voltage(Vmp) [V] | 41.1 | 41.27 | 41.45 | 41.62 | 41.8 | 41.97 |
| Short Circuit Current(lsc) (A] | 13.67 | 13.74 | 13.82 | 13.89 | 13.97 | 14.05 |
| Maximum Power Current(lmp) [A] | 12.78 | 12.85 | 12.91 | 12.98 | 13.05 | 13.11 |
| Module Efficiency [%] | 20.30 | 20.50 | 20.70 | 20.90 | 21.10 | 21.30 |
| Power Tolerance | 0~+5W | |||||
| STC | Irradiance 1000W/m2, cell temperature 25℃, AM1.5G | |||||
| Remark | Electrical data in this catalog do not refer to a single module and they are not part of the offer. | |||||
| They only serve for comparison among different module types. | ||||||
Technical Specifications
| ELECTRICAL PARAMETERS AT STC | ||||||
| TYPE | JM-D525P-144M | JM-D530P-144M | JM-D535P-144M | JM-D540P-144M | JM-D545P-144M | JM-D550P-144M |
| Rated Maximum Power(Pmax) [W] | 525 | 530 | 535 | 540 | 545 | 550 |
| Open Circuit Voltage(Voc) [V] | 48.95 | 49.15 | 49.35 | 49.55 | 49.75 | 49.95 |
| Maximum Power Voltage(Vmp) [V] | 41.1 | 41.27 | 41.45 | 41.62 | 41.8 | 41.97 |
| Short Circuit Current(lsc) (A] | 13.67 | 13.74 | 13.82 | 13.89 | 13.97 | 14.05 |
| Maximum Power Current(lmp) [A] | 12.78 | 12.85 | 12.91 | 12.98 | 13.05 | 13.11 |
| Module Efficiency [%] | 20.30 | 20.50 | 20.70 | 20.90 | 21.10 | 21.30 |
| Power Tolerance | 0~+5W | |||||
| STC | Irradiance 1000W/m2, cell temperature 25℃, AM1.5G | |||||
| Remark | Electrical data in this catalog do not refer to a single module and they are not part of the offer. | |||||
| They only serve for comparison among different module types. | ||||||
Applications
Off-Grid Projects
Flexible solutions for remote and independent energy systems.
Commercial Projects
Product selection support for business and project requirements.
System Matching & Wholesale Support
| MOQ: Model-specific Sample and bulk-order quantity confirmed in quotation | OEM / ODM: Available Branding, configuration and packaging support |
| Lead Time: Order-specific Confirmed after model, quantity and customization review | Warranty: Model-specific Final warranty terms follow the approved quotation |
| Documents: On request Datasheet and available certification documents | Technical Support: Included Pre-sales selection and after-sales assistance |
Related Models
FAQ
The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
Yes. Branding, selected configurations and packaging customization can be discussed for qualified B2B orders.
MOQ and lead time depend on the selected model, quantity and customization. Please request a formal quotation.
Yes. Submit an inquiry with the required power, voltage and application, and our sales team will provide the matching technical document.
Yes. We can review your loads, battery voltage, PV array and backup requirements before recommending a configuration.
