Residential Energy Storage
Daily solar-energy storage and backup power for homes.
LEAD-ACID REPLACEMENT BATTERIES

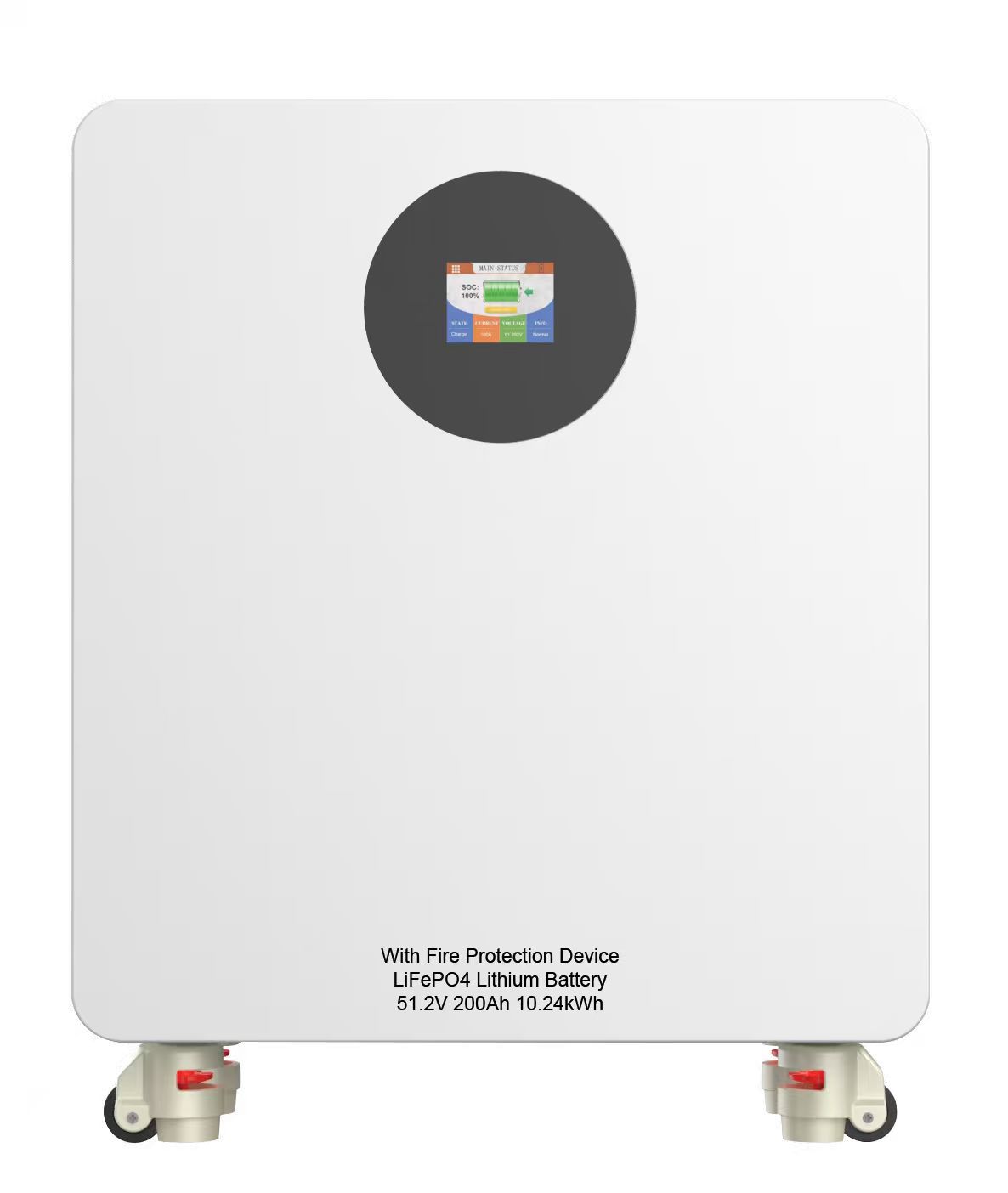

Low Voltage Lithium Battery 5600/5628 Series
5600 and 5628 Series low-voltage LiFePO4 batteries for lead-acid replacement, backup power and solar storage applications.
Technical Specifications
51.2V LiFePO4 Battery
Performance comparison for Models 5600 and 5628
| Specification | Model 5600 | Model 5628 |
|---|---|---|
| Battery Chemistry | LiFePO4 | |
| Nominal Voltage | 51.2V | |
| Nominal Capacity | 560Ah | 628Ah |
| Total Energy | 28,672Wh | 32,153Wh |
| Cell Configuration | 16S2P | |
| Charging Voltage | 57.6V | |
| End-of-discharge Voltage | 43.2V | |
| Standard Charge Current | 200A continuous | 200A continuous |
| Maximum Charge Current | 300A | 300A |
| Standard Discharge Current | 200A | 200A |
| Maximum Continuous Discharge Current | 300A | 300A |
| Monthly Self-discharge | ≤3% | |
| Communication Interfaces | RS232 RS485 Serial Port | |
| Operating Environment |
Temperature: −20°C to +60°C Relative humidity: ≤85% Operating altitude: ≤4,000m |
|
| Product Dimensions (L × W × H) | 760 × 760 × 400mm | 555 × 505 × 260mm |
| Net Weight | 252kg | 255kg |
| Installation | Floor-standing | |
| Cycle Life |
≥6,000 cycles 80% DOD at 35°C |
≥8,000 cycles 80% DOD at 35°C |
| Parallel Function | 000 | 000 |
Note: Specifications may be updated without prior notice. Please confirm the final configuration before ordering.
Applications
Off-Grid Energy Storage
Stored energy for remote homes, farms and independent power systems.
Commercial Storage
Scalable storage support for business and project-based applications.
System Matching & Wholesale Support
| MOQ: Model-specific Sample and bulk-order quantity confirmed in quotation | OEM / ODM: Available Branding, configuration and packaging support |
| Lead Time: Order-specific Confirmed after model, quantity and customization review | Warranty: Model-specific Final warranty terms follow the approved quotation |
| Documents: On request Datasheet and available certification documents | Technical Support: Included Pre-sales selection and after-sales assistance |
Related Models
Low Voltage Lithium Battery 2100/2200/2300 SeriesLiFePO4 Lead-Acid Replacement Battery
Low Voltage Lithium Battery 5100/5200/5300 SeriesLiFePO4 Lead-Acid Replacement Battery
Low Voltage Lithium Battery 5350/5500 SeriesLiFePO4 Lead-Acid Replacement Battery
Low Voltage LiFePO4 Lithium BatteryLiFePO4 Lead-Acid Replacement Battery
FAQ
The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
Yes. Branding, selected configurations and packaging customization can be discussed for qualified B2B orders.
MOQ and lead time depend on the selected model, quantity and customization. Please request a formal quotation.
Yes. Submit an inquiry with the required power, voltage and application, and our sales team will provide the matching technical document.
Yes. We can review your loads, battery voltage, PV array and backup requirements before recommending a configuration.
