Available Configurations
- DC Voltage
- 12V / 24V / 48V
- Rated Power
- 12KW / 7KW / 10KW / 5KW / 6KW / 4KW / 3.5KW / 3KW / 2KW / 1.5KW / 1KW
POWER INVERTER CHARGERS

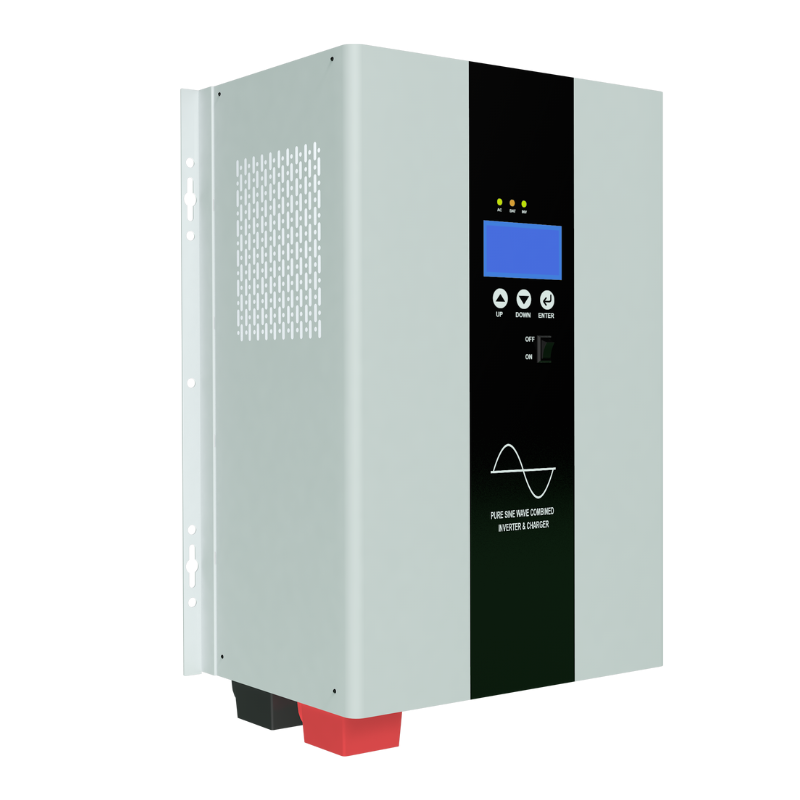

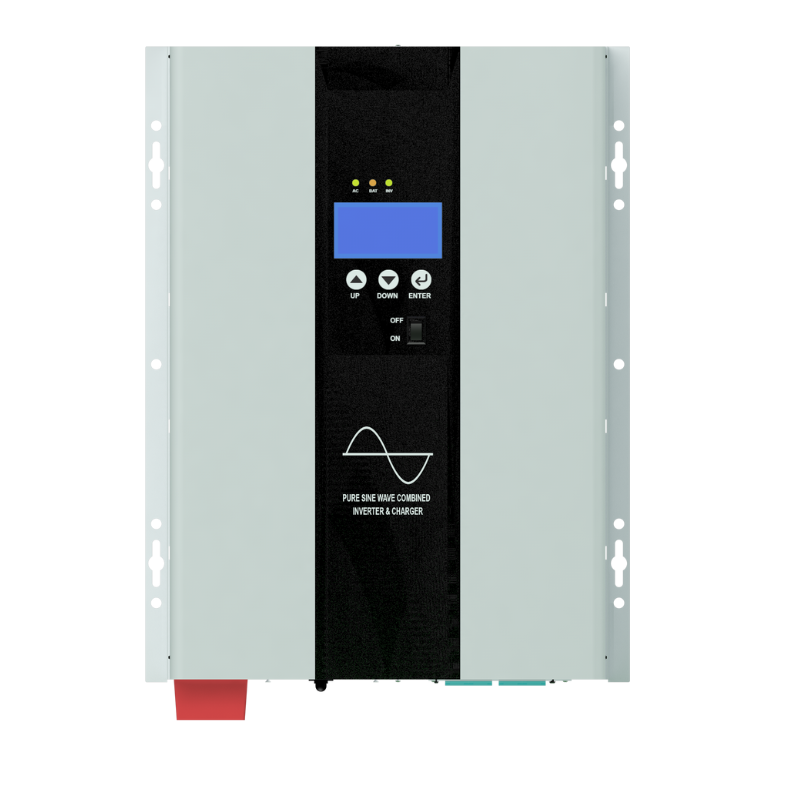

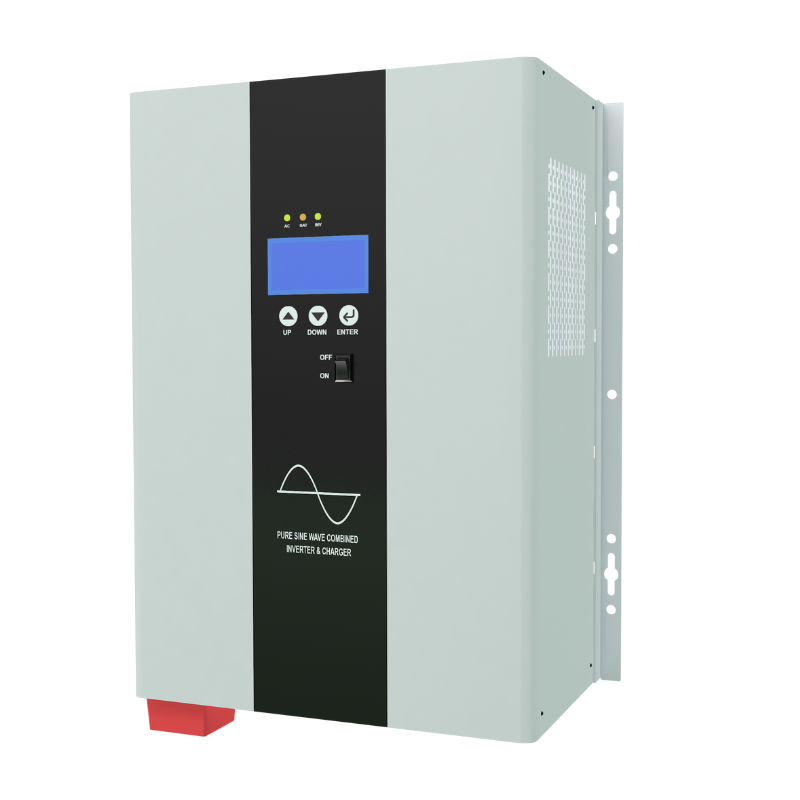

1kW–12kW WP Series Inverter Charger
WP series low-frequency transformer-based pure sine wave inverter charger 1KW to 12KW of reliable capacity. Tailor it to your specifications with DC input options of 12V, 24V, or 48V, and an optional battery charger ranging from 0A to 30A for AGM lead acid, Li-ion, LiFePo4 or customized batteries.
Product Details
Technical Datasheet for WP Series Power Inverter & Charger
| Model | WP-1KW | WP-1.5KW | WP-2KW | WP-3KW | WP-4KW | WP-5KW | WP-6KW | WP-7KW | WP-10KW | WP-12KW | |
| Input | Rated power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 7KW | 10KW | 12KW |
| Peak power | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | 21KW | 30KW | 36KW | |
| Mains voltage range | 220VAC: 165VAC - 275VAC 230VAC: 173VAC - 287VAC 110VAC: 83VAC - 137VAC 120VAC: 90VAC - 150VAC | ||||||||||
| Frequency range | 45 - 65Hz | ||||||||||
| Battery | Battery type | Lithium battery, lead acid battery, gel battery, customized battery | |||||||||
| DC voltage | 12V/24V | 24V/48V | 48V | ||||||||
| Input voltage range | 12V: 10.5V - 15VDC, 24V: 21V-30VDC, 48V: 42V - 60VDC | ||||||||||
| Floating charge set | 12.9V - 13.6V（12V ） | ||||||||||
| Low voltage recovery | 12V: 12.6-14.4VDC 24V: 25.2-28.8VDC 48V: 50.4-57.6VDC | ||||||||||
| Low voltage shutdown | 12V: 10VDC 24V: 20VDC 48V: 40VDC | ||||||||||
| overvoltage protection | 12V: 16.5VDC 24V: 33VDC 48V: 66V | ||||||||||
| Overvoltage alarm | 12V: 15VDC 24V: 30VDC 48V: 60VDC | ||||||||||
| Charger | AC charge current | 0A - 30A (optional) | |||||||||
| Output | Capable of starting electric motor | 0.5HP | 1HP | 1.5HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||
| Transfer time | ≤ 4ms | ||||||||||
| Temperature protection | When temperature ≥ 85℃, inverter alarm; when temperature ≥ 90℃, inverter shutdown automatically | ||||||||||
| Overload | Inverter automatically shutdown if overload exceeds 120% rated power within 10 seconds. | ||||||||||
| Waveform | Pure sine wave output | ||||||||||
| Frequency | 50/60Hz | ||||||||||
| Temperature | Operating temperature | -10℃~70℃ | |||||||||
| Thermal method | Cooling fan with intelligent control: ≥ 42 ℃， fan runs fastly; ＜42 ℃, fan runs slowly | ||||||||||
| Appearance | Product size(mm) L*W*H | 360*295*140 | 495*360*200 | 545*385*200 | 690*395*270 | ||||||
| Package size(mm) L*W*H | 452*322*202 | 550*392*270 | 602*419*270 | 740*430*330 | |||||||
| Net weight(kg) | 12 | 14 | 16.8 | 19 | 23 | 27 | 29 | 49.5 | 52 | 56 | |
| Gross weight(kg) | 15 | 17 | 18.5 | 21 | 25 | 29 | 31 | 54 | 56 | 58 | |
Available Models
| Specification | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 | Model 7 | Model 8 | Model 9 | Model 10 | Model 11 | Model 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC Voltage | 24V | 12V | 24V | 24V | 48V | 24V | 48V | 48V | 48V | 48V | 48V | 48V |
| Rated Power | 1KW | 1KW | 1.5KW | 2KW | 2KW | 3KW | 3KW | 5KW | 6KW | 7KW | 10KW | 12KW |
Technical Specifications
Product Information
- Product Type
- WP Series Inverter Chargers
- Customization
- OEM / ODM available
- MOQ & Lead Time
- Contact us for quotation
Available options are based on current product data. Final specifications must be confirmed in the approved datasheet and quotation.
How It Works

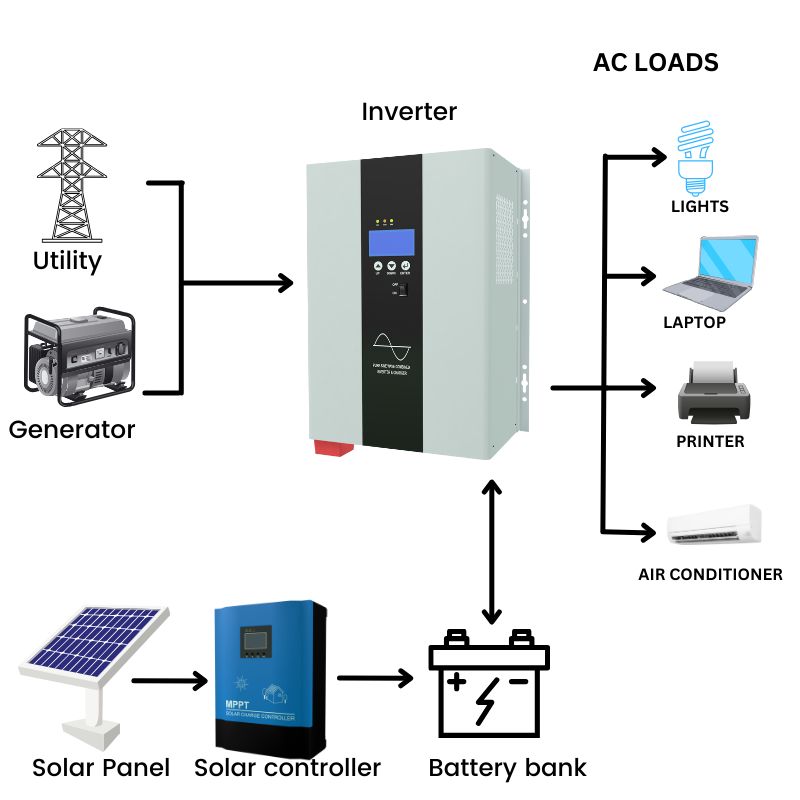

How the Off-Grid Inverter System Works
Solar energy is managed by the MPPT controller to charge the battery bank. The inverter converts stored DC energy into stable AC power for connected loads.
- Solar Panels
Generate DC solar energy - MPPT Controller
Optimizes charging from the PV array - Battery Bank
Stores energy for later use - AC Loads
Receive converted AC power
Utility / Generator
Optional backup input, subject to final configuration
Applications
Home Solar & Backup
Stable solar and backup power for essential household loads.
Remote & Off-Grid Sites
Practical power for cabins, farms and locations with limited utility access.
Small Commercial Projects
Flexible power support for shops, offices and light commercial loads.
System Matching & Wholesale Support
| MOQ: Model-specific Sample and bulk-order quantity confirmed in quotation | OEM / ODM: Available Branding, configuration and packaging support |
| Lead Time: Order-specific Confirmed after model, quantity and customization review | Warranty: Model-specific Final warranty terms follow the approved quotation |
| Documents: On request Datasheet and available certification documents | Technical Support: Included Pre-sales selection and after-sales assistance |
FAQ
The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
Yes. Branding, selected configurations and packaging customization can be discussed for qualified B2B orders.
MOQ and lead time depend on the selected model, quantity and customization. Please request a formal quotation.
Yes. Submit an inquiry with the required power, voltage and application, and our sales team will provide the matching technical document.
Yes. We can review your loads, battery voltage, PV array and backup requirements before recommending a configuration.
