SOLAR POWER SYSTEMS

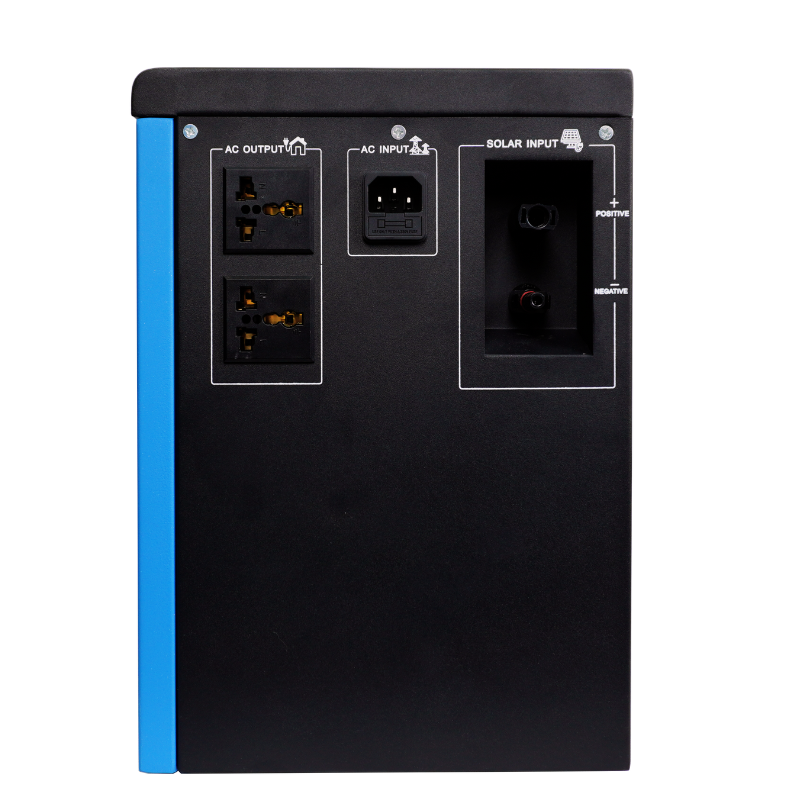

500W–1kW Portable LiFePO4 Solar Generator
500W 1000W all-in-one solar generator that combines a solar inverter, MPPT charge controller, and LiFePo4 lithium battery in one unit provides a complete portable power system for homes and businesses. OEM/ODM services provided. Good quality at a good price.
Product Details
Specifications for 500W 1000W portable solar generator
| Model | SG-500W | SG-1000W |
| Battery Voltage | 12V | 12V |
| Inverter | ||
| RATED POWER | 500W | 1000W |
| Input Voltage Range | 165VAC - 265VAC( 220VAC model) or 76VAC - 130VAC(110V model) |
|
| Input Frequency | 45-65Hz | |
| Output Voltage | 220VAC or customized (110VAC) | |
| Output Frequency | 50/60Hz | |
| Output Wave | Pure Sine Wave | |
|
Specification of Built-in LiFePo4 Lithium Battery |
500WH | 1000WH |
| Communication | RS485/WiFi(optional) | |
| Solar Input | ||
| Max. PV Power | 400W | |
| PV input voltage | 12VDC - 36VDC | |
| Rated Charge Current | 30A(PWM) | |
| DC Output | ||
| 5VDC USB Output | 2PCS /MAX 1A | |
| 12VDC Output Ports | 2PCS /MAX 2A | |
| Protections | ||
| Protections | Over-voltage, over-charge, over-load, short-circuit, over-temperature |
|
| Display | Digital LCD | |
| Size | 430*235*300mm | 430*235*355mm |
Technical Specifications
Available options are based on current product data. Final specifications must be confirmed in the approved datasheet and quotation.
Applications
Residential Energy Storage
Daily solar-energy storage and backup power for homes.
Off-Grid Energy Storage
Stored energy for remote homes, farms and independent power systems.
Commercial Storage
Scalable storage support for business and project-based applications.
System Matching & Wholesale Support
| MOQ: Model-specific Sample and bulk-order quantity confirmed in quotation | OEM / ODM: Available Branding, configuration and packaging support |
| Lead Time: Order-specific Confirmed after model, quantity and customization review | Warranty: Model-specific Final warranty terms follow the approved quotation |
| Documents: On request Datasheet and available certification documents | Technical Support: Included Pre-sales selection and after-sales assistance |
Related Models
540W–550W Mono PERC Solar PanelMonocrystalline Solar Panels
300W -1200W 12V 24V power inverter charger MI SeriesMI Series 300W - 1200W Power Inverter Charger
1kW–12kW Heavy-Duty Off-Grid Solar InverterOff-Grid Solar Inverters
80A–150A 48V/96V MPPT Solar Charge ControllerMPPT Solar Charge Controllers
FAQ
The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
Yes. Branding, selected configurations and packaging customization can be discussed for qualified B2B orders.
MOQ and lead time depend on the selected model, quantity and customization. Please request a formal quotation.
Yes. Submit an inquiry with the required power, voltage and application, and our sales team will provide the matching technical document.
Yes. We can review your loads, battery voltage, PV array and backup requirements before recommending a configuration.
