Available Configurations
- Capacity
- 350AH / 500AH
LEAD-ACID REPLACEMENT BATTERIES

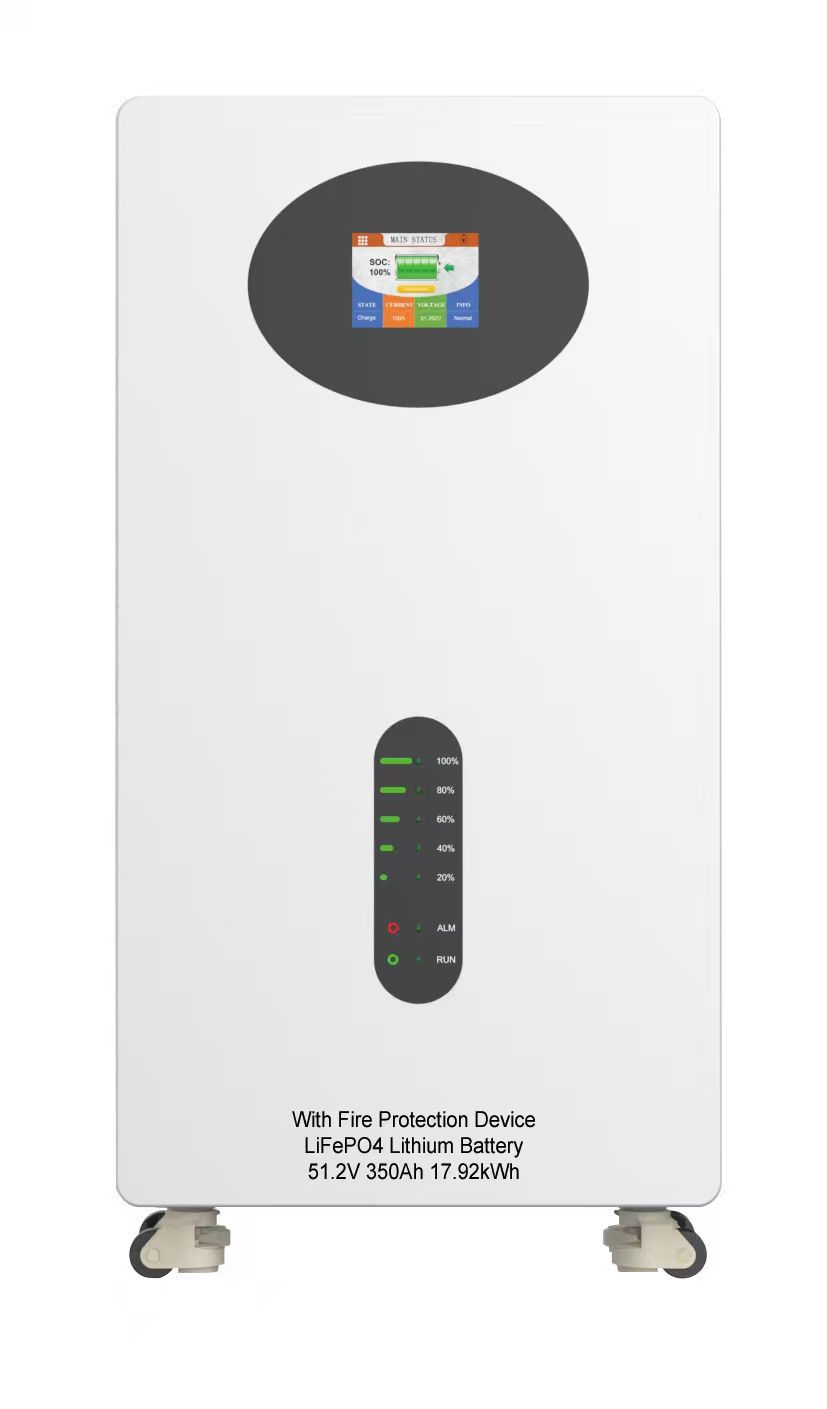

Low Voltage Lithium Battery 5350/5500 Series
5350 and 5500 Series low-voltage LiFePO4 batteries for lead-acid replacement, backup power and solar energy storage systems.
Product Details
| Model | 5300 | 5500 |
| Batter Type |
LiFePO4
|
|
|
Nominal Voltage
|
51.2V | |
|
Nominal Capacity
|
350AH | 500AH |
|
Total Energy
|
17920Wh | 25600Wh |
|
Combination
|
16S1P | 16S2P |
|
Charging Voltage
|
57.6V | |
|
Voltage at end of Discharge
|
43.2V
|
|
|
Standard charge current
|
Sustained current:157A | Sustained current:230A |
|
Maximum charge current
|
200A | 300A |
|
Standard discharge current
|
157A | 230A |
|
Max continuous discharge current
|
200A | 300A |
|
Self-discharge
|
≤3% month | |
|
Monitoring and control communications
|
RS232、RS485 Port: Serial port communication
|
|
|
Work environment
|
temperature：-20℃～﹢60℃；humidity：≤85%；
At an altitude of：≤4000m
|
|
|
Product Dimensions(mm)
|
600×400×200
|
555×505×260
|
|
Standard charge current(Kg)
|
123 | 180 |
|
Installation
|
Floor-model
|
|
|
Cycles life
|
≥8000cycles@80%DOD@35℃
|
≥6000cycles@80%DOD@35℃
|
|
Parallel Function
|
000
|
000 |
Available Models
| Specification | Model 1 | Model 2 |
|---|---|---|
| Capacity | 500AH | 350AH |
Technical Specifications
Product Information
- Product Type
- LiFePO4 Lead-Acid Replacement Battery
- Customization
- OEM / ODM available
- MOQ & Lead Time
- Contact us for quotation
Available options are based on current product data. Final specifications must be confirmed in the approved datasheet and quotation.
Applications
Residential Energy Storage
Daily solar-energy storage and backup power for homes.
Off-Grid Energy Storage
Stored energy for remote homes, farms and independent power systems.
Commercial Storage
Scalable storage support for business and project-based applications.
System Matching & Wholesale Support
| MOQ: Model-specific Sample and bulk-order quantity confirmed in quotation | OEM / ODM: Available Branding, configuration and packaging support |
| Lead Time: Order-specific Confirmed after model, quantity and customization review | Warranty: Model-specific Final warranty terms follow the approved quotation |
| Documents: On request Datasheet and available certification documents | Technical Support: Included Pre-sales selection and after-sales assistance |
Related Models
Low Voltage Lithium Battery 2100/2200/2300 SeriesLiFePO4 Lead-Acid Replacement Battery
Low Voltage Lithium Battery 5100/5200/5300 SeriesLiFePO4 Lead-Acid Replacement Battery
Low Voltage Lithium Battery 5600/5628 SeriesLiFePO4 Lead-Acid Replacement Battery
Low Voltage LiFePO4 Lithium BatteryLiFePO4 Lead-Acid Replacement Battery
FAQ
The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
Yes. Branding, selected configurations and packaging customization can be discussed for qualified B2B orders.
MOQ and lead time depend on the selected model, quantity and customization. Please request a formal quotation.
Yes. Submit an inquiry with the required power, voltage and application, and our sales team will provide the matching technical document.
Yes. We can review your loads, battery voltage, PV array and backup requirements before recommending a configuration.
