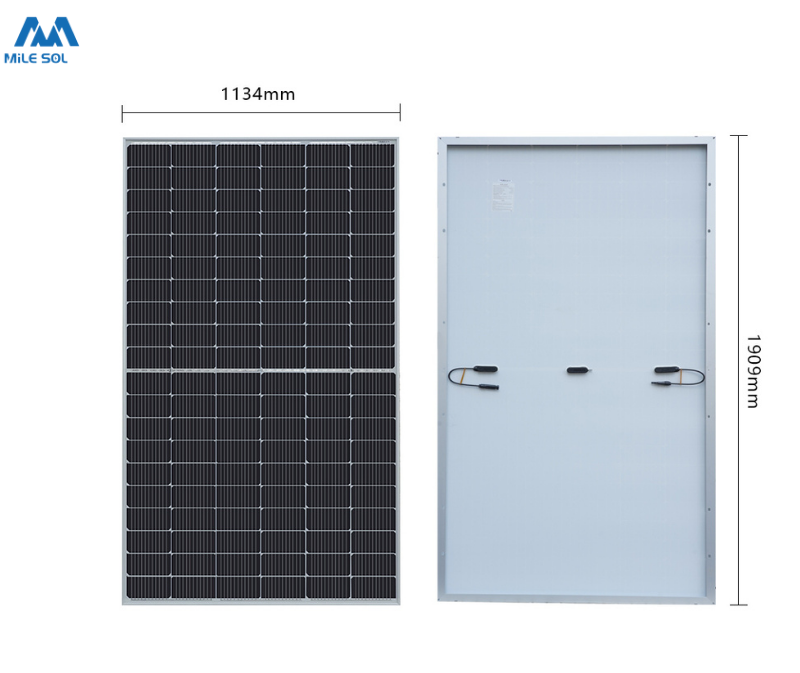

A grade half-cut mono PERC solar panel 430W 440W 450W with TUV for Europe

half cell mono PERC solar panel 450W with TUV certificate, A grade solar cell, higher efficiency, 10-year warranty for material and technology, 25-year linear power output warranty

  • QUALITY
    QUALITY
  • WARRANTY
    WARRANTY
  • RELIABILITY
    RELIABILITY
  • CUSTOMIZE
    CUSTOMIZE



ELECTRICAL PARAMETERS AT STC
TYPE JM-D430P-120M JM-D435P-120M JM-D440P-120M JM-D445P-120M JM-D450P-120M JM-D455P-120M
Rated Maximum Power(Pmax) [W] 430 435 440 445 450 445
Open Circuit Voltage(Voc) [V] 40.65 40.80  40.95 41.10  41.25 41.40
Maximum Power Voltage(Vmp) [V] 33.89 33.90  34.28 34.48 34.67 34.87
Short Circuit Current(lsc) (A] 13.59 13.67 13.74 13.82 13.89 13.97
Maximum Power Current(lmp) [A] 12.69 12.77 12.84 12.91 12.98 13.05
Module Efficiency [%] 19.90  20.10  20.30  20.60  20.80  21.10
Power Tolerance 0~+5W
STC Irradiance 1000W/m2, cell temperature 25, AM1.5G
Remark Electrical data in this catalog do not refer to a single module and they are not part of the offer.
They only serve for comparison among different module types.
