SOLAR CHARGE CONTROLLERS

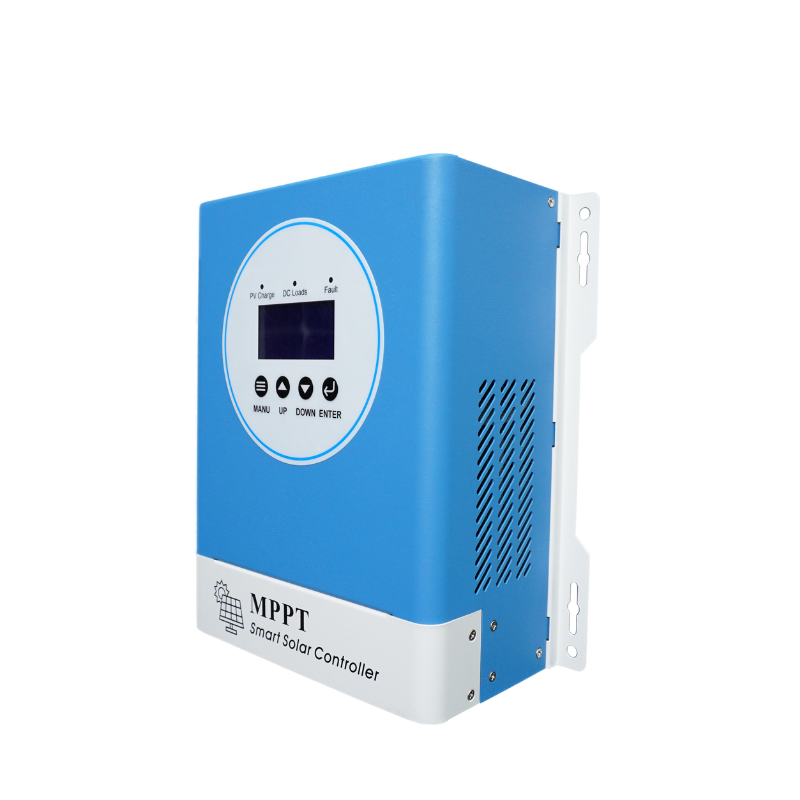

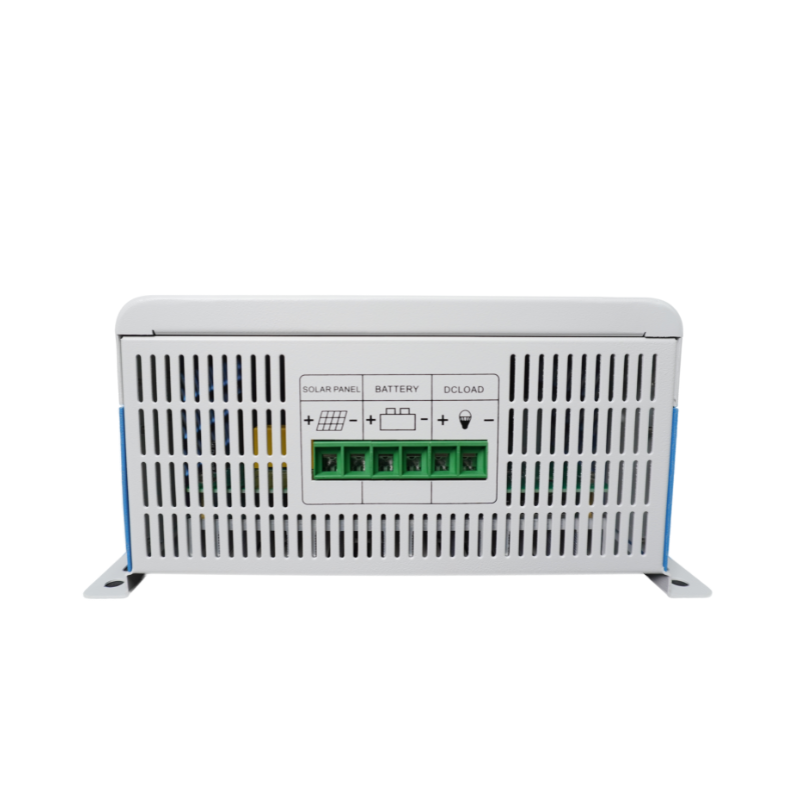

30A–60A MPPT Solar Charge Controller
30A MPPT solar charger controller 12V 24V 36V 48V auto, high efficiency up to 99%, more solar yield and charge battery fast
Product Details
30A 60A MPPT solar charge controller.
12/24/36/48V auto voltage;
PV max input voltage 150VDC;
Technical datasheet for MPPT solar controller
| Model | MC30 | MC60 | |
| Rated maximum charge current | 30A | 60A | |
| System voltage | 12V/24V/36V/48V Auto | ||
| Maximum PV input voltage | 150VDC | ||
| MPPT working voltage | 18V-130V(12V system); 36V-130V(24V system); 54V - 130V(36V system); 65V-130V(48V system) |
||
| Optimal PV range | 18V-130V(12V system); 36V-90V(24V system); 80V-120V(48V system) |
||
| PV input power | 12V system | 400W | 720W |
| 24V system | 720W | 1440W | |
| 36V system | 1080W | 2160W | |
| 48V system | 1440W | 2880W | |
| Battery type | lead acid AGM, Gel, deep cycle, LiFePo4, Li-ion lithium, or customized battery | ||
| High voltage of battery protection | 15V for single battery 12V | ||
| Boost recovery voltage | 13.8V for single battery 12V | ||
| Low voltage recovery | 12.5V for single battery 12V | ||
| Under-voltage shutdown | 9.9V | ||
| Charging type | MPPT automatic maximum power point tracking. | ||
| Charging mode | Three-stage: constant current (MPPT), constant voltage, floating charge. | ||
| Protection | Overvoltage/ overcurrent/ high temperature/ solar reverse connection | ||
| Cooling method | Intelligent cooling fan | ||
| IP level | IP20 | ||
| Environment | Temperature | -15~+50°C | |
| Humidity | <95% | ||
| Appearance | Product size | 250*200*110mm(L*W*H) | |
| Packing size | 265*215*125mm | ||
| Net weight | 2.6 kg | 3 kg | |
| Gross weight | 3 kg | 3.4 kg | |
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample order/trial order for you testing by 1 product or mixed solar products.
Q2: When will you deliver the goods?
A: 3-5 working days for sample order; 7-15 working days for quantity order after receiving the deposit payment.
Q3: Do you offer a guarantee for your solar products?
A: Yes, 18 months for inverter and inverter related products including solar generator, solar inverter. 2 years for solar lights.
Q4: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for inverter, solar inverter, MPPT solar controllers, solar generator and solar lights.
Please send you detailed request to our sales specialist for best quote.
Technical Specifications
| Model | MC30 | MC60 | |
| Rated maximum charge current | 30A | 60A | |
| System voltage | 12V/24V/36V/48V Auto | ||
| Maximum PV input voltage | 150VDC | ||
| MPPT working voltage | 18V-130V(12V system); 36V-130V(24V system); 54V - 130V(36V system); 65V-130V(48V system) |
||
| Optimal PV range | 18V-130V(12V system); 36V-90V(24V system); 80V-120V(48V system) |
||
| PV input power | 12V system | 400W | 720W |
| 24V system | 720W | 1440W | |
| 36V system | 1080W | 2160W | |
| 48V system | 1440W | 2880W | |
| Battery type | lead acid AGM, Gel, deep cycle, LiFePo4, Li-ion lithium, or customized battery | ||
| High voltage of battery protection | 15V for single battery 12V | ||
| Boost recovery voltage | 13.8V for single battery 12V | ||
| Low voltage recovery | 12.5V for single battery 12V | ||
| Under-voltage shutdown | 9.9V | ||
| Charging type | MPPT automatic maximum power point tracking. | ||
| Charging mode | Three-stage: constant current (MPPT), constant voltage, floating charge. | ||
| Protection | Overvoltage/ overcurrent/ high temperature/ solar reverse connection | ||
| Cooling method | Intelligent cooling fan | ||
| IP level | IP20 | ||
| Environment | Temperature | -15~+50°C | |
| Humidity | <95% | ||
| Appearance | Product size | 250*200*110mm(L*W*H) | |
| Packing size | 265*215*125mm | ||
| Net weight | 2.6 kg | 3 kg | |
| Gross weight | 3 kg | 3.4 kg | |
