HYBRID SOLAR INVERTERS

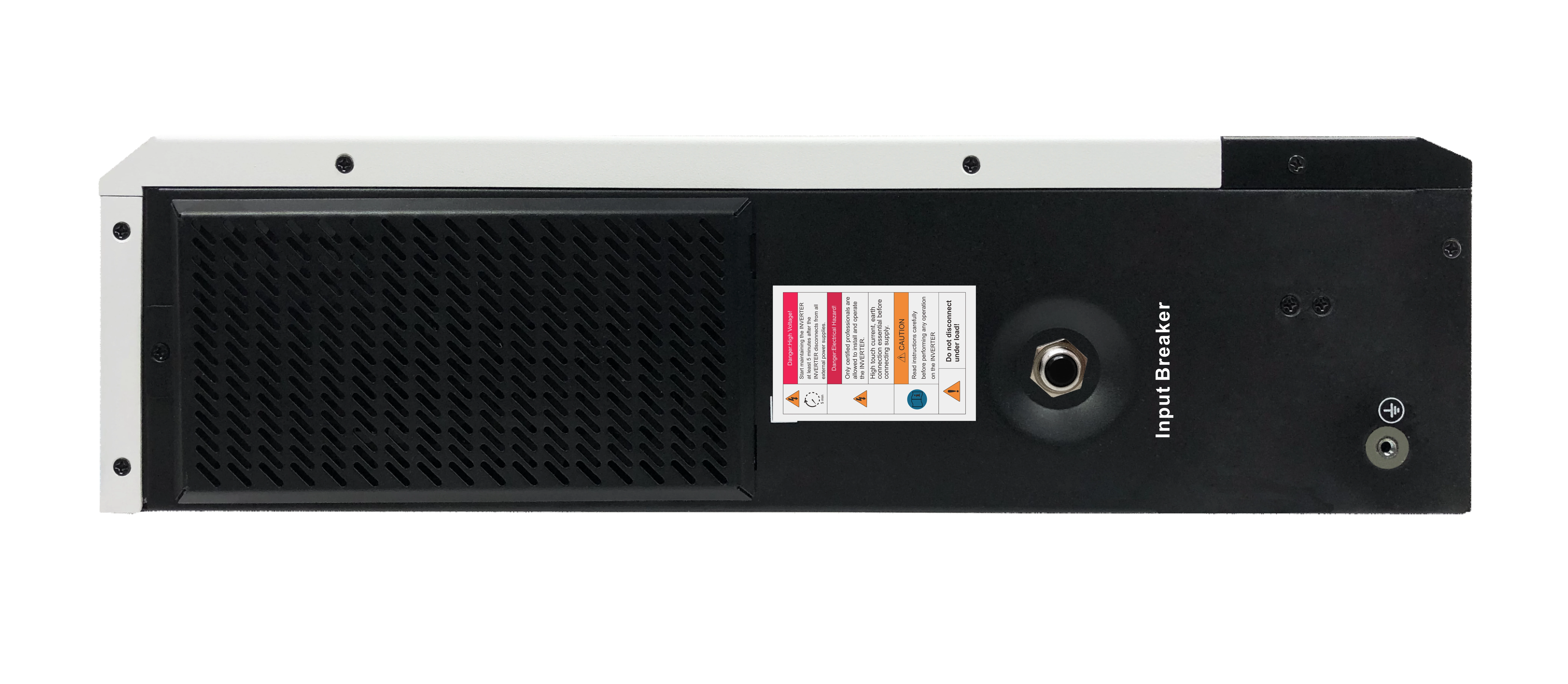

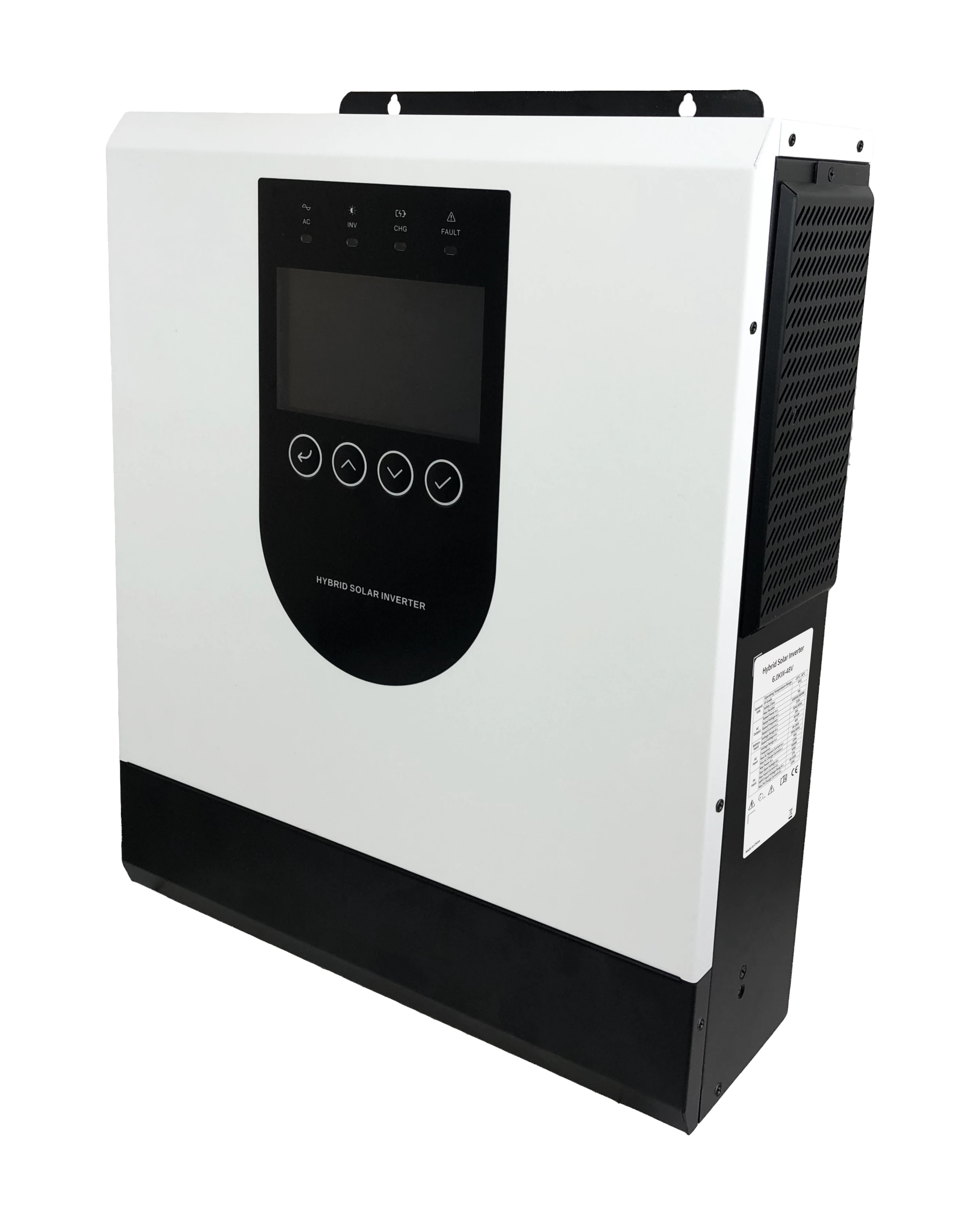

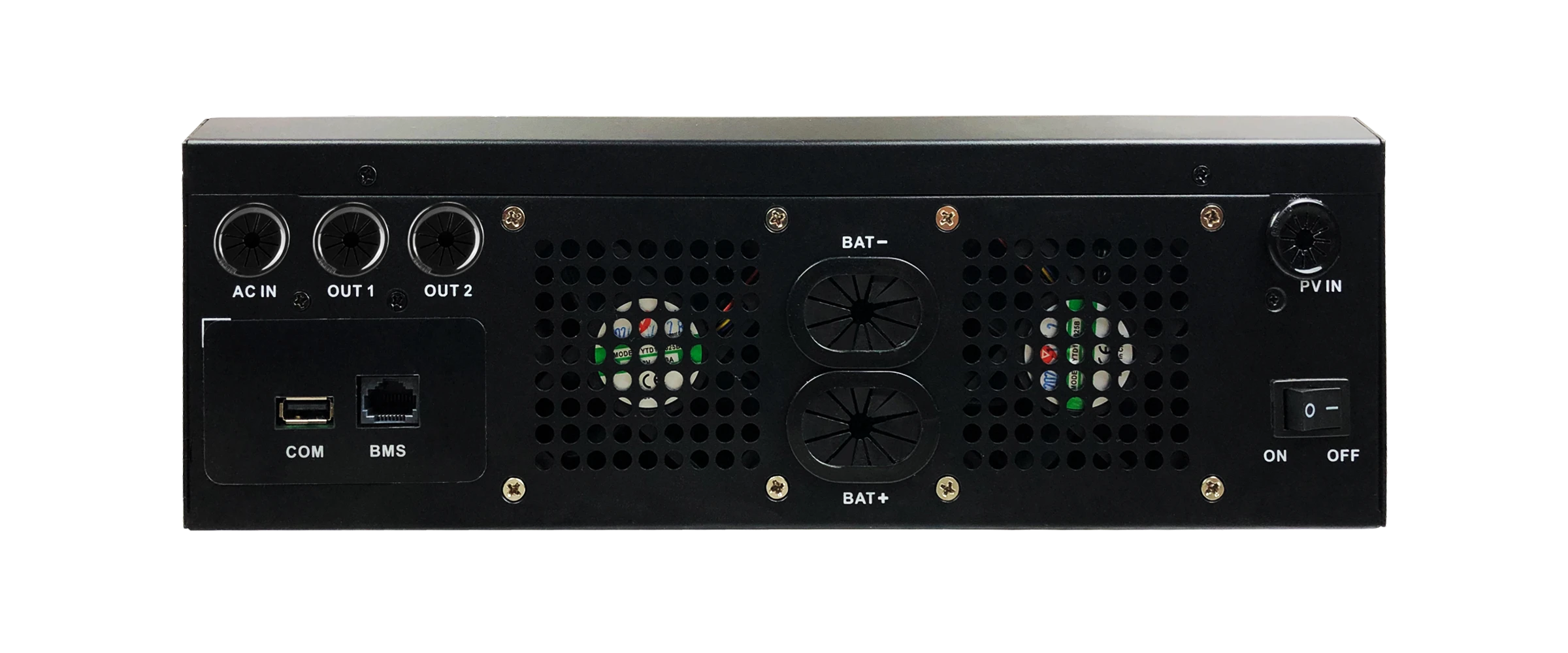

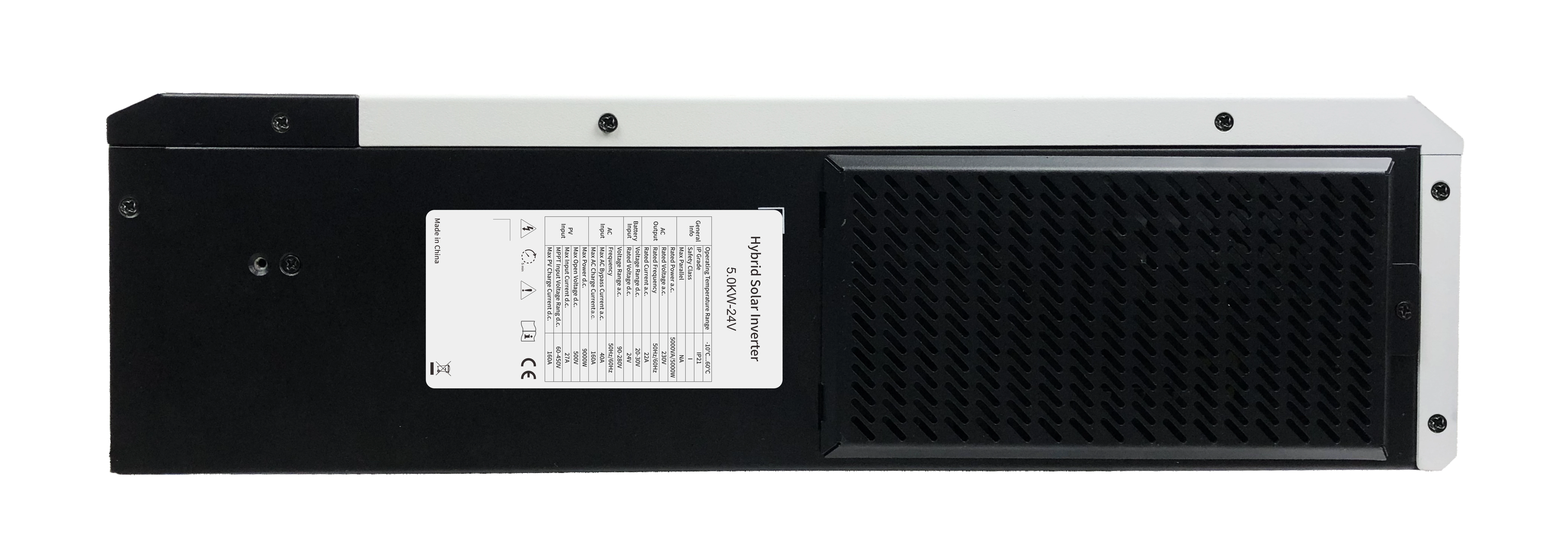

12kW 48V Hybrid Solar Inverter MPPT with wide PV 500V | can work without battery

Name: 12kW 48V Hybrid Solar Inverter MPPT with wide PV 500V | can work without battery
Brand: MILESOLAR

The 12KW 48V Hybrid Solar Inverter integrates solar, battery, grid, and generator power into one intelligent system. With a wide PV input range up to 500V, a high-performance MPPT controller (≈98% efficiency), and built-in WiFi monitoring, it delivers maximum solar utilization and reliable AC outpu…

Key Benefits

Solar Charging Icon

High-current solar charging enables faster battery replenishment and maximizes solar energy utilization.

Dual MPPT & Wide PV Range

Dual MPPT inputs with a wide 60–500V PV range support flexible panel configurations and efficient solar harvesting.

Battery & BMS Flexibility

Supports 48V lithium and lead-acid batteries, with compatible BMS communication and lithium battery activation.

Grid Feed-in & WiFi Monitoring

Supports grid feed-in and optional WiFi monitoring for convenient remote system and energy management.

Product Details

Available Models

Specification	48V-12KW	48V-6.5KW
DC Voltage	48V	48V
Rated Power	12KW	6.5KW

Technical Specifications

Model	12KW-48V
AC Input
Rated Input Voltage (VAC)	220 / 230 / 240; L + N + PE
Voltage Range (VAC)	90–280 ±3 (Normal Mode); 170–280 ±3 (UPS Mode)
Frequency (Hz)	50 / 60 (Auto Adaptive)
AC Output
Rated Capacity (kW)	12
Surge Power (kVA)	24
Voltage (VAC)	220 / 230 / 240
Power Factor (PF)	1
Frequency	50 / 60 Hz ±0.1%
Switch Time (ms)	10 (APP/UPS Mode) / 20 (GEN Mode)
Waveform	Pure Sine Wave
Overload Capacity (Battery Mode)	1 min @ 102%–125% Load; 10s @ >125% Load
Max. Efficiency (Battery Mode)	94% @ 48VDC
Parallel Quantity	N/A
Charger (PV / AC)
Solar Charger Type	Dual MPPTs
Max. PV Input Current / Input Power	Using One MPPT: 27A / 9kW Using Two MPPTs: 22.5A per MPPT / 15kW Total
MPPT Range @ Operating Voltage (VDC)	60–450
Max. PV Open Circuit Voltage (VDC)	500
Max. PV Charge Current (A)	160
Max. AC Charge Current (A)	160
Max. Charge Current (PV + AC) (A)	160
Battery
Rated Voltage (VDC)	48
Floating Charge Voltage (VDC)	54
Overcharge Protection (VDC)	61
Battery Type	Lithium and Lead-acid
Interface
HMI	LCD
Communication Interface	RS232 / RS485 / CAN
Monitoring	WiFi (Optional)
General Data
Ingress Protection	IP21
Operating Temperature	−10°C to +60°C
Relative Humidity	5%–95% (Non-condensing)
Storage Temperature	−15°C to +60°C
Net Weight (kg)	14
Dimensions (W × H × D)	525 × 435 × 138 mm
Max. Operating Altitude	4000 m (Derating Above 1000 m)

How It Works

Applications

Home Solar & Backup

Stable solar and backup power for essential household loads.

Remote & Off-Grid Sites

Practical power for cabins, farms and locations with limited utility access.

Small Commercial Projects

Flexible power support for shops, offices and light commercial loads.

System Matching & Wholesale Support

MOQ: Model-specific

Sample and bulk-order quantities are confirmed according to the selected model and project requirements.

OEM / ODM: Available

Custom branding, product configuration, manuals and packaging support for B2B orders.

Lead Time: Order-specific

Delivery schedule is confirmed after model, quantity and customization review.

Warranty: Model-specific

Warranty coverage follows the selected model and approved quotation.

Documents: On Request

Datasheets and available certification documents are provided on request.

Technical Support: Included

Pre-sales model selection and after-sales technical assistance.

Related Models

FAQ

The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
