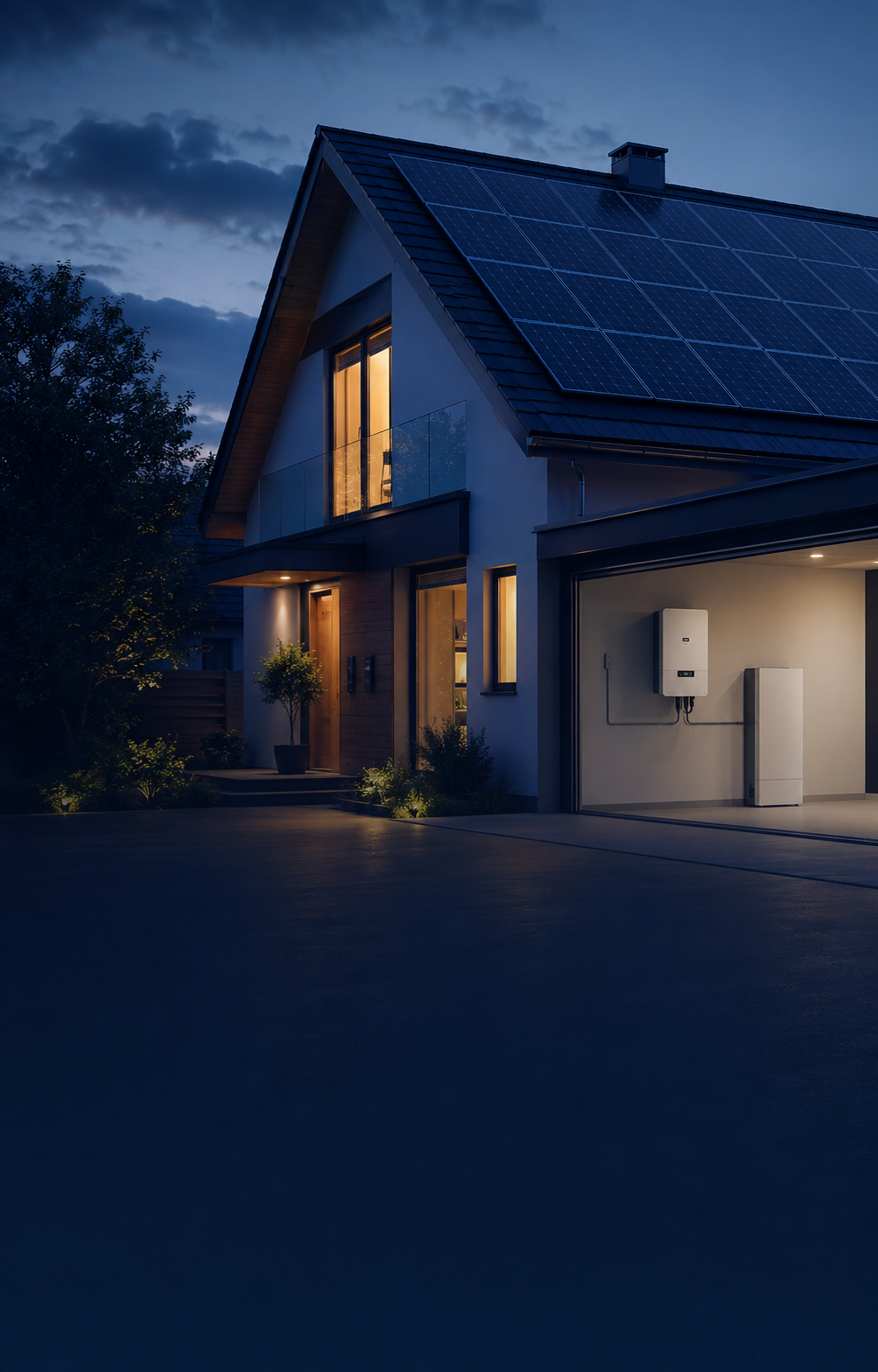

Home Solar & Backup
Stable solar and backup power for essential household loads.
HYBRID SOLAR INVERTERS
5.5kW 24V Hybrid Solar Inverter MPPT with wide PV 500V | can work without battery
The 6.5KW 48V Hybrid Solar Inverter integrates solar, battery, grid, and generator power into one intelligent system. With a wide PV input range up to 500V, a high-performance MPPT controller (≈98% efficiency), and built-in WiFi monitoring, it delivers maximum solar utilization and reliable AC outpu…
Product Details
Shot showing of this 4KW 24V hybrid solar inverter from outside to inside
Technical details of 4KW 24V hybrid solar inverter
|
Model |
SYP6.5KW-48V |
| AC Input | |
| Rated Input Voltage(VAC) | 208/220/230/240;L+N+PE |
| Voltage Range(VAC) | 90~280±3(normal mode);170~280±3(UPS mode) |
| Frequency(Hz) | 50/60(Auto Adaptive) |
| AC Output | |
| Rated Capacity(kW) | 6.5 |
| Surge Power(kVA) | 12 |
| Voltage(VAC) | 208/220/230/240 |
| Power Factor(PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time(ms) | 10(normal mode)/10(UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity(Battery Mode) | 1min@102%~120%;10S@>120%Load |
| Max.Efficiency(Battery Mode) | 94%@48VDC |
| Parallel Quantity | NA |
| Charger(PV/AC) | |
| Solar Charger Type | MPPT |
| Max PV input Current/Input Power | 27A/9000W |
| MPPT Range@Operating Voltage(VDC) | 60~450 |
| Max PV Open Circuit Voltage(VDC) | 500 |
| Max PV Charge Current(A) | 120 |
| Max AC Charge Current(A) | 120 |
| Max.Charge Current(PV+AC)(A) | 120 |
| Battery | |
| Rated Voltage(VDC) | 48 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| HMI | LCD |
| Interface | RS485/RS232/USB /Dry Contact |
| Monitoring | WiFi(Optional) |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10℃~50℃ |
| Relative Humidity | 5%～95%(Non-condensing) |
| Storage Temperature | -15℃~60℃ |
| Net Weight(kg) | 14 |
| Dimensions(W*H*D) | 410×336×115mm |
| Max.Operating Altitude |
4000m(Derating above 1000m) |
Available Models
| Specification | Model 1 | Model 2 |
|---|---|---|
| DC Voltage | 24V | 24V |
| Rated Power | 4KW | 5KW |
Technical Specifications
| Model | MPS PLUS 1K-24 | MPS PLUS 3K-24 | MPS PLUS 5K-48 |
| Rated Power | 1000VA/1000W | 3000VA/3000W | 5000VA/5000W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
||
| Frequency Range | 50Hz/60Hz (Auto-sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | ||
| Surge power | 2000VA | 6000VA | 10000VA |
| Efficiency(Peak) | 90-93% | 93% | 93% |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) |
||
| Wave form | Pure Sine Wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 24VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 33VDC | 60VDC |
| Maximum charge current | 10A/20A | 20A/30A | 10A/20A/30A/40A/50A/60A |
| SOLAR CHARGER | |||
| MAX.PV Array Power | 1000W | 1500W | 3000W/4000W |
| MPPT Range@ Operating Voltage | 30-66VDC | 30-115VDC | 60-115VDC |
| Maximum PV Array Open Circuit Voltage | 75VDC | 145VDC | 145VDC |
| Maximum Charging Current | 40A | 60A | 60A/80A |
| Maximum Efficiency | 98% | ||
| Standby power consumption | 2W | ||
| PHYSICAL | |||
| Dimension.D*W*H(mm) | 368*272*128 | 439*296*141 | 540*295*140/468*295*136 |
| Net Weight (kgs) | 7.4kg | 10kg | 11.5kg/13.5kg |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| Operating Temperature | 0°C to 55°C | ||
| Storage Temperature | -15°C to 60°C | ||

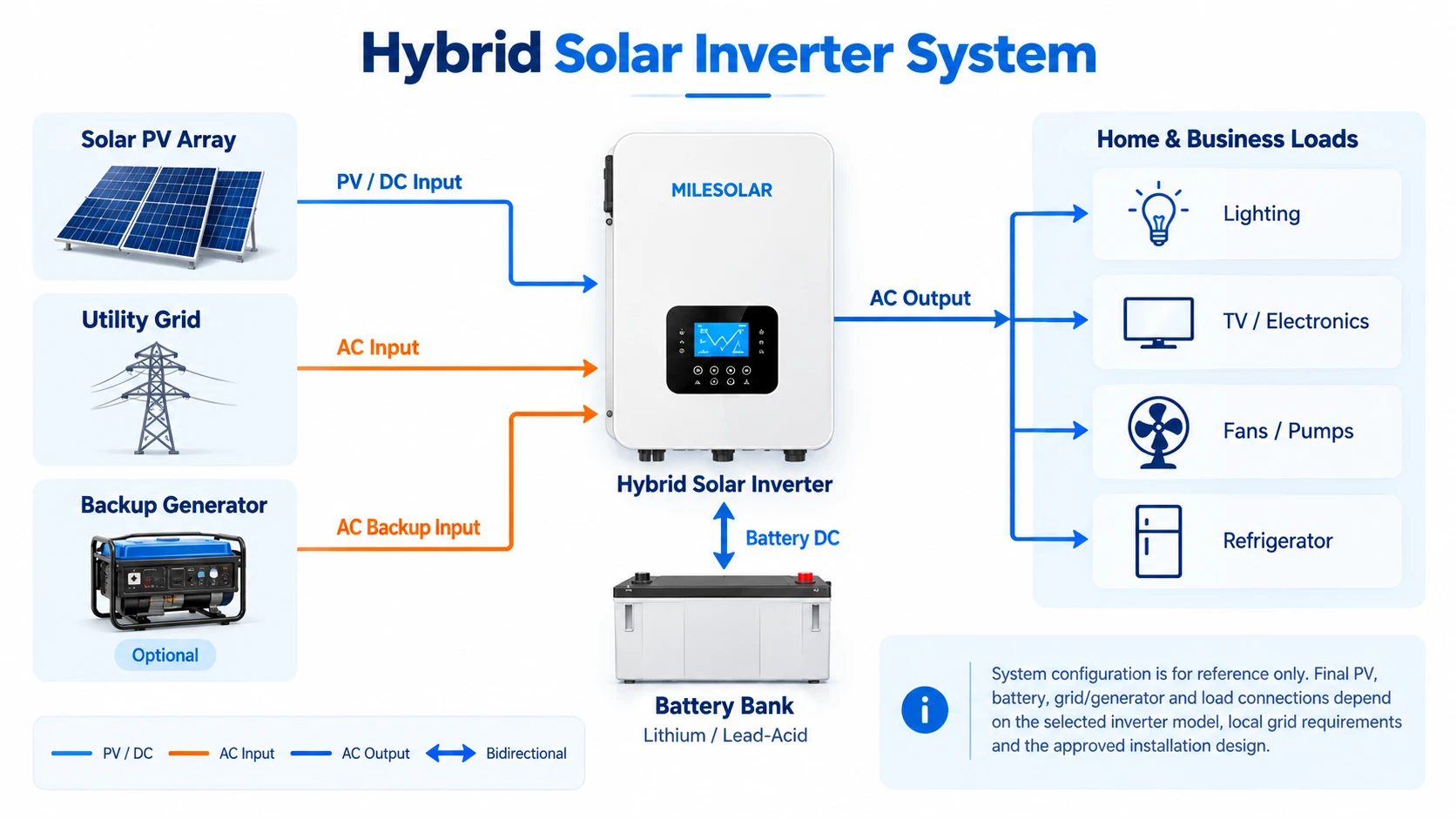

How It Works
Applications

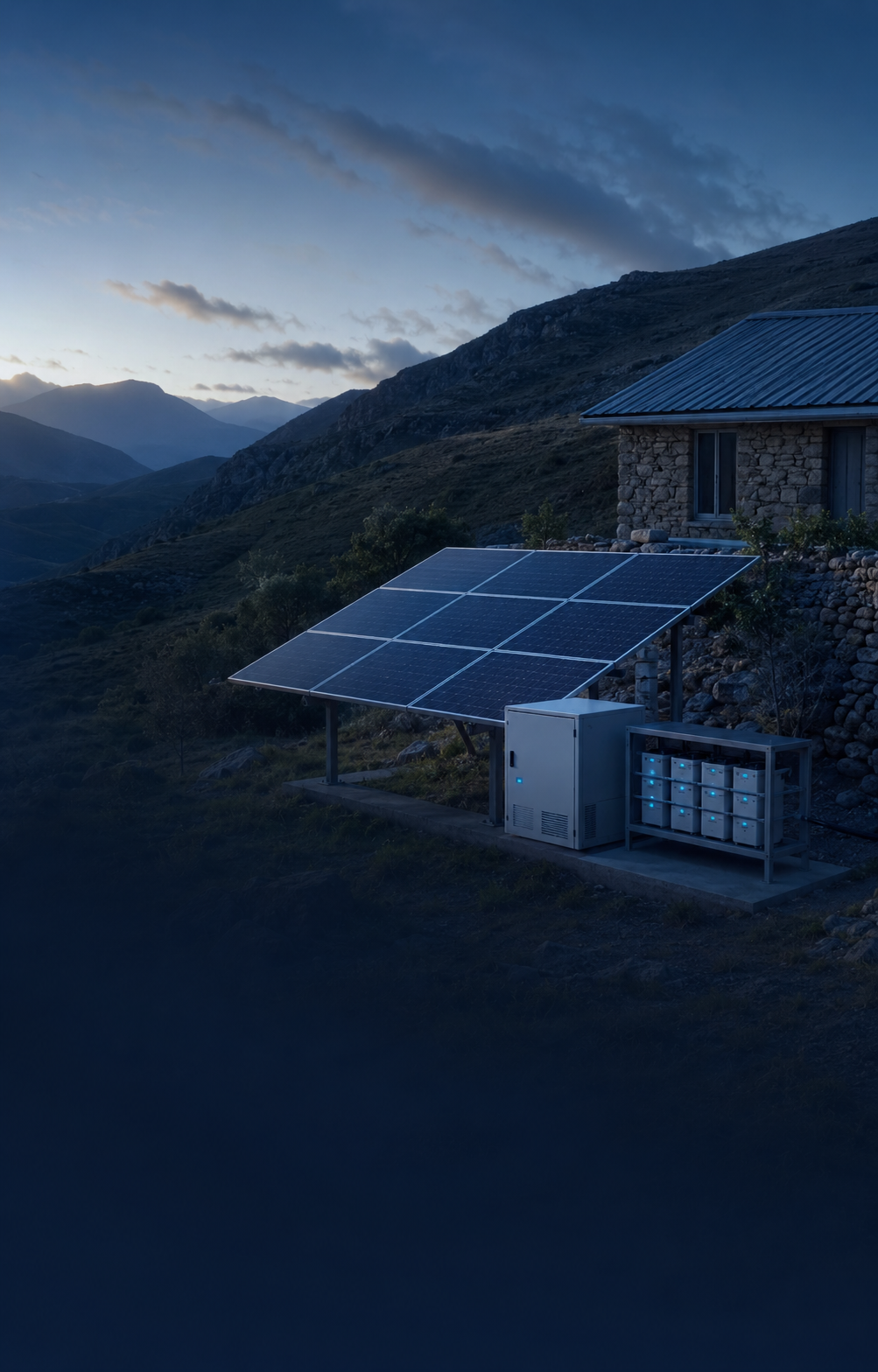

Remote & Off-Grid Sites
Practical power for cabins, farms and locations with limited utility access.

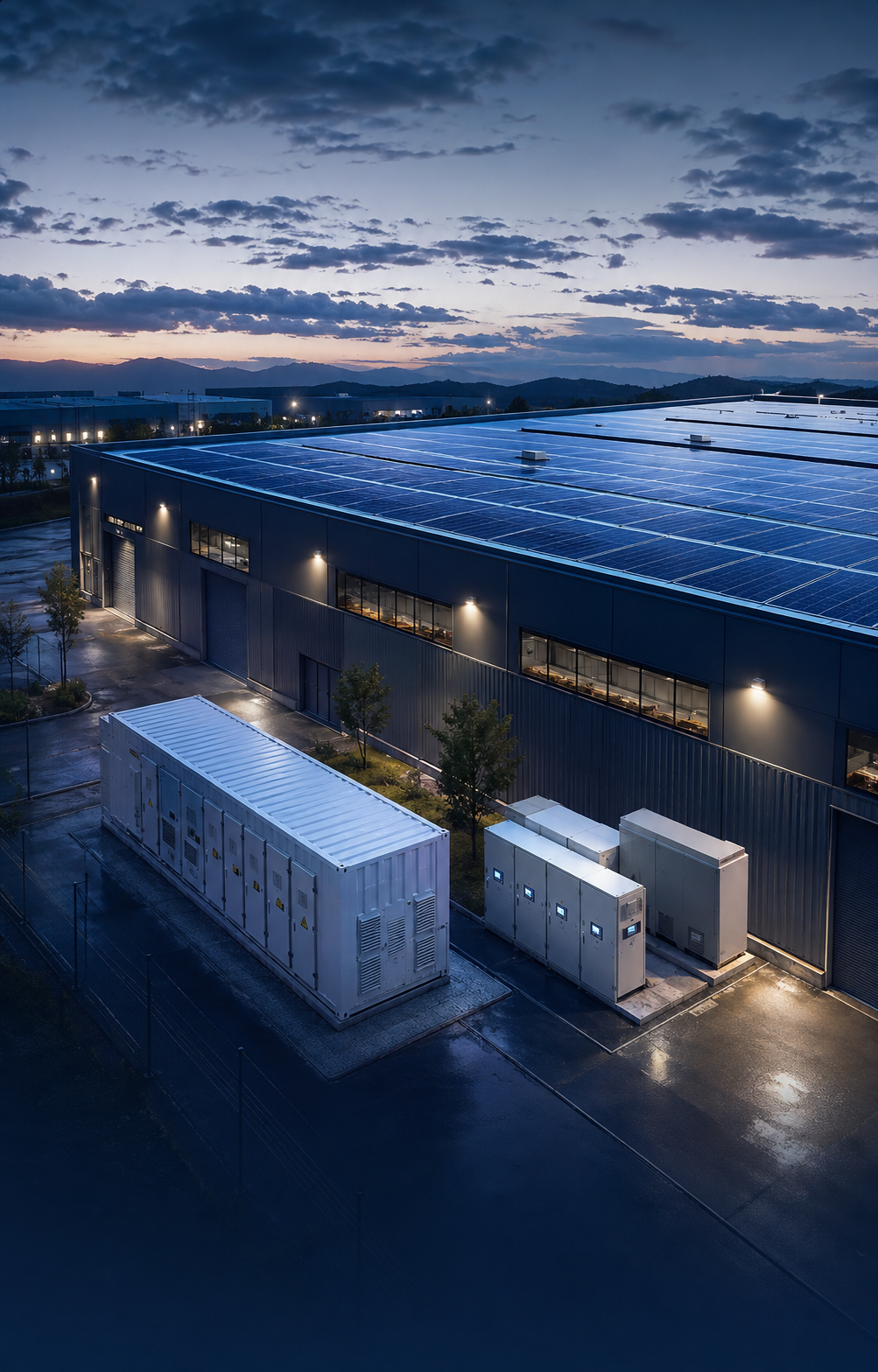

Small Commercial Projects
Flexible power support for shops, offices and light commercial loads.
System Matching & Wholesale Support
|
▦
MOQ: Model-specific
Sample and bulk-order quantity confirmed in quotation.
|
✦
OEM / ODM: Available
Branding, configuration and packaging support for B2B orders.
|
|
◷
Lead Time: Order-specific
Confirmed after model, quantity and customization review.
|
✓
Warranty: Model-specific
Final warranty terms follow the approved quotation.
|
|
▤
Documents: On Request
Datasheet and available certification documents provided on request.
|
☎
Technical Support: Included
Pre-sales model selection and after-sales technical assistance.
|
Related Models
5kW 48V Parallel Type On/Off-grid Hybrid Solar InverterSingle-Phase Hybrid Inverters
4.2kW 24V Hybrid Solar Inverter MPPT with wide PV 500V | can work without batterySingle-Phase Hybrid Inverters

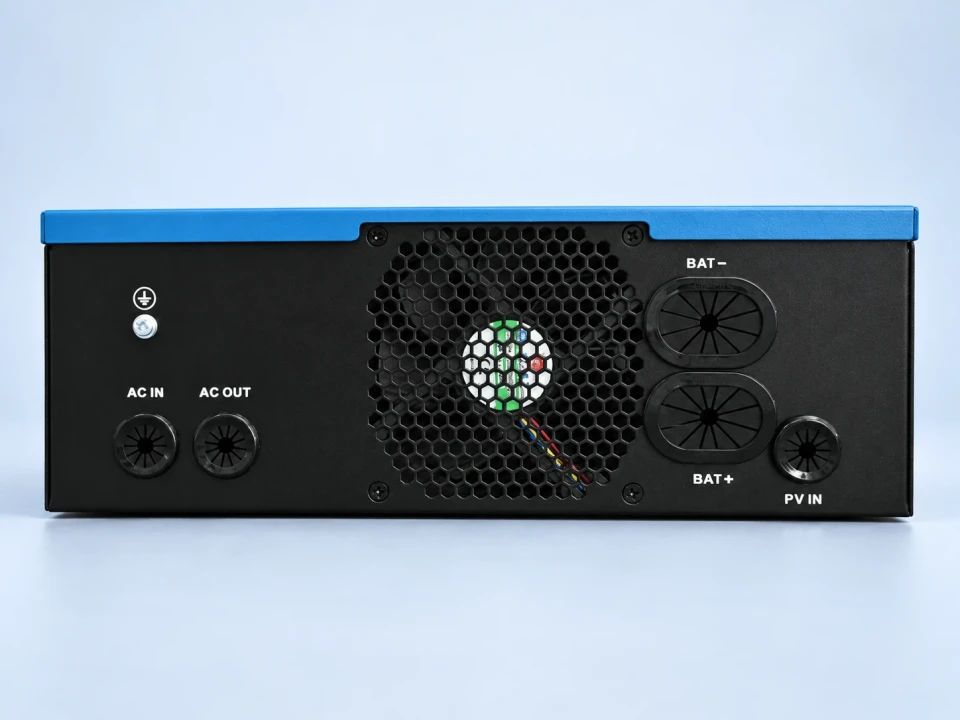

2.5kW 12V Hybrid Solar Inverter with 100A MPPTSingle-Phase Hybrid Inverters

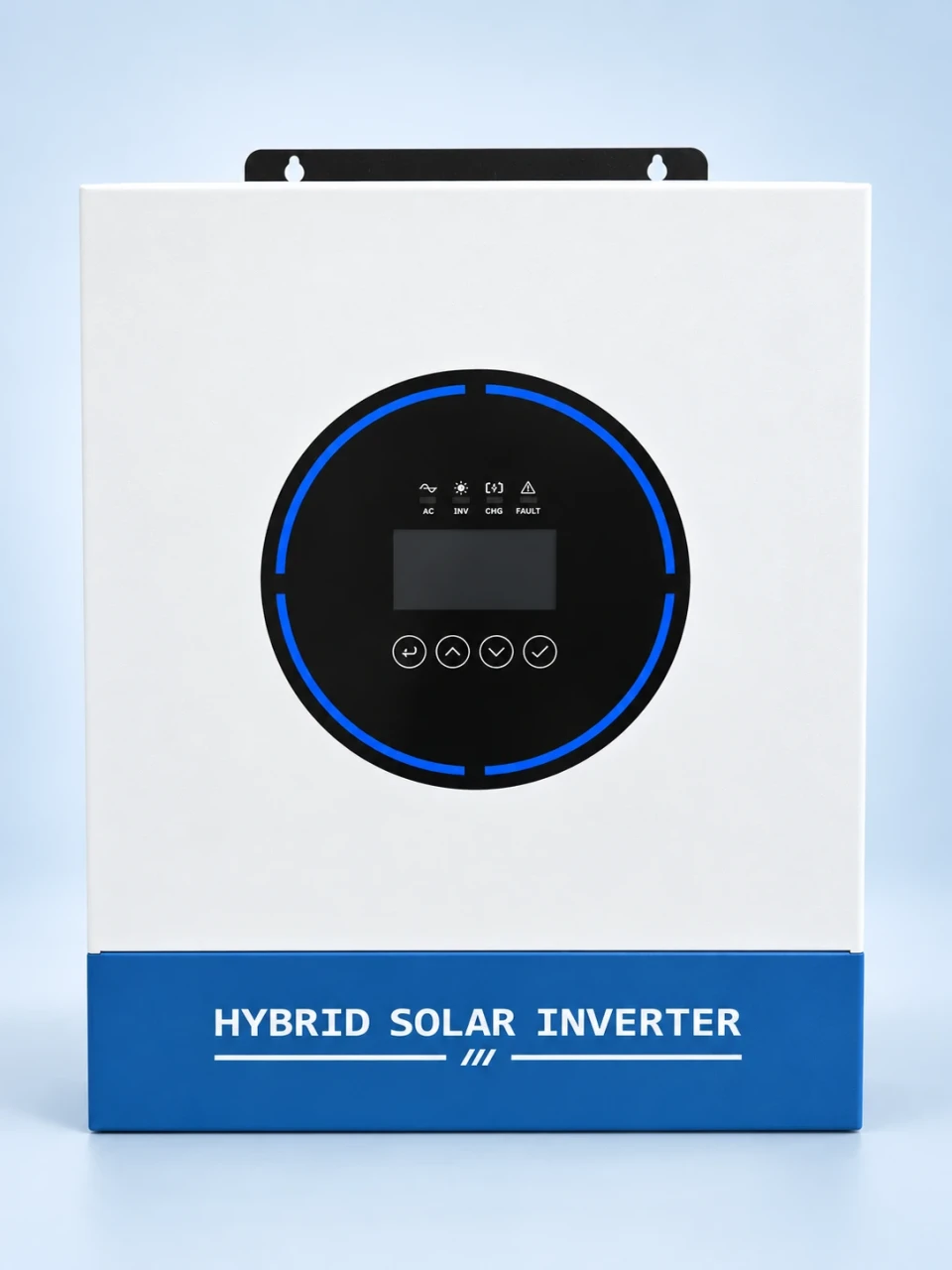

6.5kW 48V Hybrid Solar Inverter with 120A MPPTSingle-Phase Hybrid Inverters
FAQ
The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
Yes. Branding, selected configurations and packaging customization can be discussed for qualified B2B orders.
MOQ and lead time depend on the selected model, quantity and customization. Please request a formal quotation.
Yes. Submit an inquiry with the required power, voltage and application, and our sales team will provide the matching technical document.
Yes. We can review your loads, battery voltage, PV array and backup requirements before recommending a configuration.
