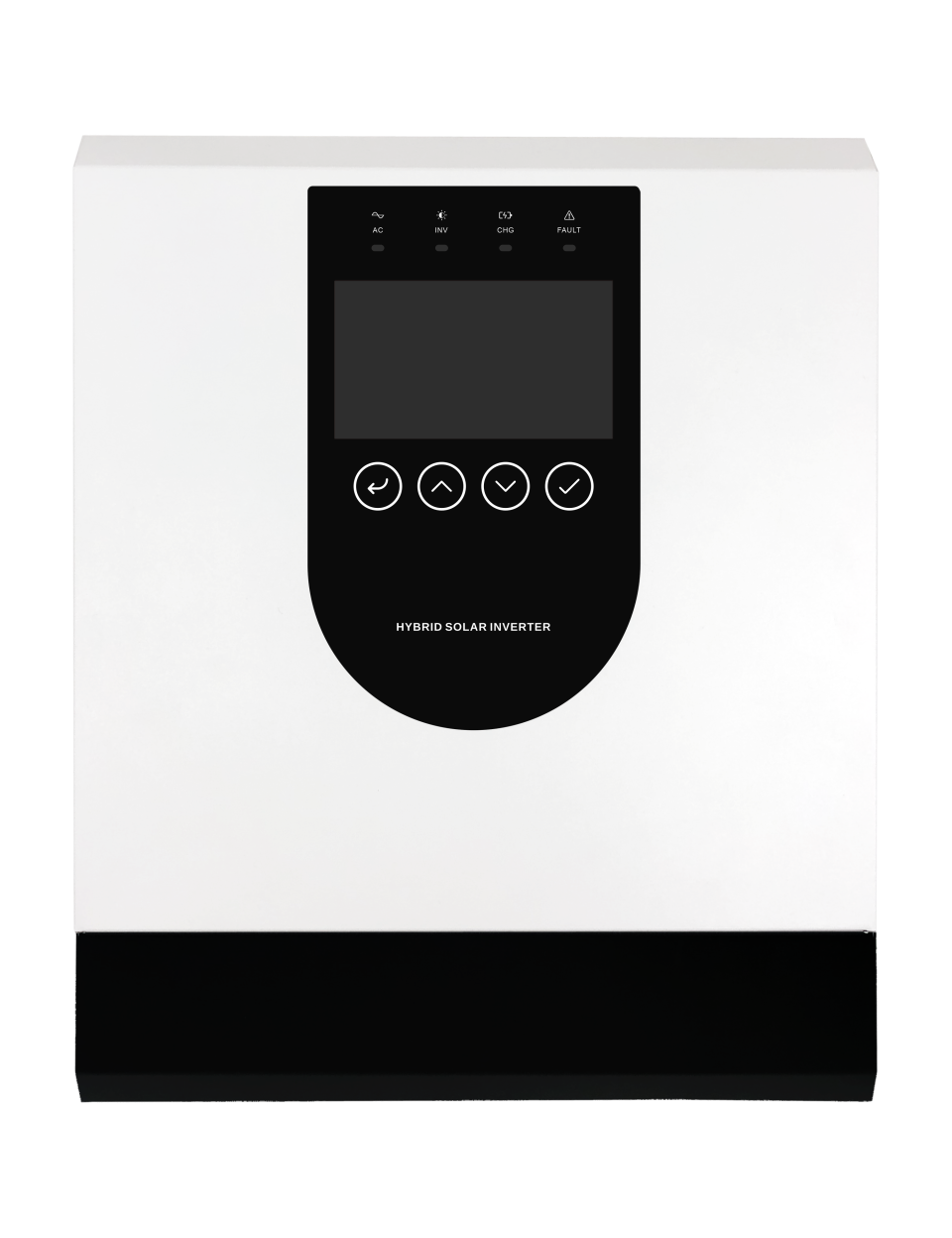

6.5KW 48V Hybrid Solar Inverter MPPT with wide PV 500V | can work without battery

The 6.5KW 48V Hybrid Solar Inverter integrates solar, battery, grid, and generator power into one intelligent system. With a wide PV input range up to 500V, a high-performance MPPT controller (≈98% efficiency), and built-in WiFi monitoring, it delivers maximum solar utilization and reliable AC output. This inverter can operate without a battery, making it cost-effective for new solar users.

QUALITY
WARRANTY
RELIABILITY
CUSTOMIZE

Feature

Shot showing of this 4KW 24V hybrid solar inverter from outside to inside

Technical details of 4KW 24V hybrid solar inverter

Model	SYP6.5KW-48V
AC Input
Rated Input Voltage(VAC)	208/220/230/240;L+N+PE
Voltage Range(VAC)	90~280±3(normal mode);170~280±3(UPS mode)
Frequency(Hz)	50/60(Auto Adaptive)
AC Output
Rated Capacity(kW)	6.5
Surge Power(kVA)	12
Voltage(VAC)	208/220/230/240
Power Factor(PF)	1
Frequency	50/60Hz±0.1%
Switch Time(ms)	10(normal mode)/10(UPS mode)
Wave Form	Pure Sine Wave
Overload Capacity(Battery Mode)	1min@102%~120%;10S@>120%Load
Max.Efficiency(Battery Mode)	94%@48VDC
Parallel Quantity	NA
Charger(PV/AC)
Solar Charger Type	MPPT
Max PV input Current/Input Power	27A/9000W
MPPT Range@Operating Voltage(VDC)	60~450
Max PV Open Circuit Voltage(VDC)	500
Max PV Charge Current(A)	120
Max AC Charge Current(A)	120
Max.Charge Current(PV+AC)(A)	120
Battery
Rated Voltage(VDC)	48
Battery Type	Lithium and Lead-acid
Interface
HMI	LCD
Interface	RS485/RS232/USB /Dry Contact
Monitoring	WiFi(Optional)
General Data
Ingress Protection	IP21
Operating Temperature	-10℃~50℃
Relative Humidity	5%～95%(Non-condensing)
Storage Temperature	-15℃~60℃
Net Weight(kg)	14
Dimensions(WHD)	410×336×115mm
Max.Operating Altitude	4000m(Derating above 1000m)
