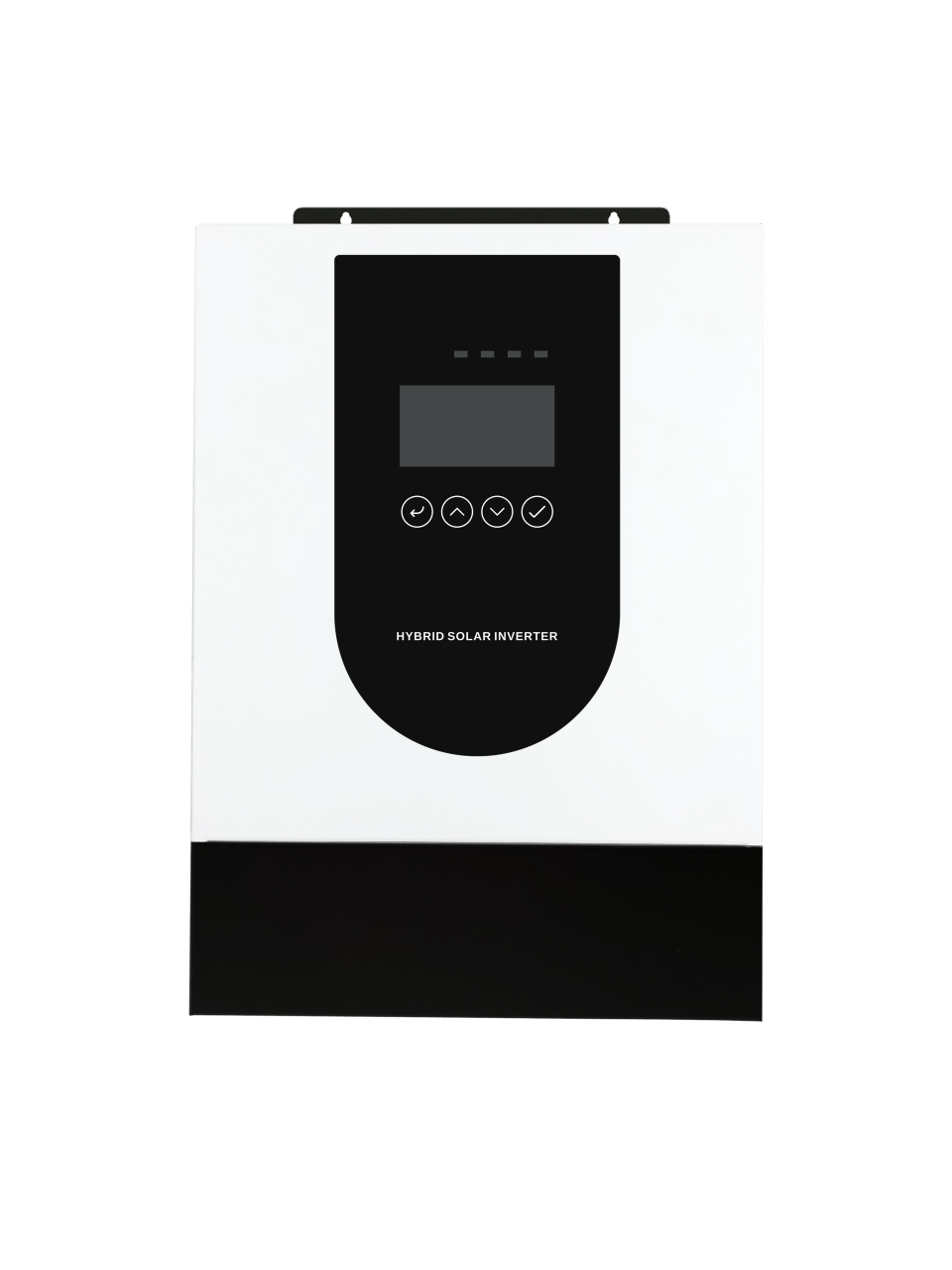

2.5KW 12V Hybrid Solar Inverter MPPT with wide PV 450V | can work without battery

The 2.5KW 24V Hybrid Solar Inverter integrates solar, battery, grid, and generator power into one intelligent system. With a wide PV input range up to 450V, a high-performance MPPT controller (≈98% efficiency), and built-in WiFi monitoring, it delivers maximum solar utilization and reliable AC output. This inverter can operate without a battery, making it cost-effective for new solar users.

QUALITY
WARRANTY
RELIABILITY
CUSTOMIZE

Feature

Shot showing of this 4KW 24V hybrid solar inverter from outside to inside

Technical details of 1.2KW 12V hybrid solar inverter

Model	SYP2.5KW-12V
AC Input
Rated Input Voltage(VAC)	208/220/230/240;L+N+PE
Voltage Range(VAC)	90~280±3(normal mode);170~280±3(UPS mode)
Frequency(Hz)	50/60(Auto Adaptive)
AC Output
Rated Capacity(kW)	2.5
Surge Power(kVA)	4
Voltage(VAC)	208/220/230/240
Power Factor(PF)	1
Frequency	50/60Hz±0.1%
Switch Time(ms)	10(APP/UPS mode)/20(GEN mode)
Wave Form	Pure Sine Wave
Overload Capacity(Battery Mode)	long term@102%-125%load;10s@125%-250%load
Max.Efficiency(Battery Mode)	91%@12VDC
Parallel Quantity	NA
Charger(PV/AC)
Solar Charger Type	MPPT
Max PV input Current/Input Power	18A/3000W
MPPT Range@Operating Voltage(VDC)	30-400
Max PV Open Circuit Voltage(VDC)	450
Max PV Charge Current(A)	100
Max AC Charge Current(A)	100
Max.Charge Current(PV+AC)(A)	100
Battery
Rated Voltage(VDC)	48
Battery Type	Lithium and Lead-acid
Interface
HMI	LCD
Interface	RS485/CAN/RS232/CT(optional)/Meter(optional)
Monitoring	WiFi(optional/built-in/external)
General Data
Ingress Protection	IP21
Operating Temperature	-10℃~50℃
Relative Humidity	5%～95%(Non-condensing)
Storage Temperature	-15℃~60℃
Net Weight(kg)	4.5
Dimensions(WHD)	375×290×100mm
Max.Operating Altitude	4000m(Derating above 1000m)
