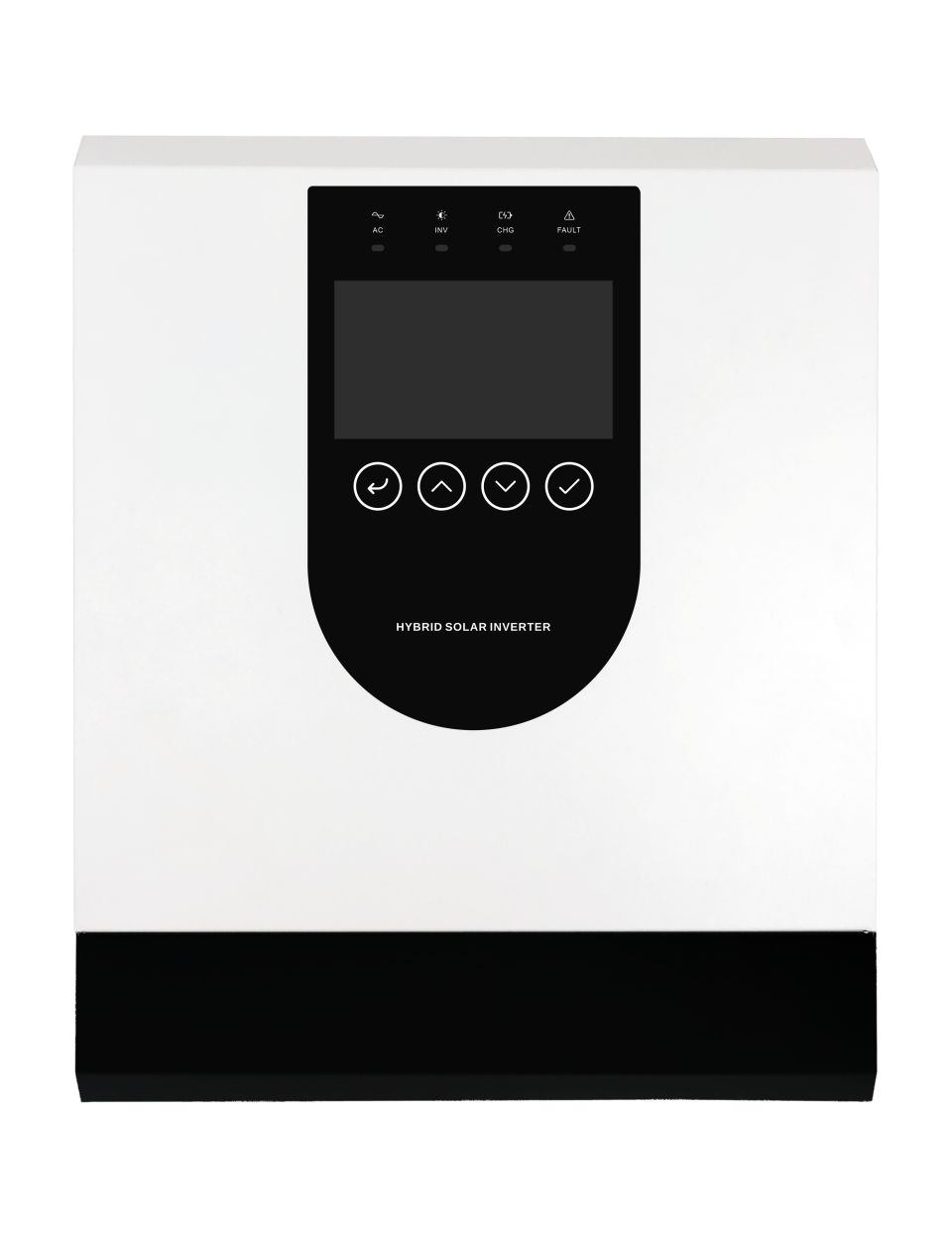

12KW 48V Hybrid Solar Inverter MPPT with wide PV 500V | can work without battery

The 12KW 48V Hybrid Solar Inverter integrates solar, battery, grid, and generator power into one intelligent system. With a wide PV input range up to 500V, a high-performance MPPT controller (≈98% efficiency), and built-in WiFi monitoring, it delivers maximum solar utilization and reliable AC output. This inverter can operate without a battery, making it cost-effective for new solar users.

QUALITY
WARRANTY
RELIABILITY
CUSTOMIZE

Feature

Shot showing of this 12KW 48V hybrid solar inverter from outside to inside

Technical details of 12KW 48V hybrid solar inverter

Model	SYP12KW-48V
AC Input
Rated Input Voltage(VAC)	220/230/240;L+N+PE
Voltage Range(VAC)	90-280±3(normal mode);170-280±3(UPS mode)
Frequency(Hz)	50/60(Auto Adaptive)
AC Output
Rated Capacity(kW)	12
Surge Power(kVA)	24
Voltage(VAC)	220/230/240
Power Factor(PF)	1
Frequency	50/60Hz±0.1%
Switch Time(ms)	10(APP/UPS mode),20(GEN mode)
Wave Form	Pure Sine Wave
Overload Capacity(Battery Mode)	1min@102%~125%Load 10s@>125%Load
Max.Efficiency(Battery Mode)	94%@48VDC
Parallel Quantity	NA
Charger(PV/AC)
Solar Charger Type	MPPT
Max PV input Current/Input Power	Using One MPPT:27A/9KW; Using Two MPPTs:22.5A/Per MPPT,15kW/Total;
MPPT Range@Operating Voltage(VDC)	60~450
Max PV Open Circuit Voltage(VDC)	500
Max PV Charge Current(A)	160
Max AC Charge Current(A)	160
Max.Charge Current(PV+AC)(A)	160
Battery
Rated Voltage(VDC)	48
Battery Type	Lithium and Lead-acid
Interface
HMI	LCD
Interface	RS485/RS232/USB /Dry Contact
Monitoring	WiFi(Optional)
General Data
Ingress Protection	IP21
Operating Temperature	-10℃~60℃
Relative Humidity	5%～95%(Non-condensing)
Storage Temperature	-15℃~60℃
Net Weight(kg)	14
Dimensions(WHD)	525×435×138mm
Max.Operating Altitude	4000m(Derating above 1000m)
