Available Configurations
- DC Voltage
- 48V
- Rated Power
- 12KW / 6.5KW
HYBRID SOLAR INVERTERS

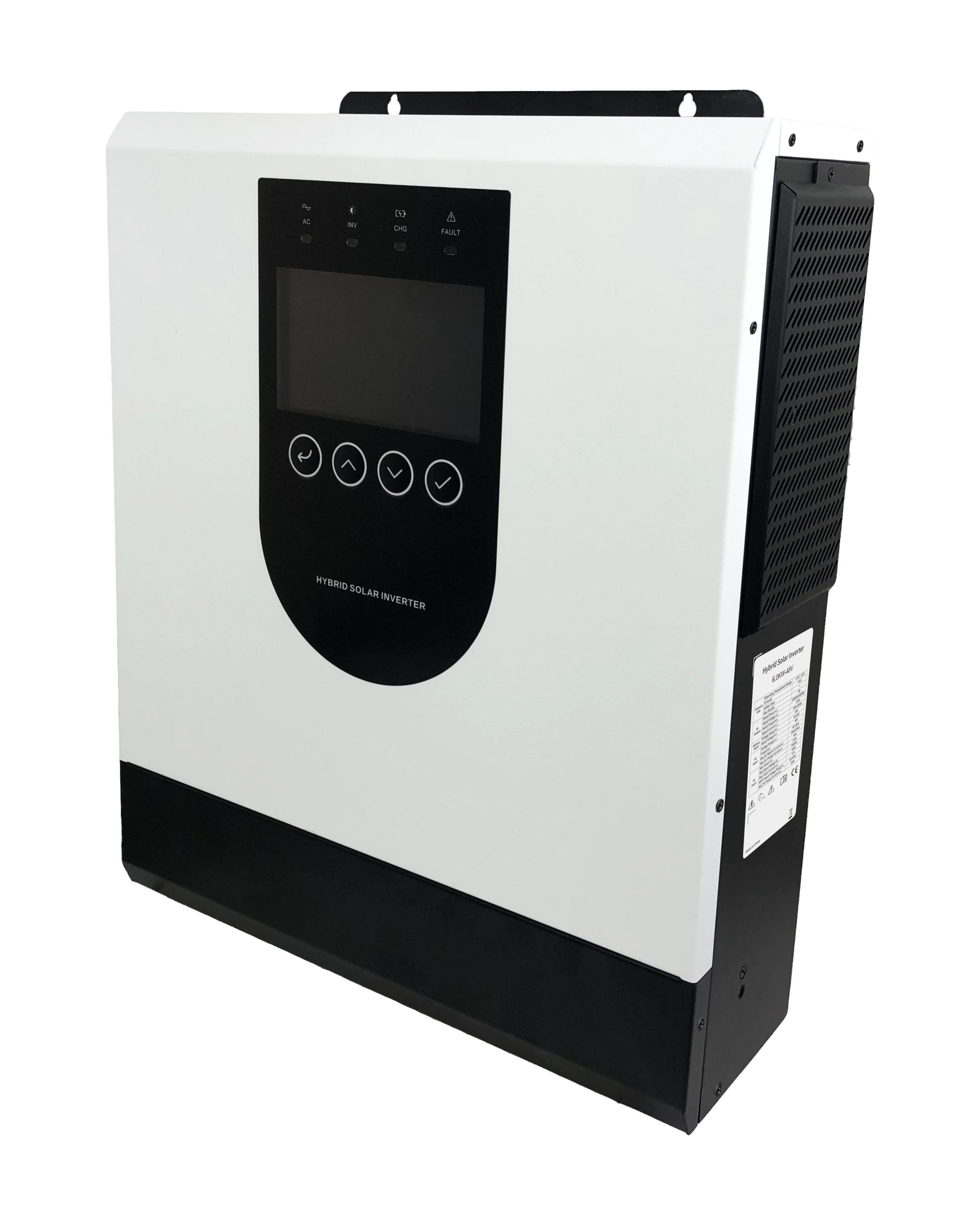

12kW/6.5KW 48V Hybrid Solar Inverter
The 12KW 48V Hybrid Solar Inverter integrates solar, battery, grid, and generator power into one intelligent system. With a wide PV input range up to 500V, a high-performance MPPT controller (≈98% efficiency), and built-in WiFi monitoring, it delivers maximum solar utilization and reliable AC output…
Product Details
Shot showing of this 12KW 48V hybrid solar inverter from outside to inside
Technical details of 12KW 48V hybrid solar inverter
|
Model |
SYP12KW-48V |
| AC Input | |
| Rated Input Voltage(VAC) | 220/230/240;L+N+PE |
| Voltage Range(VAC) | 90-280±3(normal mode);170-280±3(UPS mode) |
| Frequency(Hz) | 50/60(Auto Adaptive) |
| AC Output | |
| Rated Capacity(kW) | 12 |
| Surge Power(kVA) | 24 |
| Voltage(VAC) | 220/230/240 |
| Power Factor(PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time(ms) | 10(APP/UPS mode),20(GEN mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity(Battery Mode) | 1min@102%~125%Load 10s@>125%Load |
| Max.Efficiency(Battery Mode) | 94%@48VDC |
| Parallel Quantity | NA |
| Charger(PV/AC) | |
| Solar Charger Type | MPPT |
| Max PV input Current/Input Power |
Using One MPPT:27A/9KW; Using Two MPPTs:22.5A/Per MPPT,15kW/Total; |
| MPPT Range@Operating Voltage(VDC) | 60~450 |
| Max PV Open Circuit Voltage(VDC) | 500 |
| Max PV Charge Current(A) | 160 |
| Max AC Charge Current(A) | 160 |
| Max.Charge Current(PV+AC)(A) | 160 |
| Battery | |
| Rated Voltage(VDC) | 48 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| HMI | LCD |
| Interface | RS485/RS232/USB /Dry Contact |
| Monitoring | WiFi(Optional) |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10℃~60℃ |
| Relative Humidity | 5%～95%(Non-condensing) |
| Storage Temperature | -15℃~60℃ |
| Net Weight(kg) | 14 |
| Dimensions(W*H*D) | 525×435×138mm |
| Max.Operating Altitude |
4000m(Derating above 1000m) |
Available Models
| Specification | 48V-12KW | 48V-6.5KW |
|---|---|---|
| DC Voltage | 48V | 48V |
| Rated Power | 12KW | 6.5KW |
Technical Specifications
Product Information
- Product Type
- Single-Phase Hybrid Inverters
- Customization
- OEM / ODM available
- MOQ & Lead Time
- Contact us for quotation
Available options are based on current product data. Final specifications must be confirmed in the approved datasheet and quotation.
How It Works
Applications
Home Solar & Backup
Stable solar and backup power for essential household loads.
Remote & Off-Grid Sites
Practical power for cabins, farms and locations with limited utility access.
Small Commercial Projects
Flexible power support for shops, offices and light commercial loads.
System Matching & Wholesale Support
 |
MOQ: Model-specific Sample and bulk-order quantities are confirmed according to the selected model and project requirements. |
 |
OEM / ODM: Available Custom branding, product configuration, manuals and packaging support for B2B orders. |
 |
Lead Time: Order-specific Delivery schedule is confirmed after model, quantity and customization review. |
 |
Warranty: Model-specific Warranty coverage follows the selected model and approved quotation. |
 |
Documents: On Request Datasheets and available certification documents are provided on request. |
 |
Technical Support: Included Pre-sales model selection and after-sales technical assistance. |
Related Models
5kW 48V Parallel Type On/Off-grid Hybrid Solar InverterSingle-Phase Hybrid Inverters
12KW 48V Hybrid Solar Inverter MPPT with wide PV 500V | can work without batterySingle-Phase Hybrid Inverters
2.5kW 12V Hybrid Solar Inverter with 100A MPPTSingle-Phase Hybrid Inverters
4.0kW/5.5kW 24V Hybrid Solar Inverter with 120A MPPTSingle-Phase Hybrid Inverters
FAQ
The correct model depends on load power, battery-bank voltage, surge demand and operating time. Send us your load list and system requirement for model selection.
Yes. Branding, selected configurations and packaging customization can be discussed for qualified B2B orders.
MOQ and lead time depend on the selected model, quantity and customization. Please request a formal quotation.
Yes. Submit an inquiry with the required power, voltage and application, and our sales team will provide the matching technical document.
Yes. We can review your loads, battery voltage, PV array and backup requirements before recommending a configuration.
