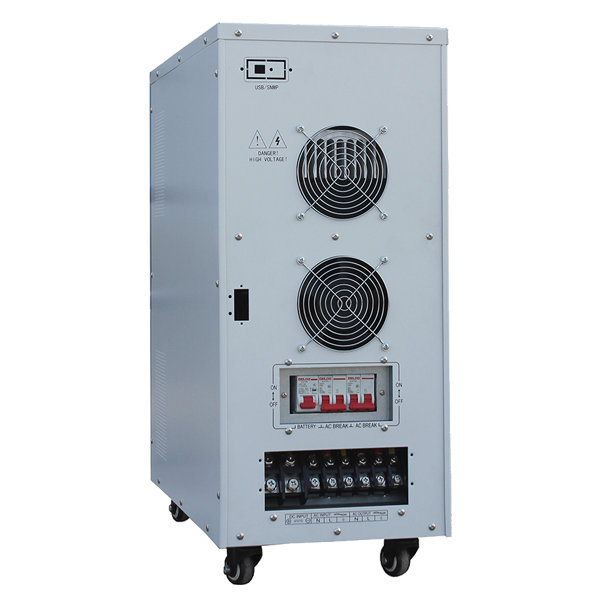

This is IGBT module drive of huge DC to AC pure sine wave inverter charger 12KW 96VDC/192VDC 110VAC 220VAC single phase. This off-grid, backup power 12KW inverter is perfect for business, hotels, large homes, farms and other applications that require huge amounts of backup power.
* 12KW power inverter 96VDC 192VDC to 110VAC 120VAC 220VAC 240VAC single phase

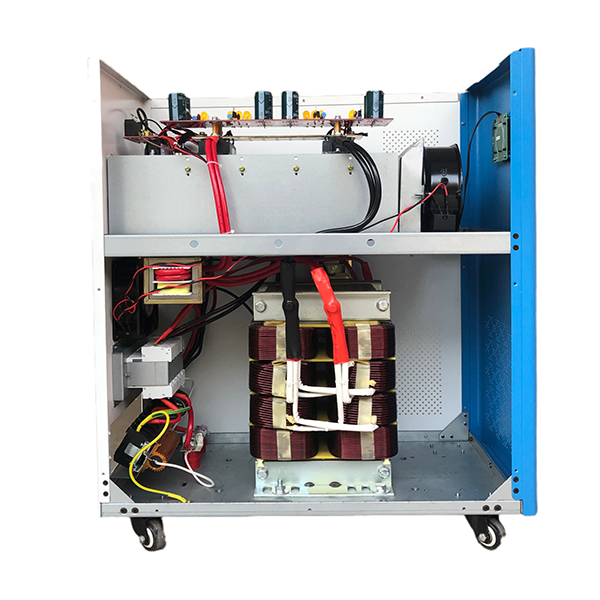

* IGBT module drive pure sine wave inverter, reliable and stable performance
* Low frequency preventing RF interference
* DC/AC priority working mode adjustable, suite for off-grid and backup power system
* Simple design for convenient maintenance
* 4 types battery selectable: Gel, AGM, Li-Ion, LiFePo4 battery or customized.
* Automatically transfer between battery and line modes by 4ms.
* Protection against: Over load, over temperature, overcharging and/ over-discharging for battery,Output short-circuit protection
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample order/trial order for you testing by 1 product or mixed solar products.
Q2: When will you deliver the goods?
A: 3-5 working days for sample order; 7-15 working days for quantity order after receiving the deposit payment.
Q3: Do you offer a guarantee for your solar products?
A: Yes, 18 months for inverter and inverter related products including solar generator, solar inverter. 2 years for solar lights.
Q4: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for inverter, solar inverter, MPPT solar controllers, solar generator and solar lights.
Please send you detailed request to our sales specialist for best quote.
Model | HI-12KW/96V | HI-12KW-192V | |
Rated power | 12KW | ||
Peak power | 36KW | ||
Nominal battery voltage | 96VDC | 192VDC | |
Input | DC input range | 84V-128VDC | 168V-256VDC |
AC Mains input range | 165-265VAC(220VAC) | ||
AC input frequency | 50Hz: 45-65Hz/60Hz: 55-65Hz±0.5Hz(50Hz/60Hz automatic recognition) | ||
Protection | Low battery alarm | 82.4VDC | 164.8VDC |
Low battery protection | 80VDC | 160VDC | |
High battery alarm | > 128VDC | > 256VDC | |
High battery protection | 132VDC | 264VDC | |
Overload protection | 120% | ||
High temperature | Built-in temperature real time sensor, ≥85°C alarm, ≥90°C automatic shutdown | ||
Short circuit protection | Yes | ||
Output | efficiency | >85% | |
Output voltage | (DC battery mode)220VAC±5% ; 110VAC±5% | ||
Output frequency | (DC battery mode)60/50Hz± 1% | ||
Output waveform | Pure sine wave | ||
Output voltage | (AC mains mode) 220/230/240VAC± 5% output | ||
AC mains mode | AC mains > 170VAC±5% switch to DC battery mode, AC mains > 180VAC±5% return to AC mains mode; | ||
AC mains > 275VAC±5% switch to DC battery mode, AC mains > 255VAC±5% return to AC mains mode; | |||
The above is for 220V output for reference | |||
Output frequency | (AC mains mode)automatic tracing from AC input | ||
Other | Transfer time | Built-in AC bypass replay (4ms) | |
Display | LCD Display with function buttons | ||
Cooling system | Intelligent cooling fan control system <42°C slow fan, >45°C fast fan | ||
AC Charger | battery types mode | Gel, AGM, Li-ion, LiFePo4 battery, customized | |
AC charging voltage | 112V - 128VDC | 224V - 288VDC | |
AC charging current | 0-30A:5A/10A/20A/30A 4 stages charging current adjustable | ||
3 Stages charging | Boost charging, direct charging, float charging | ||
AC overcharge protection | ≥132VDC | ≥264VDC | |
Communication | RS-232/USB/SNMP(additional) | ||
Environment | Temperature | -10~+40°C | |
Humidity | <95% | ||
Appearance | Product size | 580*290*675mm(L*W*H) | |
Packing size | 690*360*830mm | ||
Net weight | 84 kg | ||
Gross weight | 100 kg |

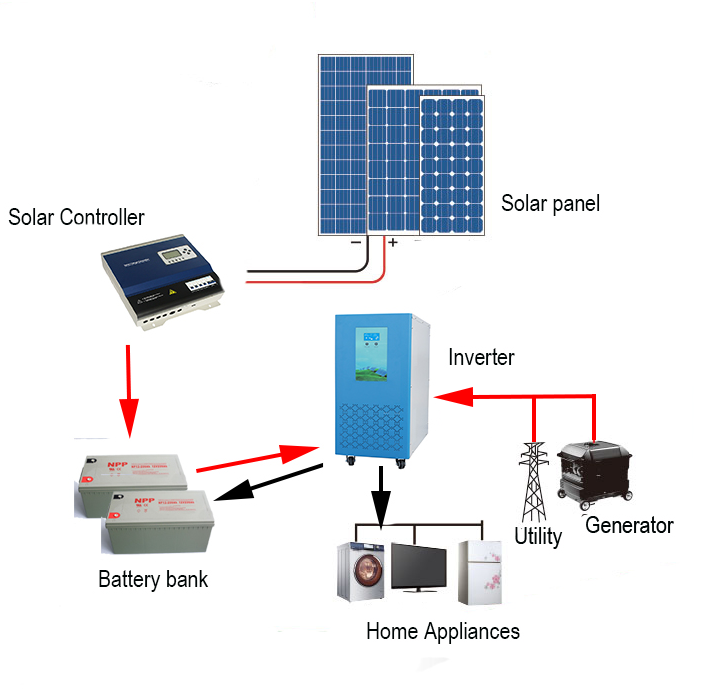

Applications for 12000W power inverters:
