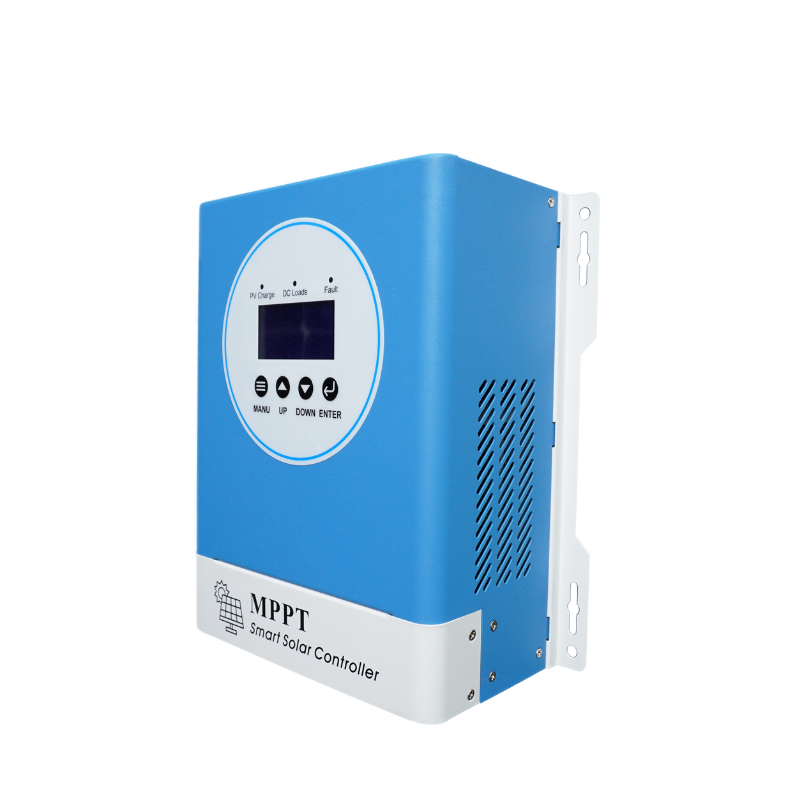

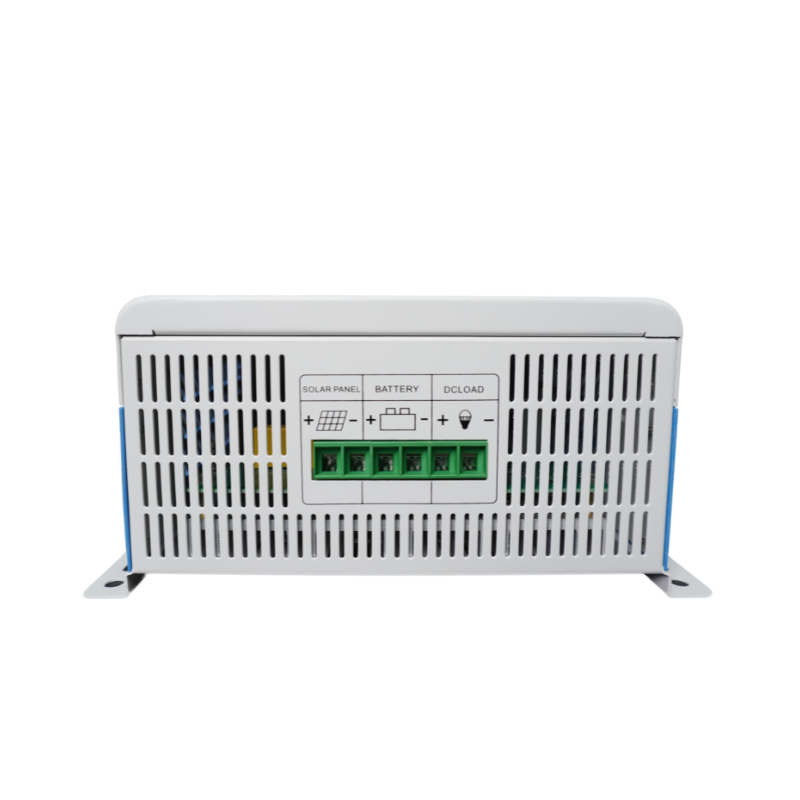

30A 60A MPPT solar charge controller.
12/24/36/48V auto voltage;
PV max input voltage 150VDC;
Technical datasheet for MPPT solar controller
| Model |
MC30 |
MC60 |
| Rated maximum charge current |
30A |
60A |
| System voltage |
12V/24V/36V/48V Auto |
| Maximum PV input voltage |
150VDC |
| MPPT working voltage |
18V-130V(12V system); 36V-130V(24V system);
54V - 130V(36V system); 65V-130V(48V system) |
| Optimal PV range |
18V-130V(12V system); 36V-90V(24V system);
80V-120V(48V system) |
| PV input power |
12V system |
400W |
720W |
| 24V system |
720W |
1440W |
| 36V system |
1080W |
2160W |
| 48V system |
1440W |
2880W |
| Battery type |
lead acid AGM, Gel, deep cycle, LiFePo4, Li-ion lithium, or customized battery |
| High voltage of battery protection |
15V for single battery 12V |
| Boost recovery voltage |
13.8V for single battery 12V |
| Low voltage recovery |
12.5V for single battery 12V |
| Under-voltage shutdown |
9.9V |
| Charging type |
MPPT automatic maximum power point tracking. |
| Charging mode |
Three-stage: constant current (MPPT), constant voltage, floating charge. |
| Protection |
Overvoltage/ overcurrent/ high temperature/ solar reverse connection |
| Cooling method |
Intelligent cooling fan |
| IP level |
IP20 |
| Environment |
Temperature |
-15~+50°C |
| Humidity |
<95% |
| Appearance |
Product size |
250*200*110mm(L*W*H) |
| Packing size |
265*215*125mm |
| Net weight |
2.6 kg |
3 kg |
| Gross weight |
3 kg |
3.4 kg |
