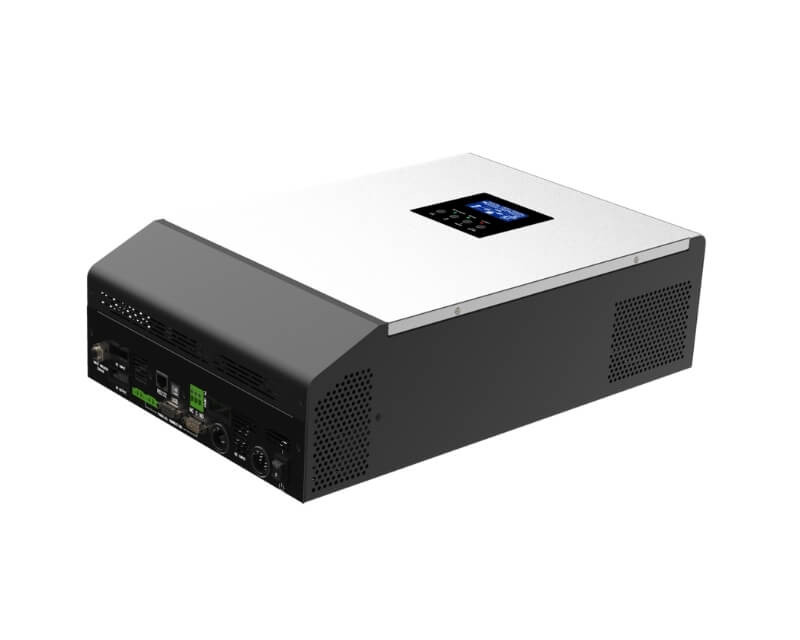

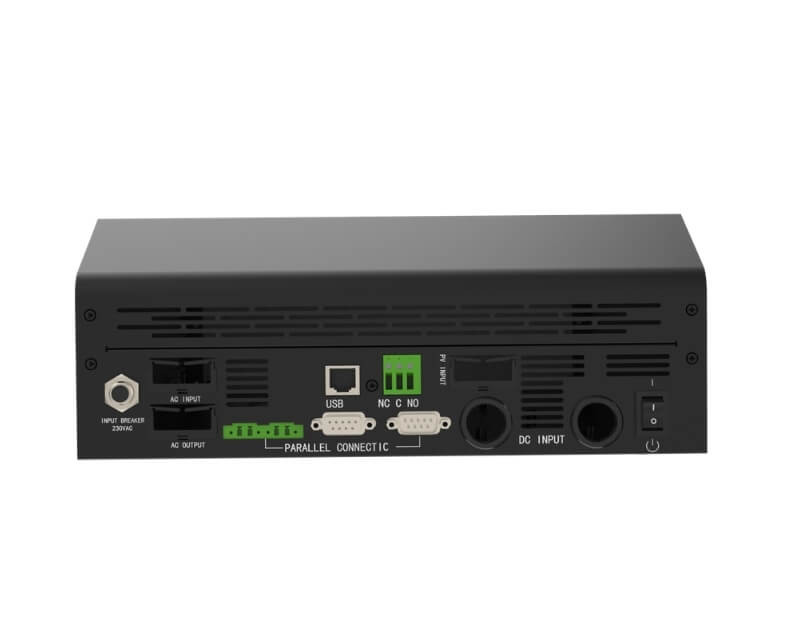

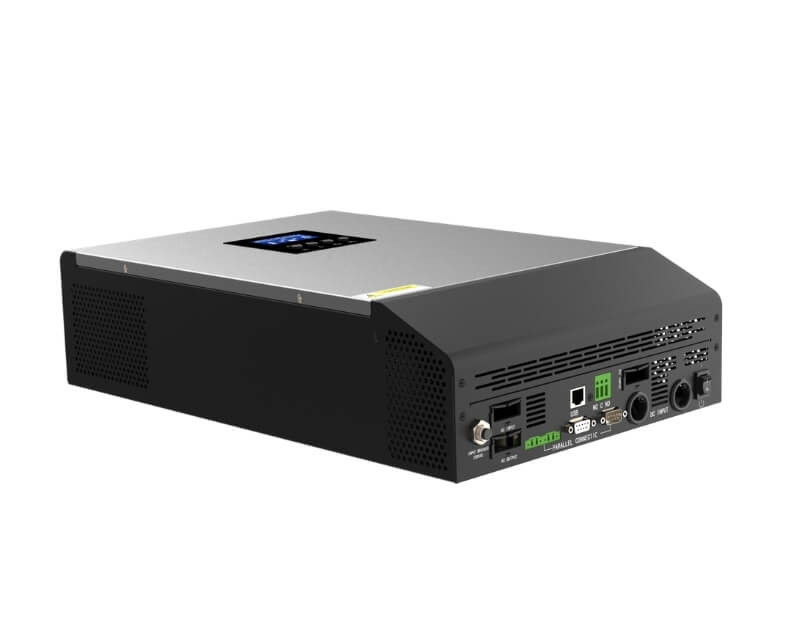

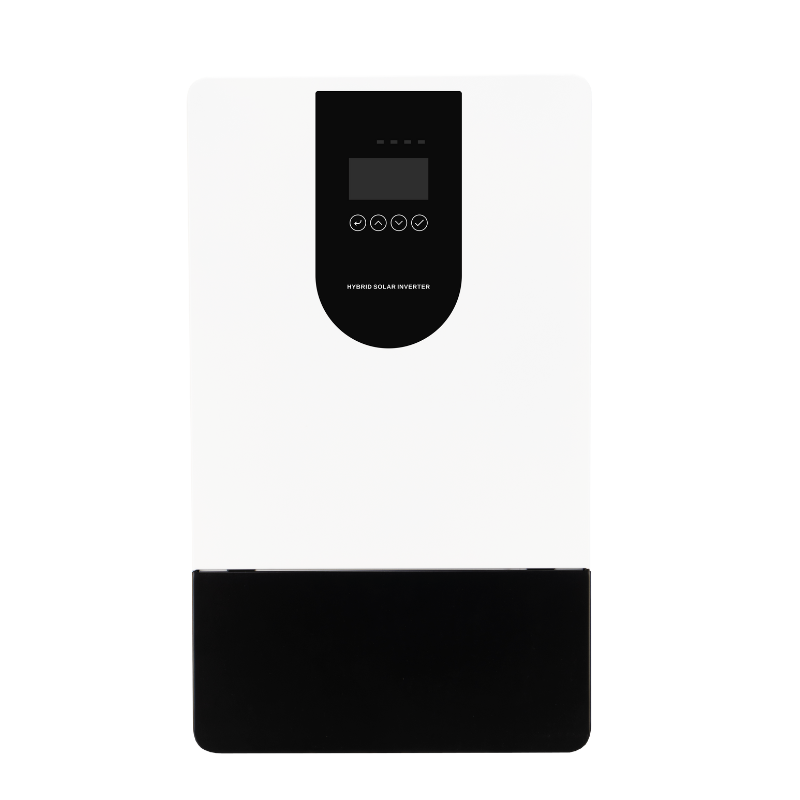

5KVA 5KW Solar inverter with MPPT controller support parallel operation up to 6 units
5KVA 5KW 48V solar inverter with 80A MPPT solar controller for off-grid solar power system. It supports parallel operation up to 6 units to reach 30KVA max.
- Pure sine wave inverter
- Built-in MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers.
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Parallel operation with up to 6 units (30KVA) only available for 5KVA
| Model | MPS PLUS 1K-24 | MPS PLUS 3K-24 | MPS PLUS 5K-48 |
| Rated Power | 1000VA/1000W | 3000VA/3000W | 5000VA/5000W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
||
| Frequency Range | 50Hz/60Hz (Auto-sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | ||
| Surge power | 2000VA | 6000VA | 10000VA |
| Efficiency(Peak) | 90-93% | 93% | 93% |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) |
||
| Wave form | Pure Sine Wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 24VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 33VDC | 60VDC |
| Maximum charge current | 10A/20A | 20A/30A | 10A/20A/30A/40A/50A/60A |
| SOLAR CHARGER | |||
| MAX.PV Array Power | 1000W | 1500W | 3000W/4000W |
| MPPT Range@ Operating Voltage | 30-66VDC | 30-115VDC | 60-115VDC |
| Maximum PV Array Open Circuit Voltage | 75VDC | 145VDC | 145VDC |
| Maximum Charging Current | 40A | 60A | 60A/80A |
| Maximum Efficiency | 98% | ||
| Standby power consumption | 2W | ||
| PHYSICAL | |||
| Dimension.D*W*H(mm) | 368*272*128 | 439*296*141 | 540*295*140/468*295*136 |
| Net Weight (kgs) | 7.4kg | 10kg | 11.5kg/13.5kg |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| Operating Temperature | 0°C to 55°C | ||
| Storage Temperature | -15°C to 60°C | ||
Inverter parallel function to expand capacity: Support 6 units max to reach 30KVA/30KW
