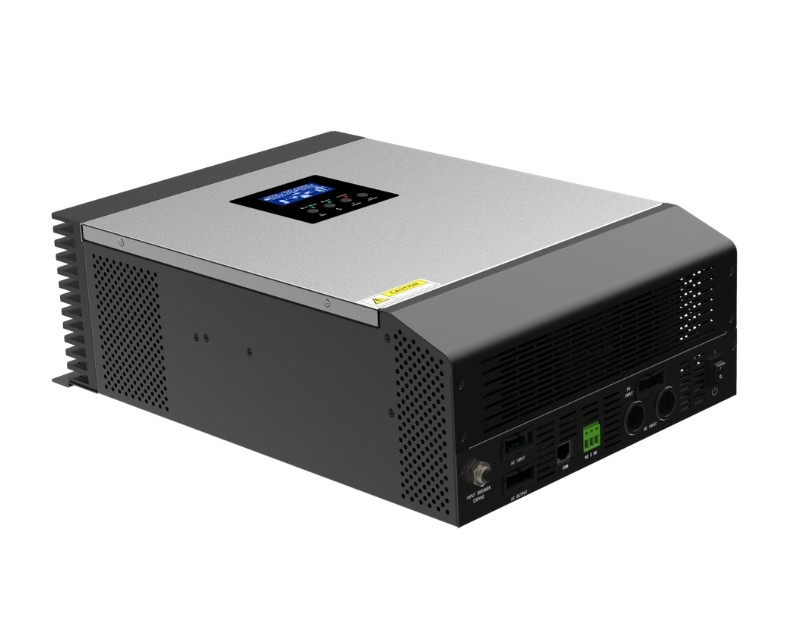

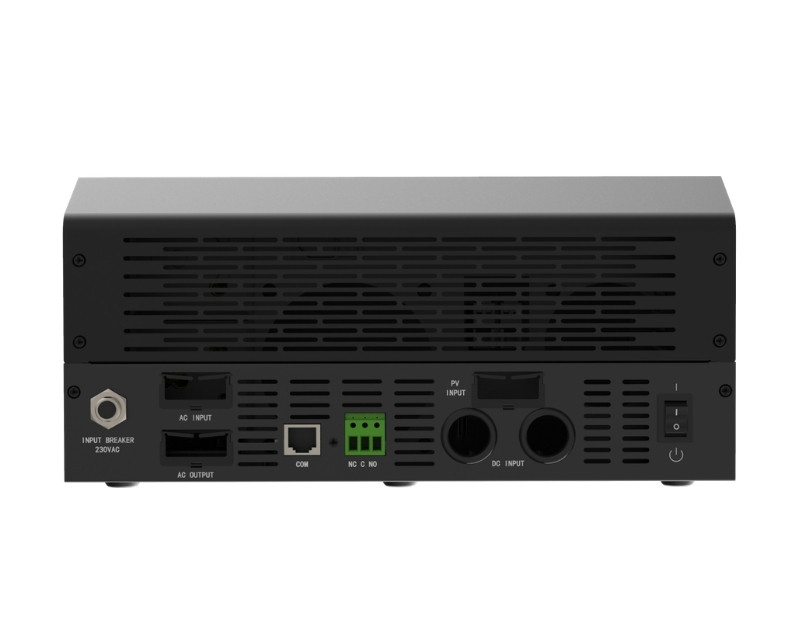

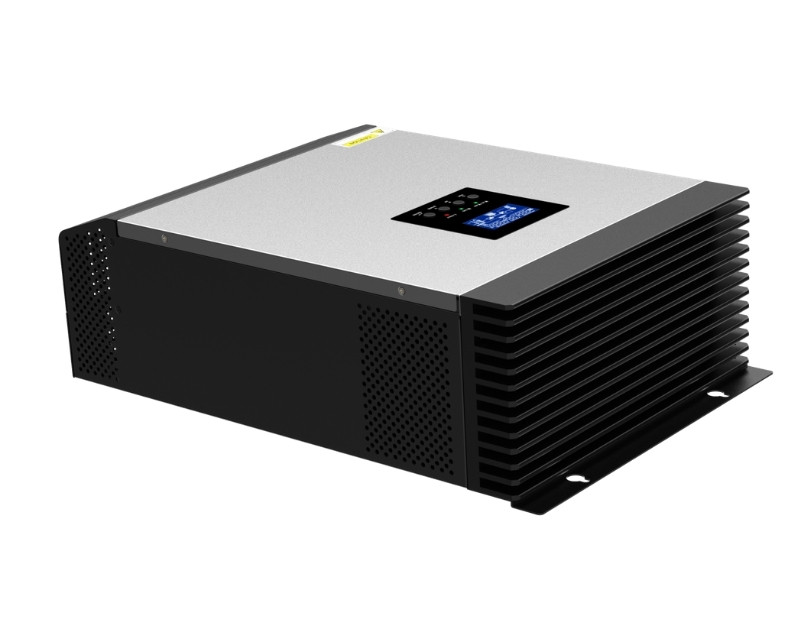

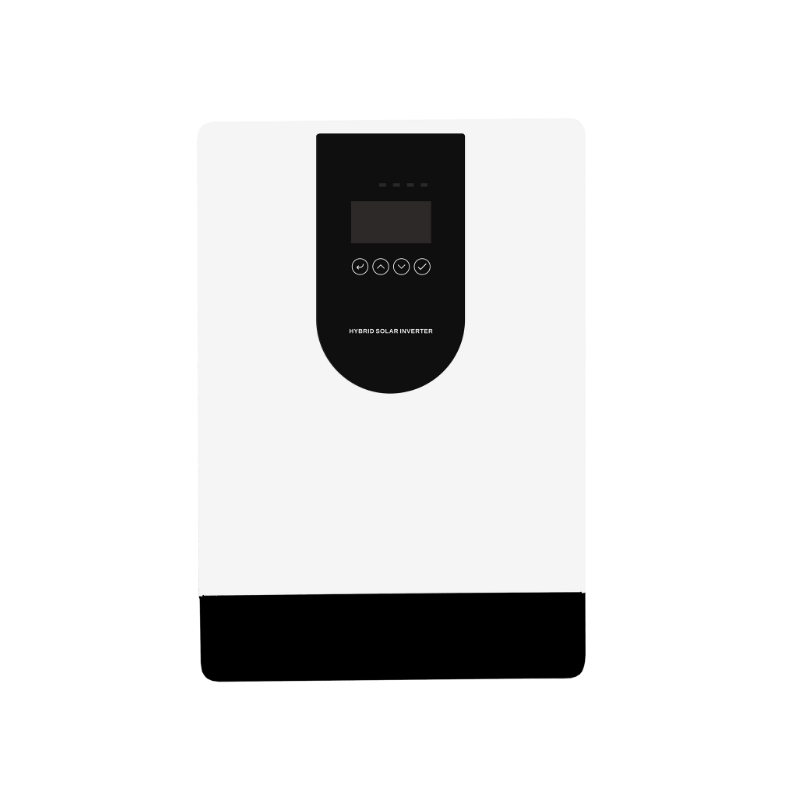

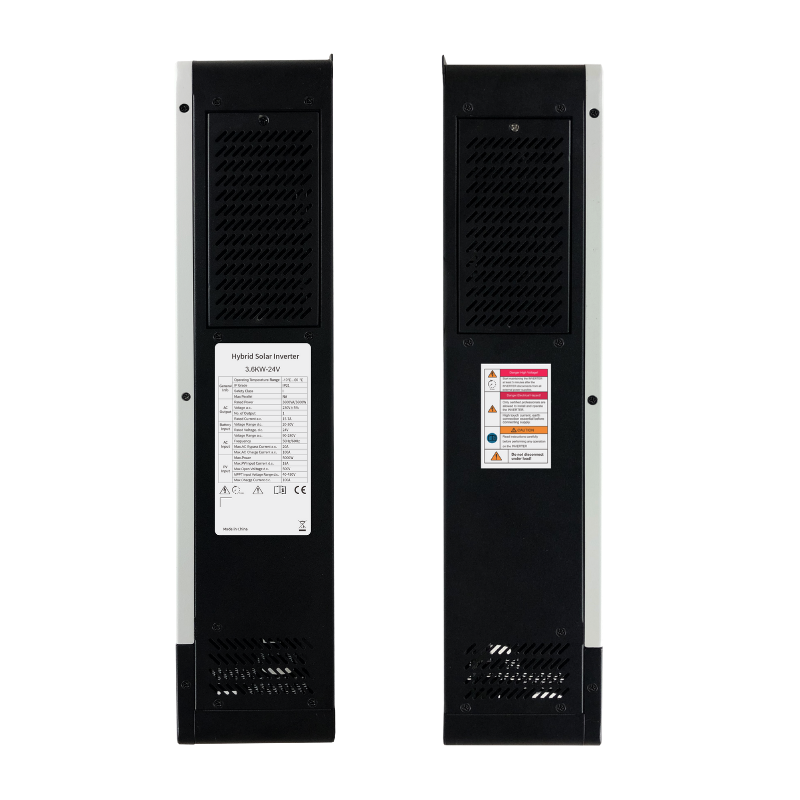

3KW 3KVA off-grid solar hybrid inverter with MPPT controller

3KW 3KVA off grid solar hybrid inverter with MPPT solar controller

  • Pure sine wave inverter
  • Built-in MPPT solar charge controller
  • Selectable input voltage range for home appliances and personal computers.
  • Selectable charging current based on applications

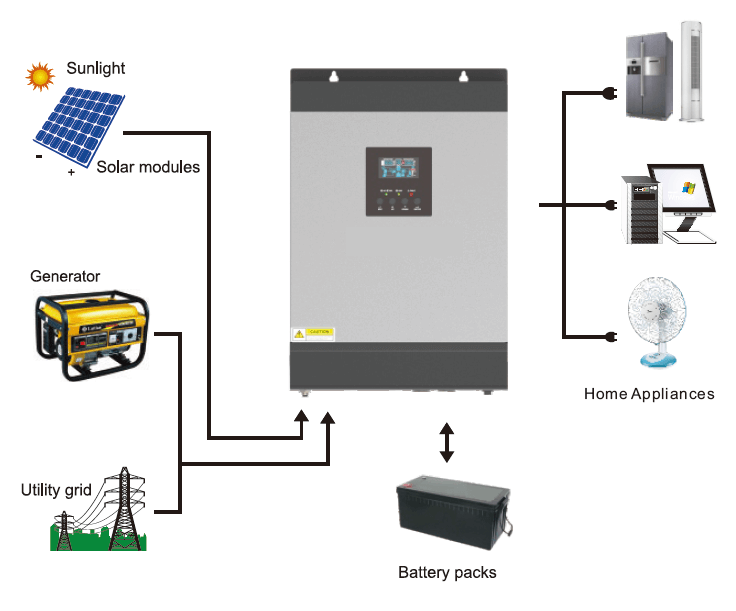

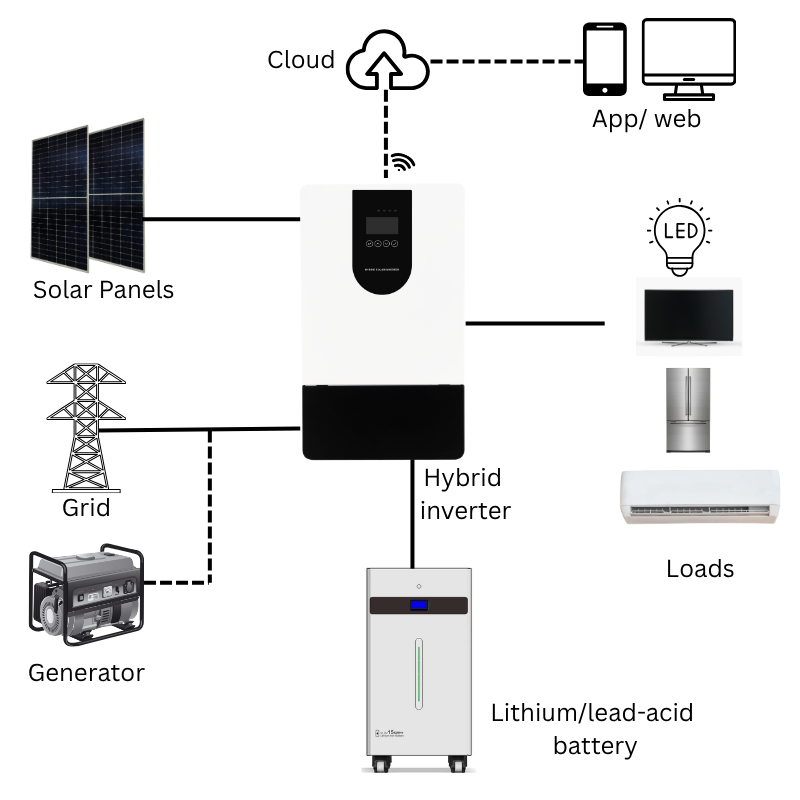

  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery performance



Model

MPS PLUS 1K-24 MPS PLUS 3K-24 MPS PLUS 5K-48
Rated Power 1000VA/1000W 3000VA/3000W 5000VA/5000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(for personal computers)
90-280VAC(for home appliances)
Frequency Range 50Hz/60Hz (Auto-sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC±5%
Surge power 2000VA 6000VA 10000VA
Efficiency(Peak)  90-93% 93% 93%
Transfer Time 10ms (for personal computers)
20ms (for home appliances)
Wave form Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 24VDC 24VDC 48VDC
Floating Charge Voltage 27VDC 27VDC 54VDC
Overcharge Protection 33VDC 33VDC 60VDC
Maximum charge current 10A/20A 20A/30A 10A/20A/30A/40A/50A/60A
SOLAR CHARGER
MAX.PV Array Power 1000W 1500W 3000W/4000W
MPPT Range@ Operating Voltage 30-66VDC 30-115VDC 60-115VDC
Maximum PV Array Open Circuit Voltage 75VDC 145VDC 145VDC
Maximum Charging Current 40A 60A 60A/80A
Maximum Efficiency 98%
Standby power consumption 2W
PHYSICAL
Dimension.D*W*H(mm) 368*272*128 439*296*141 540*295*140/468*295*136
Net Weight (kgs) 7.4kg 10kg 11.5kg/13.5kg
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature

-15°C to 60°C
