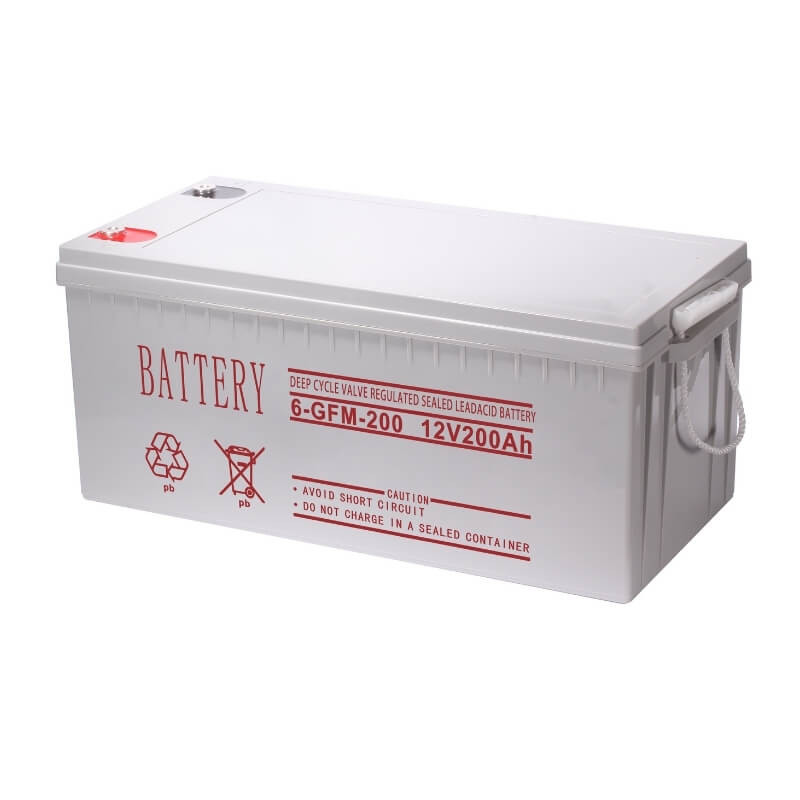

Free-maintenance gel/deep cycle/AMG battery 100AH 150AH 200AH 250AH 12V

Free-maintenance gel/deep cycle/AMG battery 100AH 150AH 200AH 250AH 12V for solar power system, telecom system

Specifications for 100AH 12V solar battery

Nominal Voltage

12V

Rated Capacity (10hour rate)

100Ah







Dimension

Total Height  (with terminals)

232mm

Height

211mm

Length

406mm

Width

173mm

Weight

31kg

Characteristics





Capacity 77℉(25℃)

10 hour rate (12A)

100Ah

5 hour rate (20.4A)

85Ah

1 hour rate (66A)

66Ah

Internal Resistance

Full charged Battery 77℉(25℃)

4.9mΩ



Capacity affected by Temperature

(10 hour rate)

104℉(40℃)

102%

77℉(25℃)

100%

32℉(0℃)

85%

5℉(-15℃)

65%



Self-Discharge 77℉(25℃)

Capacity after 3 month storage

91%

Capacity after 6 month storage

82%

Capacity after 12 month storage

65%

Max. Discharge Current  77℉(25℃



600A(60S)



Terminal

Standard

M8

Optional

copper







Charging

(Constant Voltage)







Cycle

Initial Charging Current24A or

  Small 14.20~14.80V 77℉(25℃)







Float

13.50~13.70V 77℉(25℃)
