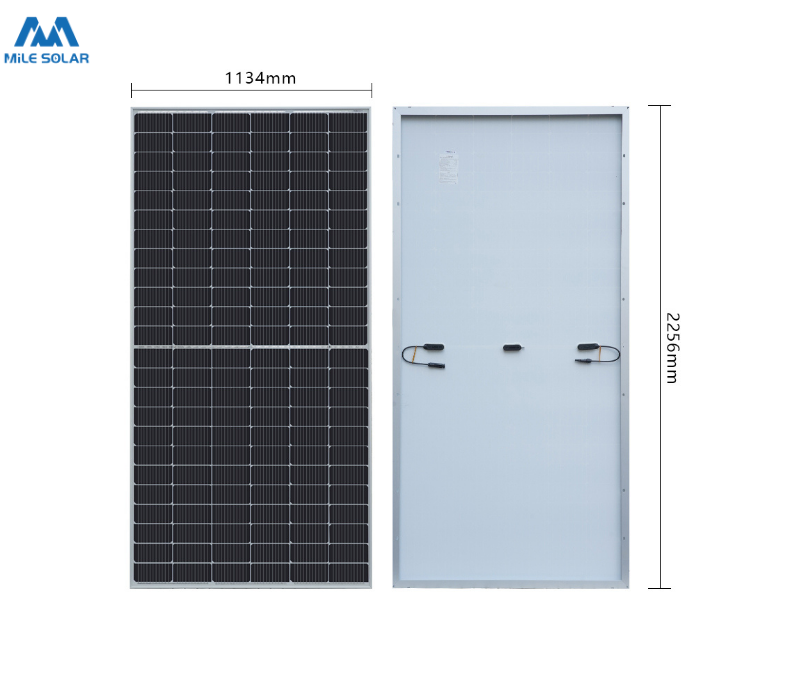

half cell mono PERC solar panel 540W with TUV certificate, A grade solar cell, higher efficiency, 10-year warranty for material and technology, 25-year linear power output warranty
| ELECTRICAL PARAMETERS AT STC | ||||||
| TYPE | JM-D525P-144M | JM-D530P-144M | JM-D535P-144M | JM-D540P-144M | JM-D545P-144M | JM-D550P-144M |
| Rated Maximum Power(Pmax) [W] | 525 | 530 | 535 | 540 | 545 | 550 |
| Open Circuit Voltage(Voc) [V] | 48.95 | 49.15 | 49.35 | 49.55 | 49.75 | 49.95 |
| Maximum Power Voltage(Vmp) [V] | 41.1 | 41.27 | 41.45 | 41.62 | 41.8 | 41.97 |
| Short Circuit Current(lsc) (A] | 13.67 | 13.74 | 13.82 | 13.89 | 13.97 | 14.05 |
| Maximum Power Current(lmp) [A] | 12.78 | 12.85 | 12.91 | 12.98 | 13.05 | 13.11 |
| Module Efficiency [%] | 20.30 | 20.50 | 20.70 | 20.90 | 21.10 | 21.30 |
| Power Tolerance | 0~+5W | |||||
| STC | Irradiance 1000W/m2, cell temperature 25℃, AM1.5G | |||||
| Remark | Electrical data in this catalog do not refer to a single module and they are not part of the offer. | |||||
| They only serve for comparison among different module types. | ||||||
