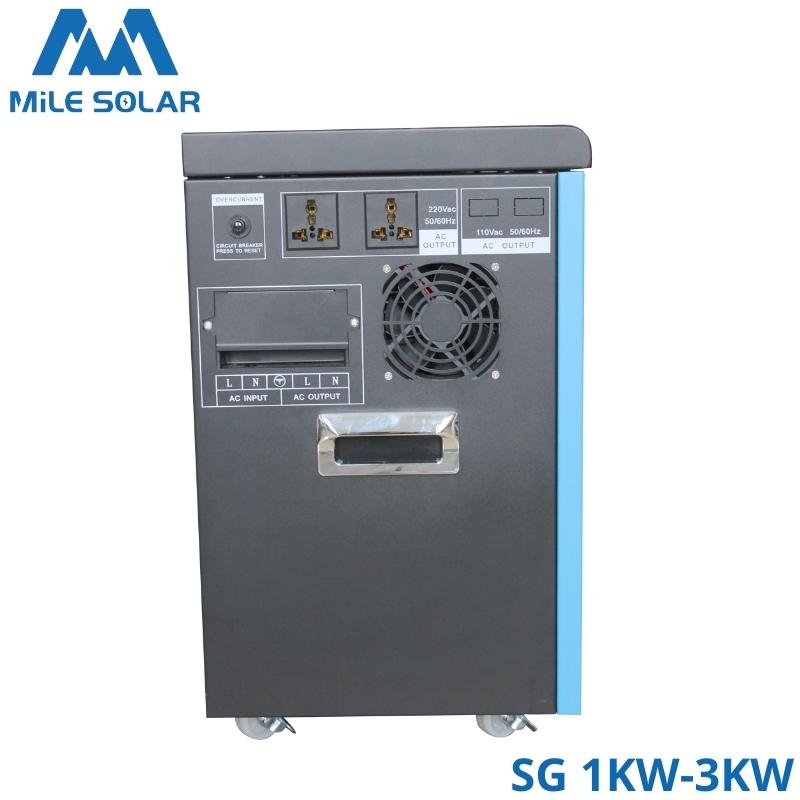

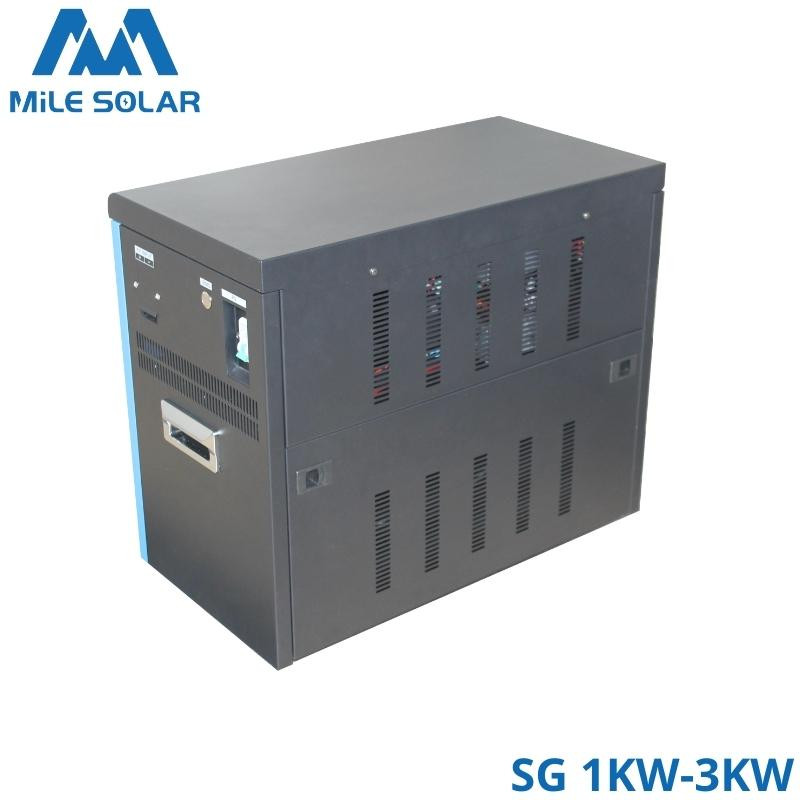

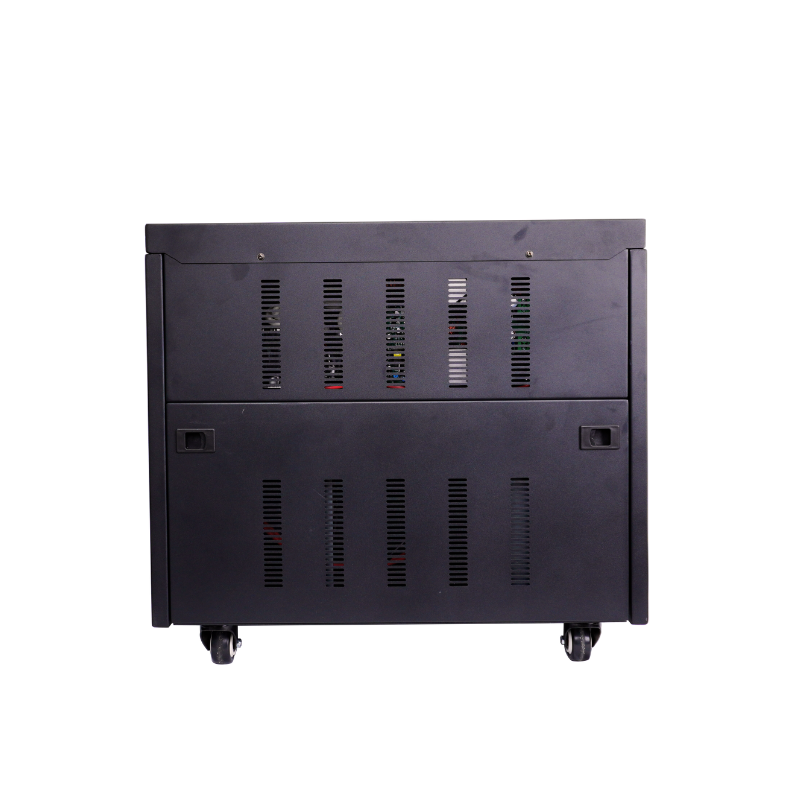

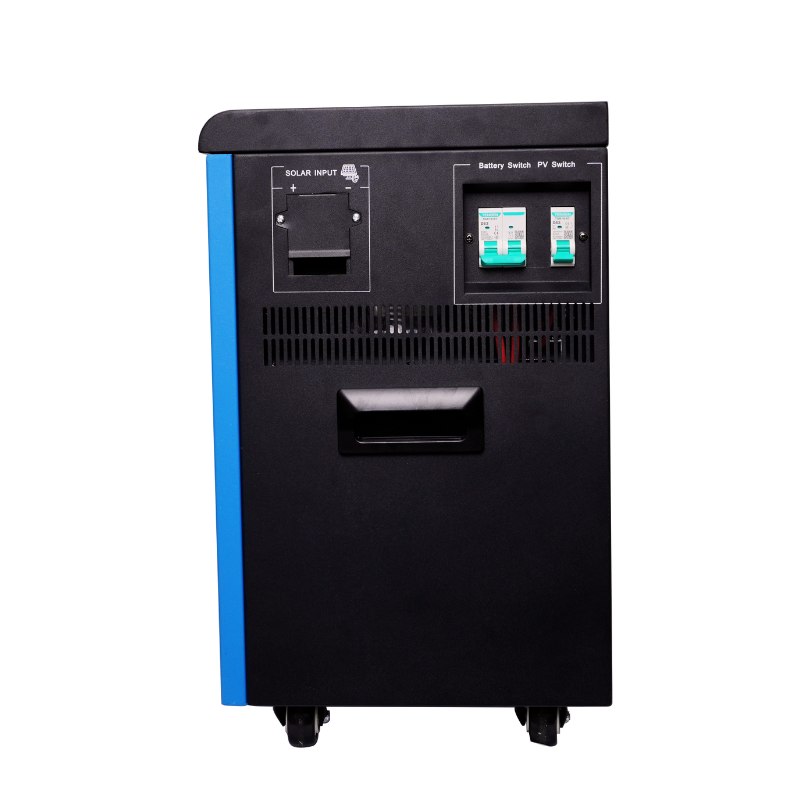

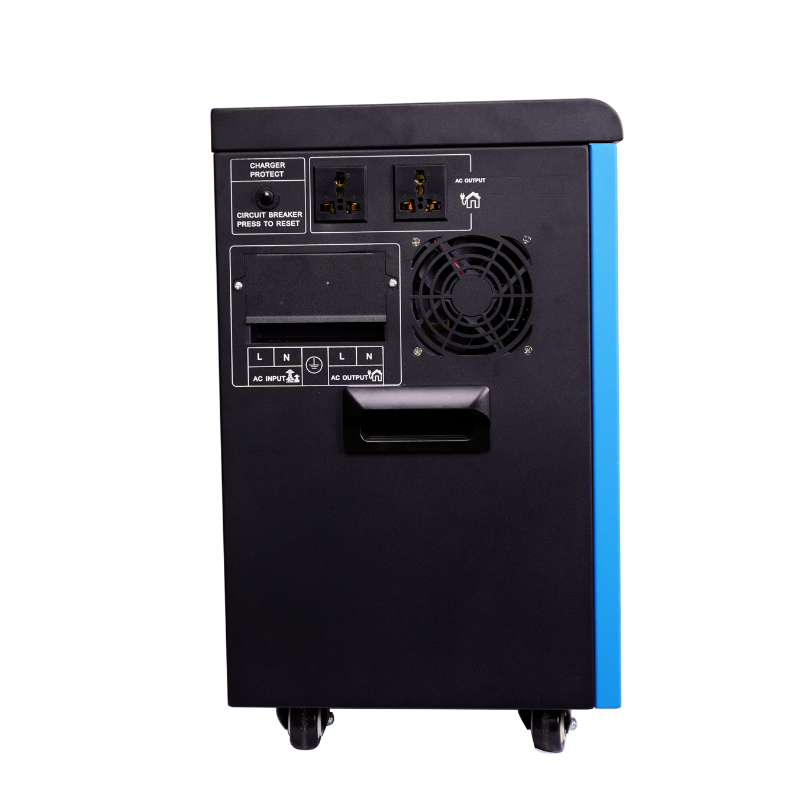

3KW portable solar generator with 60A MPPT controller and LiFePo4 battery

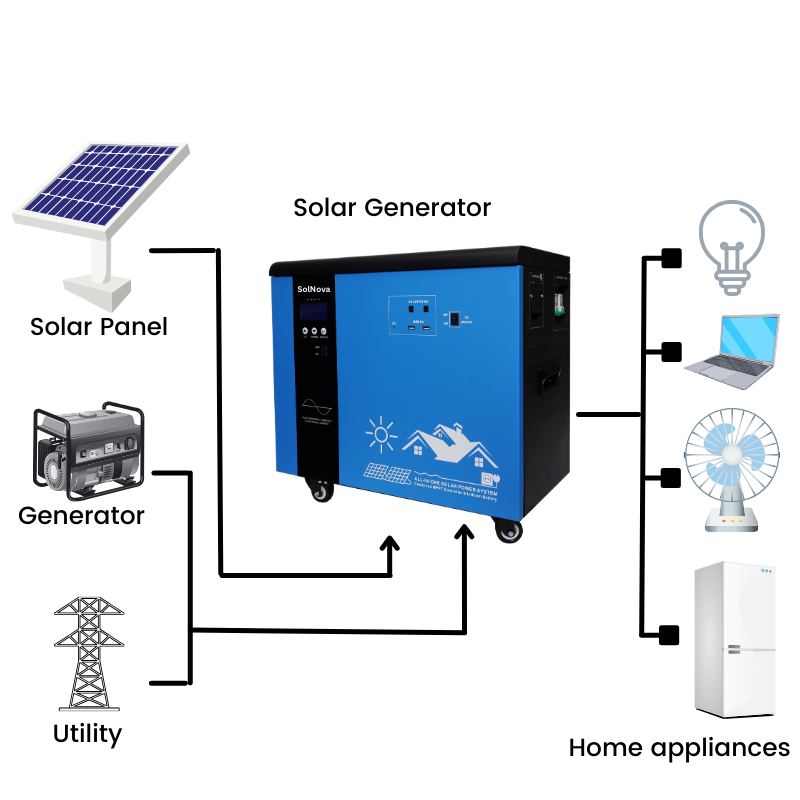

A powerful & portable solar generator 3KW 24V is good to power your 220VAC or 110VAC and 12VDC home appliances at the same time. It is all-in-one with a 3KW inverter, 60A MPPT solar controller and 200AH 24V LiFePo4 battery, which ensure easy installation and simple operation under safety at long working time. What you need to do is connecting it with solar panels to enjoy free electricity
- Compatible for household appliances with AC 220V or 110V, DC 12V and USB 5V output port.
- Plug & play design for simple installation
- Safety with full electrical protection, all with PV and battery breaker.
- LCD & LED display for system parameters and status
- Built-in pure sine wave inverter for wide-range of appliances, durable and stable
- Maximum solar generation with over 99% efficiency MPPT solar charge controller
- Inbuilt -in LiFePo4 Lithium battery with over 2000 cycles
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample order/trial order for you testing by 1 product or mixed solar products.
Q2: When will you deliver the goods?
A: 3-5 working days for sample order; 7-15 working days for quantity order after receiving the deposit payment.
Q3: Do you offer a guarantee for your solar products?
A: Yes, 18 months for inverter and inverter related products including solar generator, solar inverter. 2 years for solar lights.
Q4: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for inverter, solar inverter, MPPT solar controllers, solar generator and solar lights.
Please send you detailed request to our sales specialist for best quote.
| Model: | SG1K | SG2K | SG3K | |
| Rated Power | 1000W | 2000W | 3000W | |
| Bat. Voltage | 24V | 24V | 24V | |
| Inside Solar | 30A | 30A OR 60A | 30A OR 60A | |
| Size(L*W*H) | 595*300*550mm | 605*550*525mm | 605*550*525mm | |
| Packing Size(L*W*H) | 630*340*610mm | 650*600*590mm | 650*600*590mm | |
| N.W.(kg) | 490*240*230mm | 490*500*230mm | 490*500*230mm | |
| G.W.(kg) | 18KG | 28KG | 30KG | |
| 23KG | 35KG | 38KG | ||
| AC Input | Voltage Range | 165VAC-265VAC | ||
| Frequency Range | 45Hz-65Hz | |||
| AC Output | Voltage Range | 220Vac±5% | ||
| Frequency Range | 50Hz/60Hz±1% | |||
| Solar Controller | controller type | MPPT | ||
| Charging Current | 30A | 30A OR 60A | 30A OR 60A | |
| PV Input Voltage Range | 12V System:26V-130V; 24V System:36V-130V; 48V System:65V-130V |
|||
| Optimum voltage range | 12V System:30V-60V; 24V System:60-80V; 48V System:80V-120V |
|||
| PV Array Max Power | 12V:360W/24V:750W; 24V System:750W/1440W; 48V System: 1440W/2800W |
|||
| Output Wave | Pure Sine Wave | |||
| Total Harmonic Distortion |
< 3%(Linear load) | |||
| Transfer Time | <4ms | |||
| Efficiency | ≥85% | |||
| Working Mode | Battery First | When battery voltage ≤9.5V, switch to mains power | ||
| AC First | mains first with AC charging | |||
| Saving energy mode | Load power <10% , turns off, >11%-100% turns on | |||
| AC Charging Current |
5A/10A/20A/30A(Four gears available) | |||
| Battery Type | Lead acid battery/lithium battery/lron lithium battery | |||
| Display | LCD+LED | |||
| Thermal method | Cooling fan in intellingent control | |||
| Communication | RS232 or WIFI (customization) | |||
| Protection | Bat. low voltage alarm | 20.6V | ||
| Bat. low voltage Protection | 20V | |||
| Bat. over voltage Protection | 33V | |||
| Bat. overvoltage alarm | 32V | |||
| Over Power Protection | 120% more than rated capacity | |||
| Temperature Protection | >85*C alarm, >90*0 machine shut off | |||
| AC Output short circuit | YES | |||
| Environment | Noise | ≤55dB | ||
| Temperature | -10°C-40°C | |||
| Humidity | 0%-95% (Nocondensation) | |||
| DC output | 5VDC USB output port | 2pcs/max 2A | ||
| 12VDC output port | 2pcs/max4A | |||
| Battery space | 595*300*550mm (24V 100AH) |
490*600*230mm (24V 200AH) |
||
3KW portable solar generator for home, shops, stores, small farms
