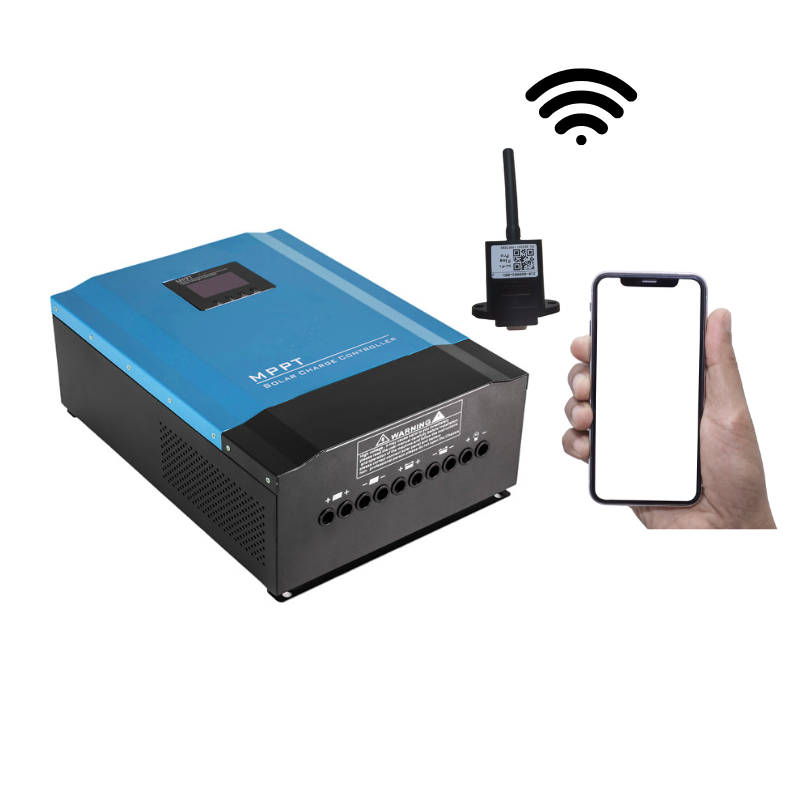

MPPT solar charge controller 60A 12/24/36/48V auto with PV max 150VDC

Original MPPT solar charge controller 60A 12/24/36/48V auto voltage, high efficiency up to 99%, more output for fast battery charged.

60A MPPT solar charge controller.

12/24/36/48V auto voltage;

PV max input voltage 150VDC;

Efficiency up to 99%;

Support lead acid AGM battery, gel battery, Li-ion or LiFePo4 lithium battery;

Support lithium battery activation, no need to reset MPPT solar controller during working.


Q1: Can I have a sample/trial order for a test?

A: Yes, we accept sample order/trial order for you testing by 1 product or mixed solar products.


Q2: When will you deliver the goods?

A: 3-5 working days for sample order; 7-15 working days for quantity order after receiving the deposit payment.


Q3: Do you offer a guarantee for your solar products?

A: Yes, 18 months for inverter and inverter related products including solar generator, solar inverter. 2 years for solar lights.


Q4: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders for inverter, solar inverter, MPPT solar controllers, solar generator and solar lights.

Please send you detailed request to our sales specialist for best quote.


Model MC30 MC60
Rated maximum charge current 30A  60A
System voltage 12V/24V/36V/48V Auto
Maximum PV input voltage 150VDC
MPPT working voltage 18V-130V(12V system); 36V-130V(24V system);
54V - 130V(36V system); 65V-130V(48V system)
Optimal PV range 18V-130V(12V system); 36V-90V(24V system);
80V-120V(48V system)
PV input power 12V system 400W 720W
24V system 720W 1440W
36V system 1080W 2160W
48V system 1440W 2880W
Battery type lead acid AGM, Gel, deep cycle, LiFePo4, Li-ion lithium, or customized battery
High voltage of battery protection 15V for single battery 12V
Boost recovery voltage 13.8V for single battery 12V
Low voltage recovery  12.5V for single battery 12V
Under-voltage shutdown 9.9V
Charging type MPPT automatic maximum power point tracking.
Charging mode Three-stage: constant current (MPPT), constant voltage, floating charge.
Protection Overvoltage/ overcurrent/ high temperature/ solar reverse connection
Cooling method  Intelligent cooling fan
IP level IP20
Environment Temperature -15~+50°C
Humidity <95%
Appearance Product size 250*200*110mm(L*W*H)
Packing size 265*215*125mm
Net weight 2.6 kg 3 kg
Gross weight 3 kg 3.4 kg
