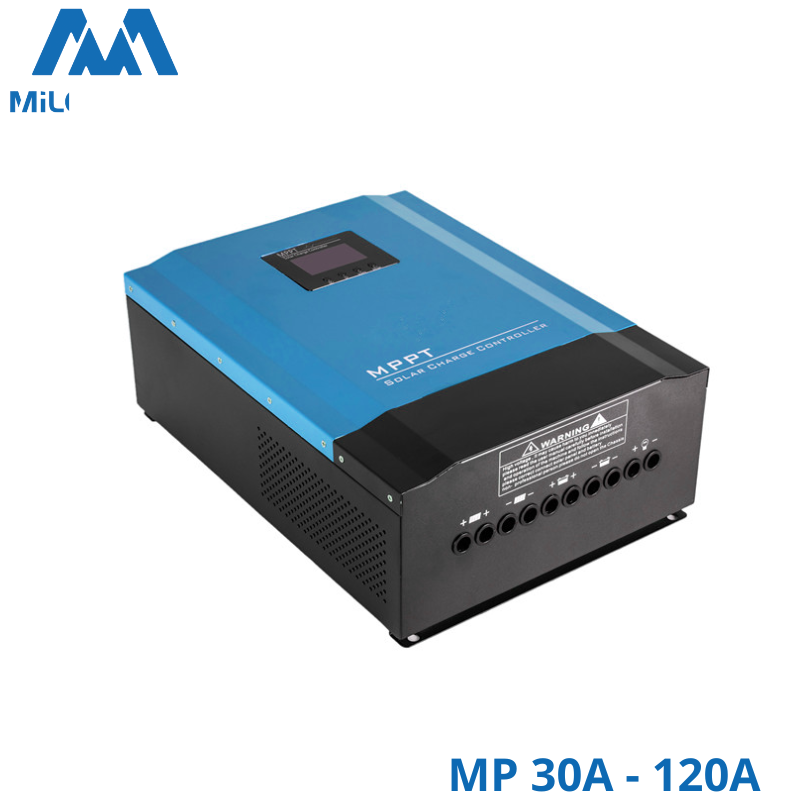

80A 100A 48V 96V MPPT solar charge controller 80amp 100amp
MPPT solar charge controller 80A 100A 48V/96V auto at 250VDC of PV max voltage with over 99.5% tracking efficiency that can charge multiple batteries including lead-acid, gel, lithium battery.
Main features for MPPT solar charge controller 80A 100A:
- Over 99.5% MPPT efficiency, product efficiency up to 98%
- Three-stage charging mode for battery good performance and long life
- 48V 96V auto
- PV max voltage 250VDC
- LCD display
- RS485 communication
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample order/trial order for you testing by 1 product or mixed solar product.
Q2: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for inverter, solar inverter, MPPT solar controllers, solar generator and solar lights.
Please send you detailed request to our sales specialist for best quote.
Q3: When will you deliver the goods?
A: 3-5 working days for sample order; 7-15 working days for quantity order after receiving the deposit payment.
Q4: Do you offer a guarantee for your solar products?
A: Yes, 18 months for inverter and inverter related products including solar generator, solar inverter. 2 years for solar lights.
| Chasing SUN-48V/60V/72V/96V | Chasing sun - 80A | Chasing sun - 100A | ||
| Product category | Solar controller | MPPT (maximum power point tracking) | ||
| MPPT efficiency | >99.5% | |||
| Standby power | <3W | |||
| System voltage | 48V/96V auto | |||
| Cooling method | Forced air cooling | |||
| Input Characteristics | maximum input voltage(Voc.max) | DC250V | ||
| Starting charging voltage | 48V system: DC65V; 96V system: DC130V | |||
| Input low voltage protection voltage | 48V system: DC60V; 96V system: DC120V | |||
| Input overvoltage protection/recovery voltage | DC250V | |||
| Rated power input | 48V system | 4250W | 5300W | |
| 96V system | 8500W | 10600W | ||
| Charge Characteristic | Type of battery | sealed lead acid, Colloid sealed lead acid, Liquid rich battery, user-defined, lithium-ion battery | ||
| Rated maximum charging current | 80A | 100A | ||
| Charge Method | Stage 3: CC (quick charging) - CV (constant voltage charging) - CF (floating charging) | |||
| LOAD Characteristics | load voltage | The same with the battery voltage | ||
| Load rated current | 60A | |||
| Load control mode | Normally on/off mode, light control mode, double time control mode, light control delay mode | |||
| Display & Communication |
Display | HD LCD color segment code display | ||
| Communication | Rs485（optional） | |||
| Other Parameters | Protections | Input-output over/under voltage protection,Prevention of connection reverse protection,battery shedding protection etc. | ||
| Operating ambient temperature | -20°C~ + 50°C | |||
| storage temperature | -40°C~ + 70°C | |||
| IP level of protection | IP21 | |||
| Max. connection size | 35mm2 | |||
| N.W(kg) | 5.8 | |||
| G.W(KG) | 6.2 | |||
| Product size(mm) | 322*242*117 | |||
| Packing size(mm) | 422*287*186 | |||

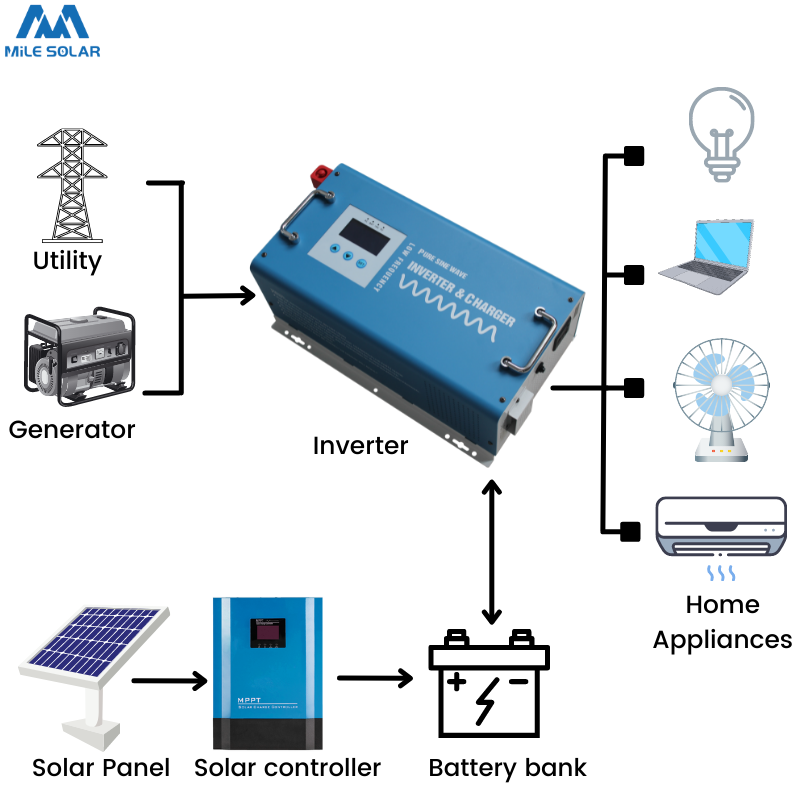

MPPT solar charge controller widely used in off-grid solar power systems to regulate battery charging.
