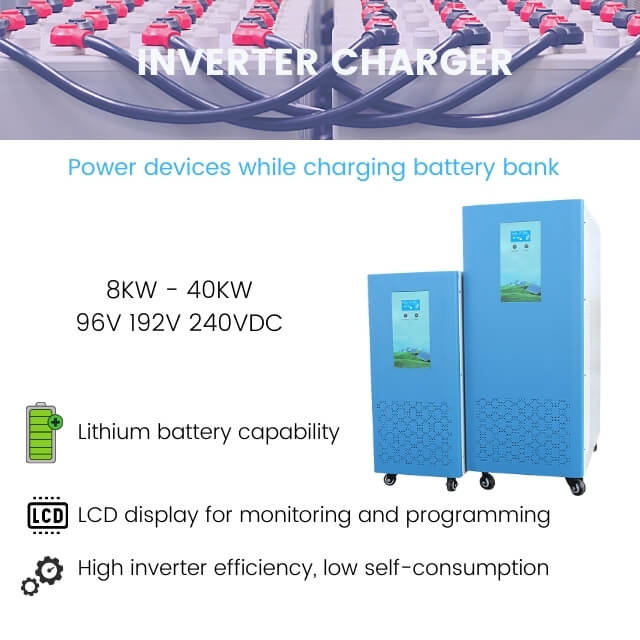

8KW 10KW 12KW 15KW 20KW 30KW 40KW IGBT power inverter charger

Our HI series IGBT Power Inverter Charger/Off-Grid Inverter is the ultimate solution for reliable and efficient power management. Whether you seek backup power for emergencies or dream of going off-grid, this inverter empowers you to take control of your energy needs.

  • QUALITY
    QUALITY
  • WARRANTY
    WARRANTY
  • RELIABILITY
    RELIABILITY
  • CUSTOMIZE
    CUSTOMIZE
  • HI-8KW/10KW/12KW
  • HI-15KW/20KW/25KW
  • HI-30KW/40KW
  • 8KW/10KW/12KW
  • 96VDC/120VDC/180VDC/192VDC
  • Single phase 220V/230V/240V or 110V/120V
  • Single phase 220V/230V/240V or 110V/120V
  • AC first, DC first
  • 15KW/20KW/25KW
  • 192VDC/240VDC/360VDC
  • Single phase 220V/230V/240V or 110V/120V
  • Single phase 220V/230V/240V or 110V/120V
  • AC first, DC first
  • 30KW/40KW
  • 360VDC
  • Single phase 220V/230V/240V or 110V/120V
  • Single phase 220V/230V/240V or 110V/120V
  • AC first, DC first

PRODUCT FEATURES

ROBUST AND RELIABLE FOR ANY ENVIRONMENT

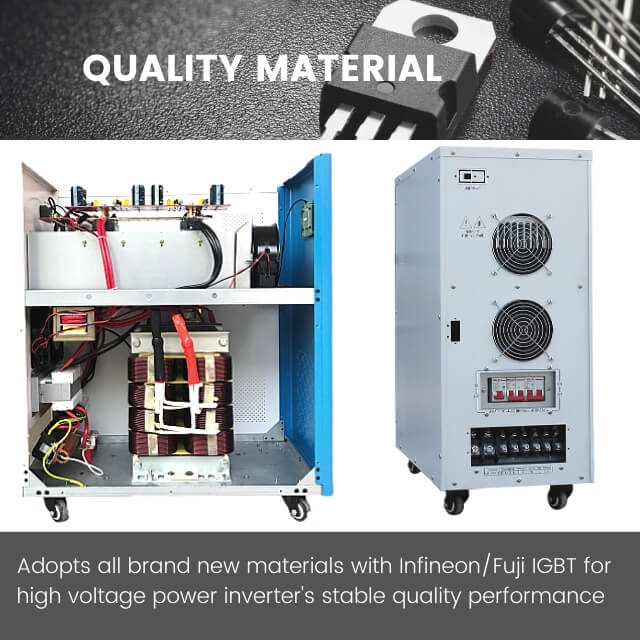

* IGBT module drive, robust capacity from 8KW - 40KW single phase
* Support homes, businesses, and even industrial applications

USER-FRIENDLY DESIGN

* Intuitive interface to set suitable working for different applications.
* Mains first with battery charging for backup power system
* Solar power first to get full use of green energy

WORK WITH KINDS OF BATTERY

* Work with gel, AGM, LiFePo4, or other user-defined battery
* Utility battery charging current 0A - 30A option.

SAFETY AND PROTECTION AT THE CORE

* Full protections against over-load, over-voltage, over-charge, over-discharge, short-circuit etc.

Feature

TECHNICAL SPECIFICATIONS FOR IGBT INVERTER 8KW - 40KW



Model HI-8KW HI-10KW HI-12KW HI-15KW HI-20KW HI-25KW HI-30KW HI-40KW
Rated power 8KW 10KW 12KW 15KW 20KW 25KW 30KW 40KW
Peak power 24KW 30KW 36KW 45KW 60KW 75KW 90KW 120KW
Nominal battery voltage 96V/192VDC 192V/240VDC 360VDC
Input DC input range 84-128VDC(96V)/ 168-256VDC(192V)/ 210- 320VDC(240V)
AC Mains input range 165-265VAC(220VAC)
AC input frequency 50Hz: 45-65Hz/60Hz: 55-65Hz±0.5Hz(50Hz/60Hz automatic recognition)
Protection Low battery alarm 82.4VDC(96V)/ 164.8VDC(192V)/ 206VDC(240V)/309VDC(360V)
Low battery protection 80VDC (96V)/ 160VDC(192V)/ 200VDC(240V)/300VDC(360V)
High battery alarm 128VDC(96V)/ >256VDC(192V)/ >320VDC(240V)/ 480VDC(360V)
High battery protection 132VDC(96V)/ 264VDC(192V)/ 330VDC(240V)/ 495VDC(360V)
Overload protection 120%
High temperature Built-in temperature real-time sensor, ≥85°C alarm, ≥90°C automatic shutdown
Short circuit protection Yes
Output efficiency >85%
Output voltage (DC battery mode)220VAC±5% 110VAC±5%
Output frequency (DC battery mode)60/50Hz± 1%

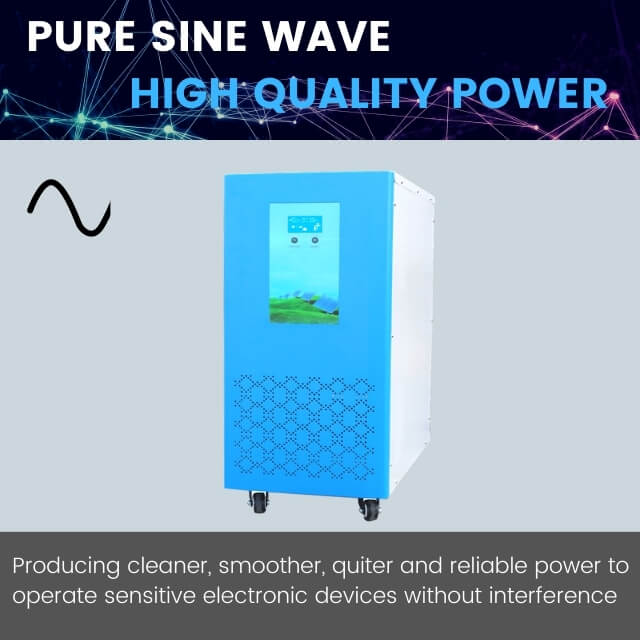

Output waveform Pure sine wave
Output voltage (AC mains mode)stable 220/230/240VAC± 5% output
AC mains mode AC mains > 170VAC±5% switch to DC battery mode, AC mains > 180VAC±5% return to AC mains mode;
AC mains > 275VAC±5% switch to DC battery mode, AC mains > 255VAC±5% return to AC mains mode;
The above is for 220V output for reference
Output frequency (AC mains mode)automatic tracing from AC input
Other Transfer time Built-in AC bypass replay  (4ms)

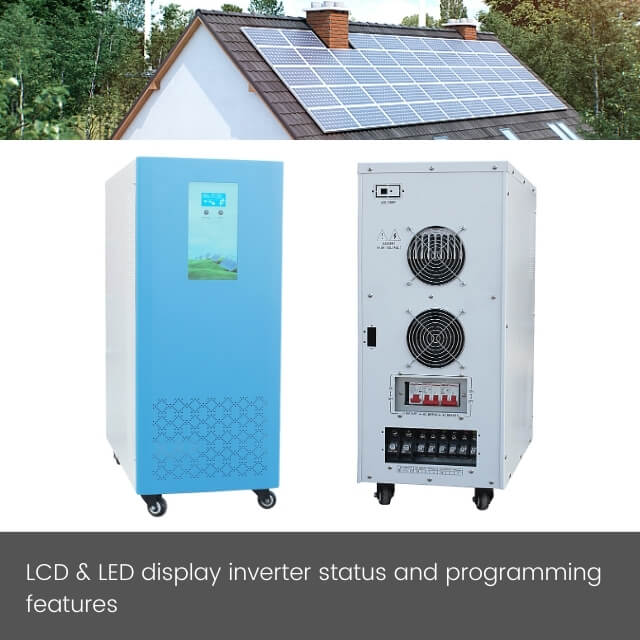

Display LCD Display with function buttons
Cooling system Intelligent cooling fan control system W42°C slow fan, W45°C fast fan
AC Charger battery types mode Gel, AGM, Li-ion, LiFePo4 battery, customized
AC charging voltage 112-128VDC(96V)/224-288VDC(192V)/ 280-320VDC(240V)/ 420-480VDC(360V)
AC charging current 0-30A:5A/10A/20A/30A  4 stages charging current adjustable
3 Stages charging Boost charging, direct charging, float charging
AC overcharge protection Battery voltage  ≥132VDC(96V)≥264VDC(192V)≥330VDC(240V) ≥495VDC(360VDC), stop charging after 60s alarm
Communication RS-232/USB/SNMP(additional)
Environment Temperature -10~+40°C
Humidity <95%
Appearance Product size 580*290*675mm 690*360*870mm

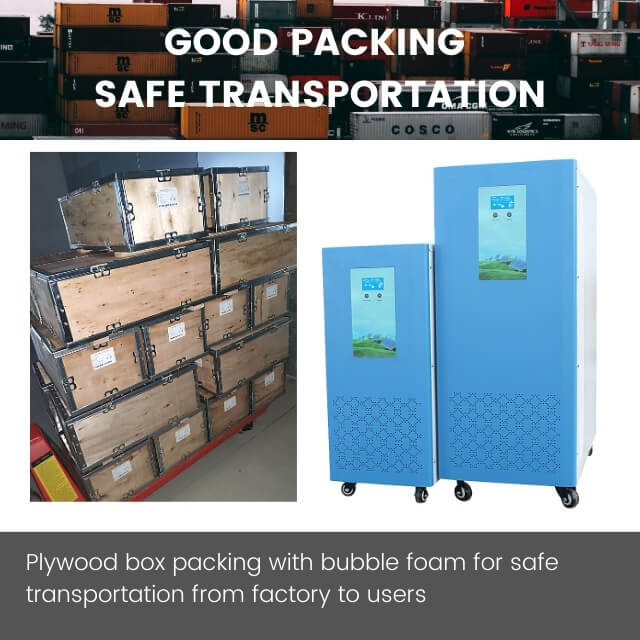

Packing size 690*360*830mm 760*430*830 mm
Net weight 69 kg 77 kg 84 kg 108 kg 129 kg 138 kg 180kg 210 kg
Gross weight 85 kg 94 kg 100 kg 130 kg 148 kg 158 kg 210 kg 240 kg

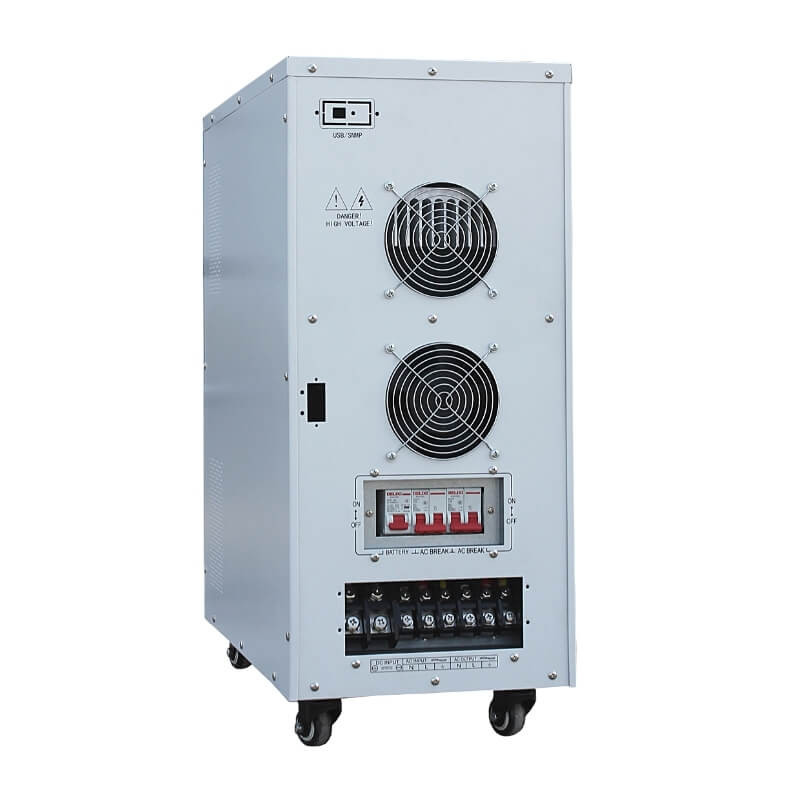

More detailed photos for IGBT Inverter 8KW - 40KW

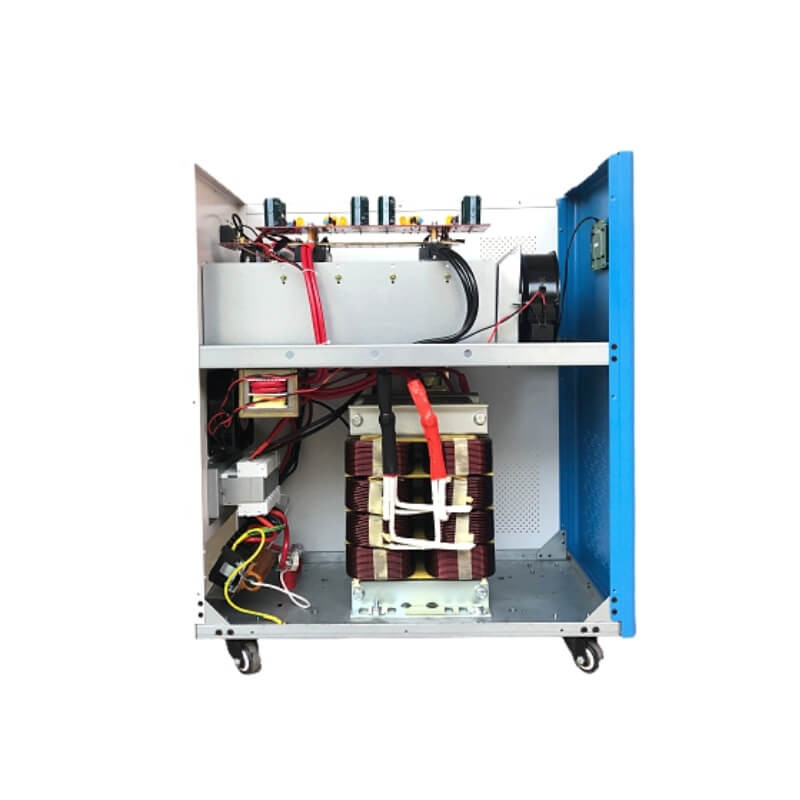

inverter inside.png15kw-INVERTER-SINGLE-PHASE.png

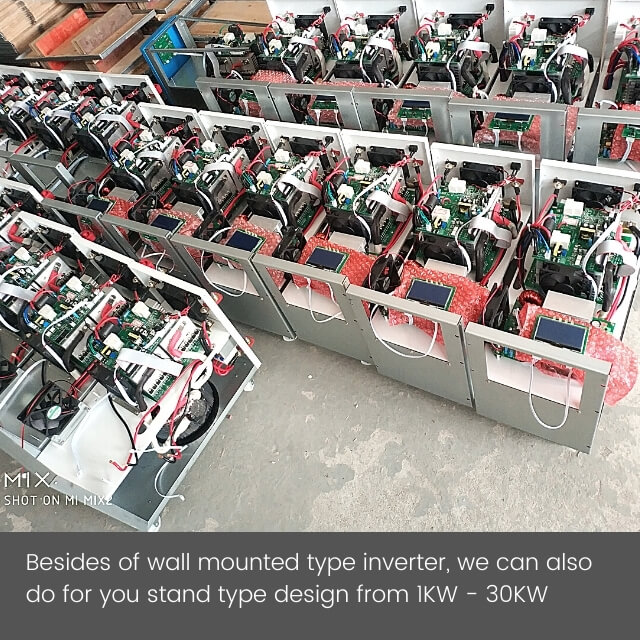

Bulk quantity production and container loading regarding our IGBT Inverter Charger






Our customer's feedback for IGBT inverter used in the backup power system and off-Grid solar power system

12KW-BACKUP-POWER SYSTEM.png



MILE SOLAR, with over 12 years of professional experience in the solar industry, understands how to tailor solutions for each specific application.



Let us put our expertise to work for you, delivering reliable, efficient, and customized solar solutions that exceed your expectations. Contact us to discuss your project requirements and take a step towards a greener and more sustainable future.







FAQ

Q1: Can I have a sample/trial order for a test?

A: Yes, we accept sample order/trial order for you testing by 1 product or mixed solar products.



Q2: When will you deliver the goods?

A: 3-5 working days for sample order; 7-15 working days for quantity order after receiving the deposit payment.



Q3: Do you offer a guarantee for your solar products?

A: Yes, 18 months for inverter and inverter-related products including solar generator, solar inverter. 2 years for solar lights.



Q4: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders for inverters, solar inverter, MPPT solar controllers, solar generator and solar lights.

Please send your detailed request to our sales specialist for the best quote.







WORKING DIAGRAM FOR IGBT INVERTER 8KW - 40KW

A. Uninterrupted Power When You Need It Most -Reliable Backup Power Inverter.



It combines with inverter, battery charger, and auto-transfer switch into a single device. Its working principle involves converting DC (direct current) power from a battery into AC (alternating current) power to supply electricity to connected loads during a power outage, while simultaneously charging the battery from an external AC power source.



B. Embrace Freedom with our Off-Grid Solar Inverter - Powering Your Independence



An inverter used in an off-grid solar system works on the principle of converting DC power generated by solar panels into AC power for supplying electricity to connected loads in an independent, standalone system.





C. Unlock the Power of the Sun with Our Solar-First, Mains Complementary Inverter



An inverter used in a solar-first, mains complementary system works on a priority-based principle, where solar energy is given precedence over the mains power supply. The inverter intelligently manages power sources to maximize the use of solar energy while seamlessly switching to mains power when solar production is insufficient.

INVERTER USED IN BACKUP POWER SYSTEM
INVERTER USED IN OFF-GRID SOLAR SYSTEM
INVERTER USED IN A SOLAR FIRST, MAINS COMPLEMENTARY SYSTEM

APPLICATIONS OF IGBT INVERTER 8KW - 40KW

A. Inverter used in backup power system



The application for inverters used in backup power systems is to provide a reliable and seamless power supply during utility grid outages or disruptions. Backup power systems, often referred to as uninterruptible power supply (UPS) systems, are used in various settings to ensure continuous electricity for critical loads when the primary power source fails. Some common applications of inverters used in backup power systems include residential backup power, commercial and office buildings, healthcare facilities, data centers and IT infrastructure, industrial applications, telecommunication towers and base stations, emergency response centers, educational institutions, retail outlets, public facilities



B. Inverter used in off-grid systems

Inverters used in off-grid systems serve a crucial role in providing reliable and usable AC power from DC sources, such as batteries and solar panels. Off-grid systems operate independently of the utility grid, making them suitable for locations where the grid connection is not available or practical. The application of inverters in off-grid systems is diverse and includes: remote areas and rural electrification, cabin and vacation homes, telecommunication and monitoring systems, off-grid solar PV systems, off-grid industrial applications, disaster relief and emergency response, agriculture and farming, remote monitoring and surveillance, military and defense, sustainable living and eco-resorts.

BACKUP POWER SYSTEM
COMMERCIAL AND OFFICE BUILDINGS
INDUSTRIAL APPLICATIONS
AGRICULTURE AND FARMING
TELECOMS AND BASE STATIONS
VACATION RESORT
