This is IGBT module drive of huge DC to AC pure sine wave inverter charger 20KW 192VDC to 110VAC/220VAC single phase. This off-grid, backup power 20KW inverter is perfect for business, hotels, large homes, farms and other applications that require huge amounts of backup power.
* 20KW power inverter 192VDC to 110VAC 120VAC 220VAC 240VAC single phase

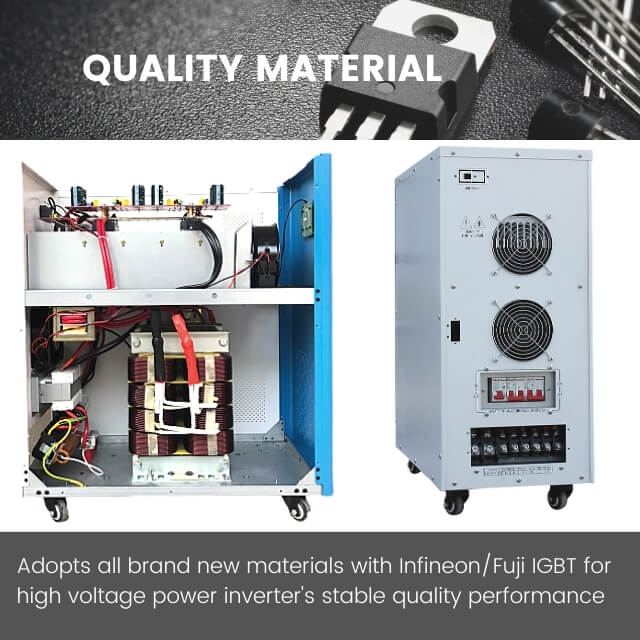

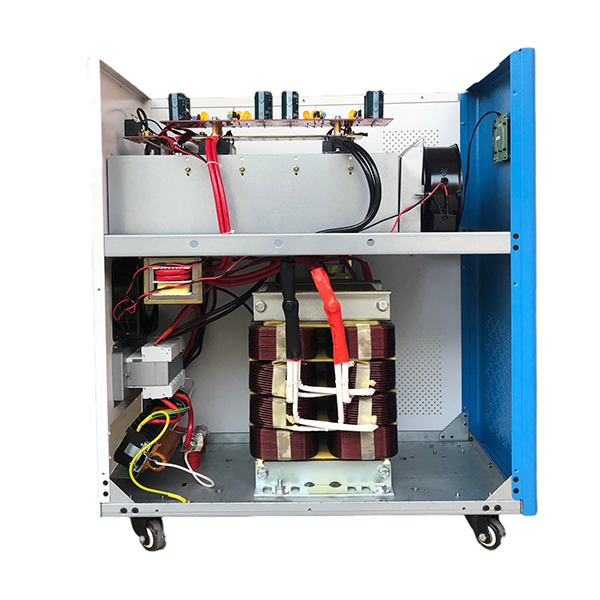

* IGBT module drive pure sine wave inverter, reliable and stable performance
* Low frequency preventing RF interference

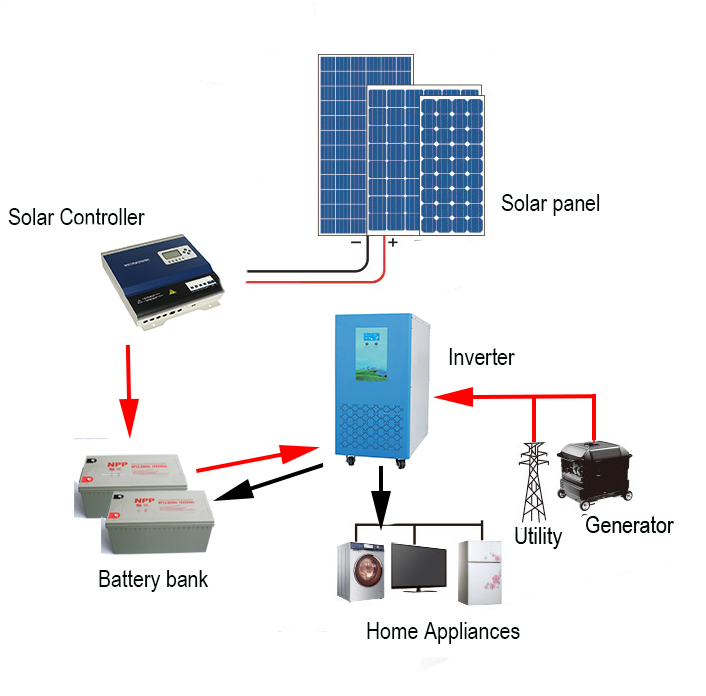

* DC/AC priority working mode adjustable, suite for off-grid and backup power system
* Simple design for convenient maintenance
* 4 types battery selectable: Gel, AGM, Li-Ion, LiFePo4 battery or customized.

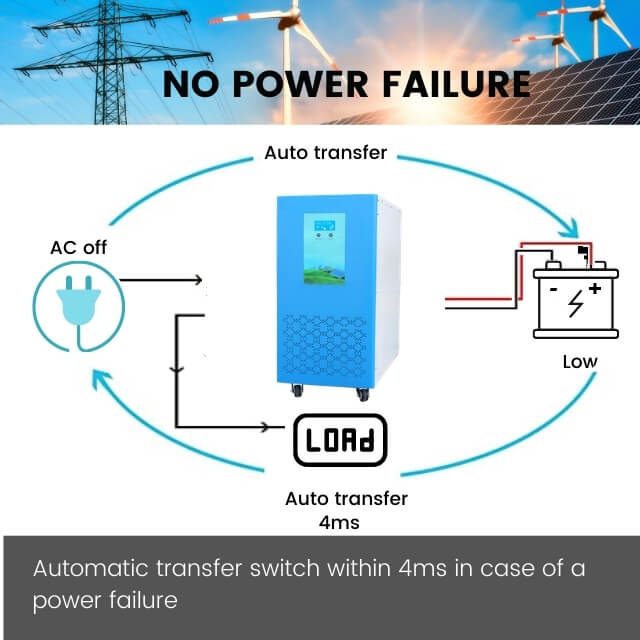

* Automatically transfer between battery and line modes by 4ms.
* Protection against: Over load, over temperature, overcharging and/ over-discharging for battery,Output short-circuit protection

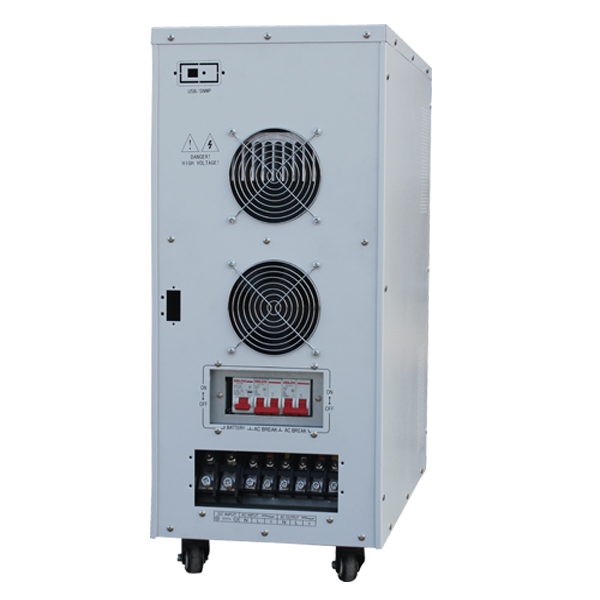

Model | HI-15KW/192V | HI-15KW/240V | |
Rated power | 15KW | ||
Peak power | 45KW | ||
Nominal battery voltage | 192VDC | 240VDC | |
Input | DC input range | 168V-256VDC | 210V- 320VDC |
AC Mains input range | 165-265VAC(220VAC) | ||
AC input frequency | 50Hz: 45-65Hz/60Hz: 55-65Hz±0.5Hz(50Hz/60Hz automatic recognition) | ||
Protection | Low battery alarm | 164.8VDC | 206VDC |
Low battery protection | 160VDC | 200VDC | |
High battery alarm | > 256VDC | > 320VDC | |
High battery protection | 264VDC | 330VDC | |
Overload protection | 120% | ||
High temperature | Built-in temperature real time sensor, ≥85°C alarm, ≥90°C automatic shutdown | ||
Short circuit protection | Yes | ||
Output | efficiency | >85% | |
Output voltage | (DC battery mode)220VAC±5% ; 110VAC±5% | ||
Output frequency | (DC battery mode)60/50Hz± 1% | ||
Output wave form | Pure sine wave | ||
Output voltage | (AC mains mode) 220/230/240VAC± 5% output | ||
AC mains mode | AC mains > 170VAC±5% switch to DC battery mode, AC mains > 180VAC±5% return to AC mains mode; | ||
AC mains > 275VAC±5% switch to DC battery mode, AC mains > 255VAC±5% return to AC mains mode; | |||
The above is for 220V output for reference | |||
Output frequency | (AC mains mode)automatic tracing from AC input | ||
Other | Transfer time | Built-in AC bypass replay (4ms) | |

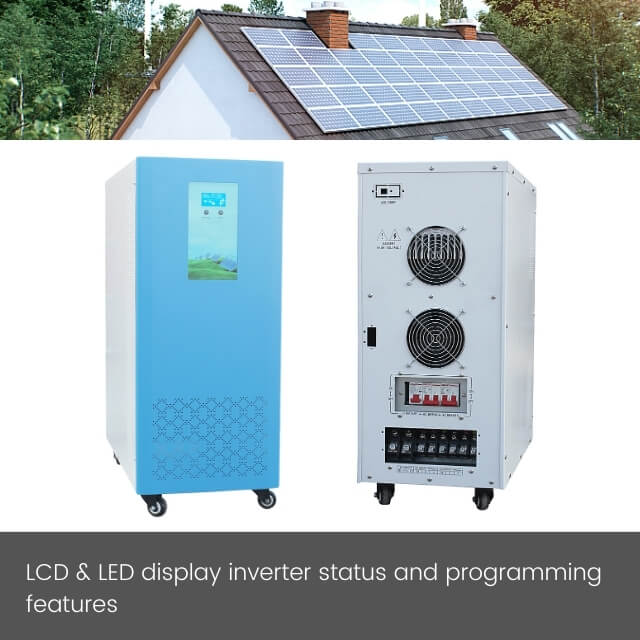

Display | LCD Display with function buttons | ||
Cooling system | Intelligent cooling fan control system <42°C slow fan, >45°C fast fan | ||
AC Charger | battery types mode | Gel, AGM, Li-ion, LiFePo4 battery, customized | |
AC charging voltage | 224V - 288VDC | 280V - 320VDC | |
AC charging current | 0-30A:5A/10A/20A/30A 4 stages charging current adjustable | ||
3 Stages charging | Boost charging, direct charging, float charging | ||
AC over charge protection | > 264VDC | > 330VDC | |
Communication | RS-232/USB/SNMP(additional) | ||
Environment | Temperature | -10~+40°C | |
Humidity | <95% | ||
Appearance | Product size | 690*360*870mm(L*W*H) | |
Packing size | 760*430*830mm | ||
Net weight | 108kg | ||
Gross weight | 130kg |
