3.5KW 5.5KW hybrid solar inverter with 100A MPPT controller working without battery

3.5KW 5.5KW hybrid solar inverter with 100A MPPT. It can works for solar power first without battery power to optimize battery lifespan. Wifi & GPRS is available for IOS/Android to monitor your system.

  • Pure sine wave solar inverter
  • Use solar power first without using battery power
  • Output power factor 1.0
  • High PV input voltage range(120~500VDC)
  • Inverter running without battery
  • Built-in 100A MPPT solar charger
  • Smart battery charge design to optimize battery life

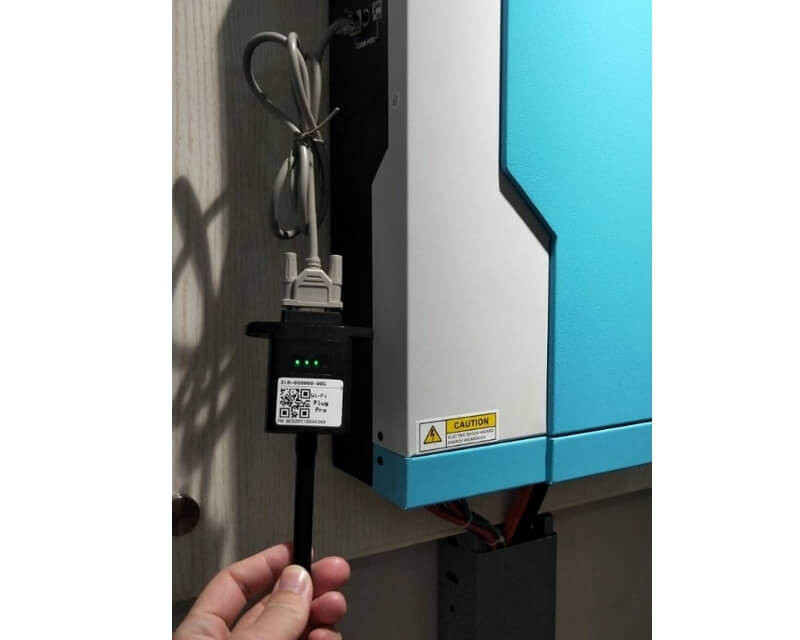

  • Wifi&GPRS available for IOS and android
  • Built-in anti-dusk kit for harsh environment





Model MPS-V 3500W-PLUS MPS-V 5500W-PLUS
Rated Power 3500VA/3500W 5500VA/5500W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(for personal computers)
90-280VAC(for home appliances)
Frequency Range 50Hz/60Hz (Auto-sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC±5%
Surge power 7000VA 11000VA
Efficiency(Peak) PV to INV 97%
Efficiency(Peak) BAT to INV 94%
Transfer Time 10ms (for personal computers)
20ms (for home appliances)
Wave form Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 33VDC 63VDC
Maximum charge current 80A 80A
SOLAR CHARGER
MAX.PV Array Power 5000W 6000W
MPPT Range@ Operating Voltage 120-450VDC
Maximum PV Array Open Circuit Voltage 500VDC
Maximum Charging Current 100A
Maximum Efficiency 98%
PHYSICAL
Dimension.D*W*H(mm) 440*300*100
Net Weight (kgs) 11kg 12kg
Communication Interface USB/RS232(Standard) GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C



Model MPS-V 3500W-PLUS MPS-V 5500W-PLUS
Rated Power 3500VA/3500W 5500VA/5500W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(for personal computers)
90-280VAC(for home appliances)
Frequency Range 50Hz/60Hz (Auto-sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC±5%
Surge power 7000VA 11000VA
Efficiency(Peak) PV to INV 97%
Efficiency(Peak) BAT to INV 94%
Transfer Time 10ms (for personal computers)
20ms (for home appliances)
Waveform Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 33VDC 63VDC
Maximum charge current 80A 80A
SOLAR CHARGER
MAX.PV Array Power 5000W 6000W
MPPT Range@ Operating Voltage 120-450VDC
Maximum PV Array Open Circuit Voltage 500VDC
Maximum Charging Current 100A
Maximum Efficiency 98%
PHYSICAL
Dimension.D*W*H(mm) 440*300*100
Net Weight (kgs) 11kg 12kg
Communication Interface USB/RS232(Standard) GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C

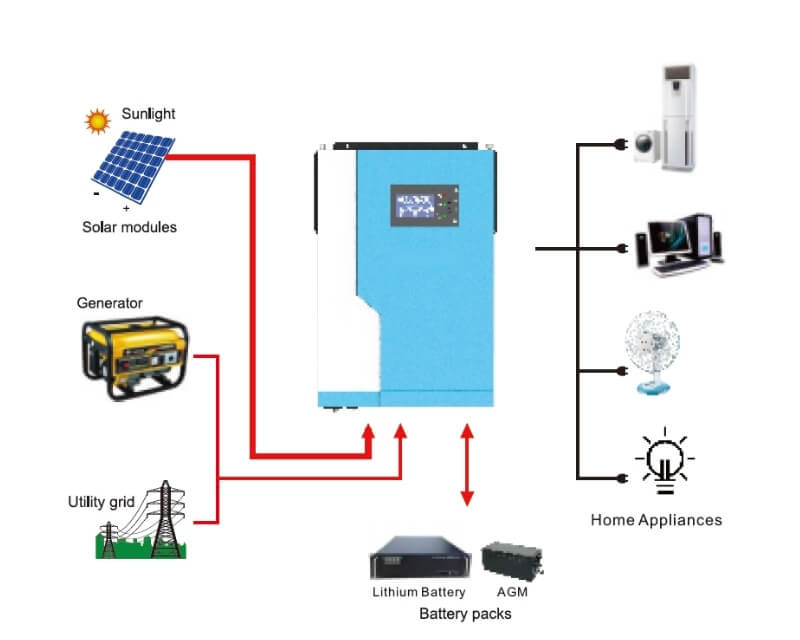

Home solar power system,

Telecom solar power system

RV solar power system

solar system for farm
